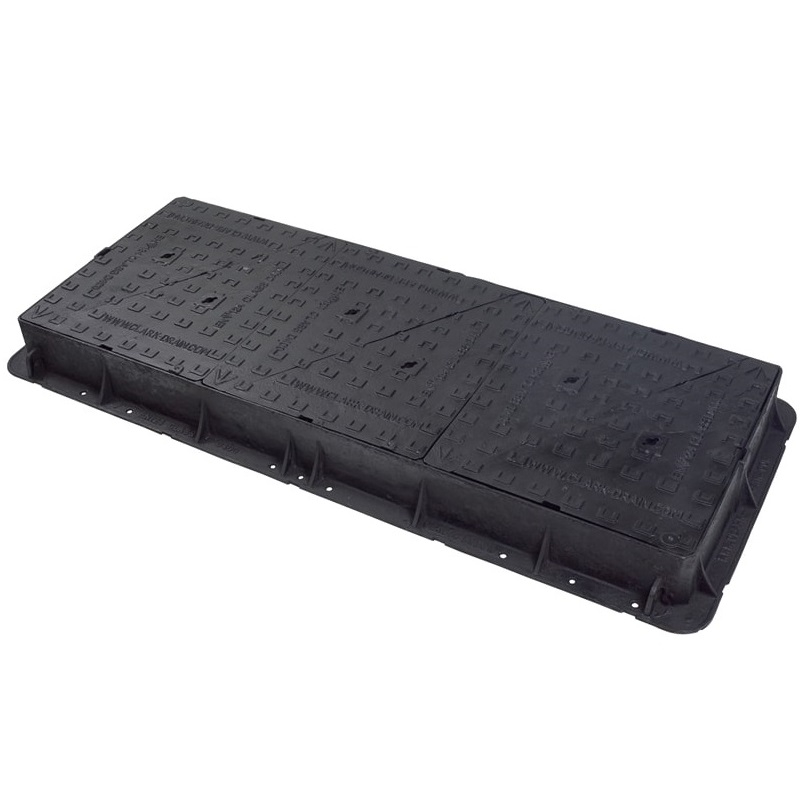

DISCON - Clark Drain D400 Cast Iron Manhole Cover & Frame For Carriageways - 1800mm x 675mm x 150mm

Code:
CD 694AH KMD
Free UK Delivery

This Clark Drain Cast Iron Manhole Cover and Frame is perfect for carriageways and highways and is D400 classified to withstand 40-tonne test loads. The triple double-triangular cover and frame with a solid flange are made from ductile iron and coated in black bitumen, suited ... Read More

Create a wishlist

"Quick and easy from order to door"

lisa goncalves

Description

This Clark Drain Cast Iron Manhole Cover and Frame is perfect for carriageways and highways and is D400 classified to withstand 40-tonne test loads. The triple double-triangular cover and frame with a solid flange are made from ductile iron and coated in black bitumen, suited to use with a CD 552 lifting key.

Features & Benefits: DISCON - Clark Drain D400 Cast Iron Manhole Cover & Frame For Carriageways - 1800mm x 675mm x 150mm

  • Perfect for carriageways and highways
  • D400 classified to withstand 40-tonne test loads
  • Triple double-triangular cover and solid flange frame
  • Coated in black bitumen
  • Suited to use with a CD 552 lifting key
  • 1800mm x 675mm Clear Opening
  • 1940mm x 820mm x 150mm External Dimensions

Standards & Certification

  • Conforms to BS EN124 1994
  • BSI Kitemark Certified
  • HA104/09 (Low risk areas) compliant

Dimensions

Length
900mm
1200mm
1800mm
Depth
150mm
Width
600mm
675mm
900mm

Details

Material
Cast Iron
Product Type
Manhole Cover and Frame
Weight Class
D400
Profile
Solid Top
Internal Dimensions
1800mm x 675mm
Use Location
High Traffic
Highways
Main Roads
Public Car Parks
Load-Bearing Strength
40 Tonnes
