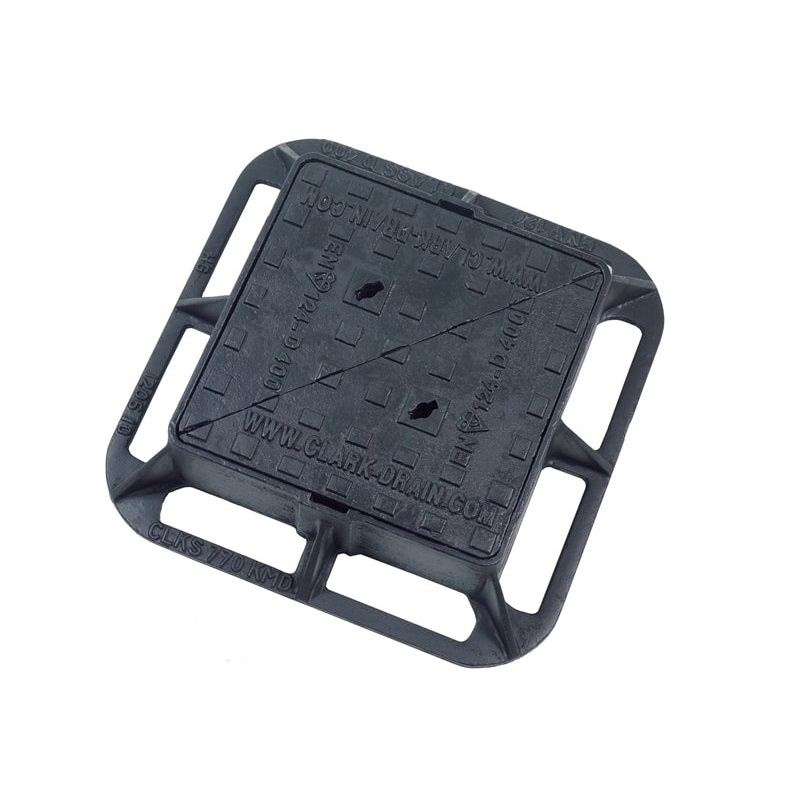

Clark Drain D400 Cast Iron Manhole Cover and Frame 300mm x 300mm x 100mm

Code:
CD 770 KMD

This Clark Drain Cast Iron Manhole Cover and Frame is a dependable addition to your estate or commercial area infrastructure. Engineered from premium Spheroid Graphite Iron Grade EN-GJS-500-7 to BS EN 15563:2011, this D400 Double Tri-Manhole Cover is built to endure, with a su...Read More

£110.00 Incl. VAT
Oops! Please select from the options
Est. Delivery: TBC
Shipping costs displayed in basket.
We can let you know when this product is back in stock.

This product is proving to be very popular and has unfortunately sold out.

Enter your email below and we'll notify you as soon as this product is back in stock:

For delivery Thursday, Apr 25th - order in:
days hrs mins secs
Subject to stock availability, if products on a 24 hours service are ordered alongside products NOT on a 24 hours service, this may delay your whole order.
Create a wishlist

"Ordered some drainage pipes to mak…"

Miriam May

Description

This Clark Drain Cast Iron Manhole Cover and Frame is a dependable addition to your estate or commercial area infrastructure. Engineered from premium Spheroid Graphite Iron Grade EN-GJS-500-7 to BS EN 15563:2011, this D400 Double Tri-Manhole Cover is built to endure, with a substantial load rating of 40 tonnes.

Certified by BSI Kitemark to meet the stringent standards of BS EN124:1994 (copy certificate available on request), this cover boasts a non-rock three-point suspension for added stability. Equipped with integral lifting keyholes compatible with CD 556 lifting keys (available separately), it guarantees hassle-free maintenance. This product features a temporary Bitumen-based paint coating to BS 3416, offering reliable protection against wear and tear.

Features & Benefits: Clark Drain D400 Cast Iron Manhole Cover and Frame 300mm x 300mm x 100mm

  • D400 load rating (40 tonnes)
  • Non-rock three-point suspension
  • Integral lifting key holes, compatible with CD 556 lifting keys
  • Made from cast iron with a temporary bitumen-based paint coating
  • For use in estates and residential/commercial/light industrial areas
  • 5.4N/mm² frame pressure bearing area
  • 45+ Polished Skid-Resistance Value (PSRV)
  • 33kg overall weight and 18.5kg covers weight (pair)
  • 450mm x 450mm x 100mm external dimensions
  • 300mm x 300mm clear opening

Standards & Certification

  • Material Grade: Spheroid Graphite Iron Grade EN-GJS-500-7 to BS EN 1563: 2011
  • BSI Kitemark: Certified to BS EN124 2015
  • Temporary Bitumen-based paint coating: to BS 3416: 1993

Please note:

  • The lifting keys are sold separately.
  • This product is not suitable for carriageway use.

Dimensions

Length 300mm Depth 100mm Width 300mm

Details

Material Cast Iron Product Type Manhole Cover and Frame Shape Square Weight Class D400
Profile Solid Top Internal Dimensions 300mm x 300mm External Dimensions 450mm x 450mm Use Location High Traffic
Highways
Main Roads
Public Car Parks
Load-Bearing Strength 40 Tonnes
