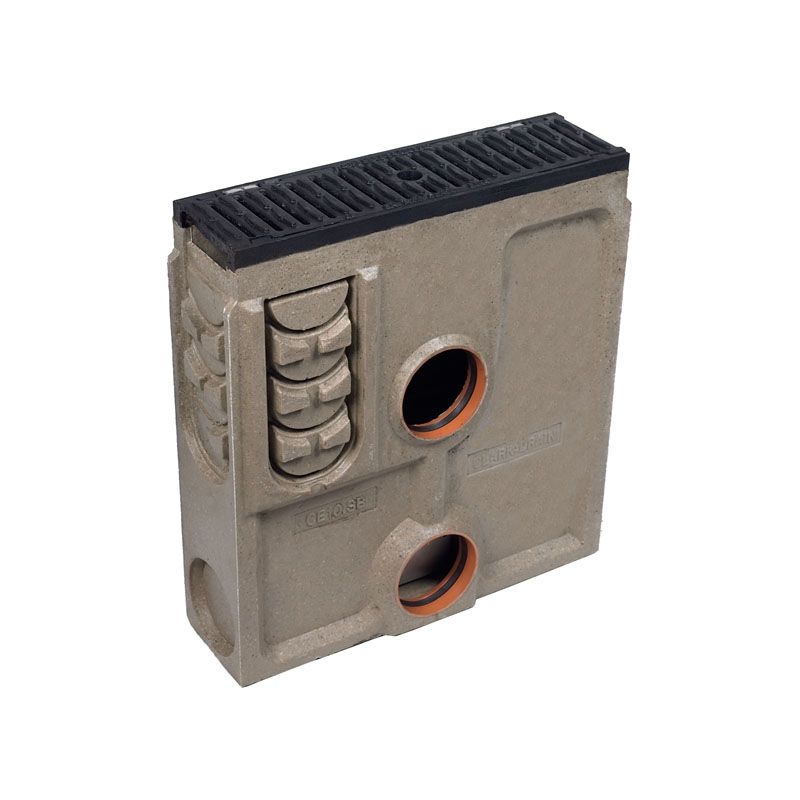

Clark Drain E600 Heelguard Channel Drain Sump 500mm x 142mm x 550mm

Code:
CD E10-SBC-28
Free UK Delivery

This item is out of stock and not available to purchase.

External Dimensions: 500 (L) x 142 (W) x 550 (H) Clear Opening: 475 (L) x 100 (W) x 536 (H) Channel & Grate: Polymer concrete with ductile iron edge rails. Multiple knockout sections and blanking caps offering a variety of inlet and outlet options. 1x 500mm ductile iron slott...Read More

Create a wishlist

"all good"

Judith

Description

External Dimensions: 500 (L) x 142 (W) x 550 (H)
Clear Opening: 475 (L) x 100 (W) x 536 (H)

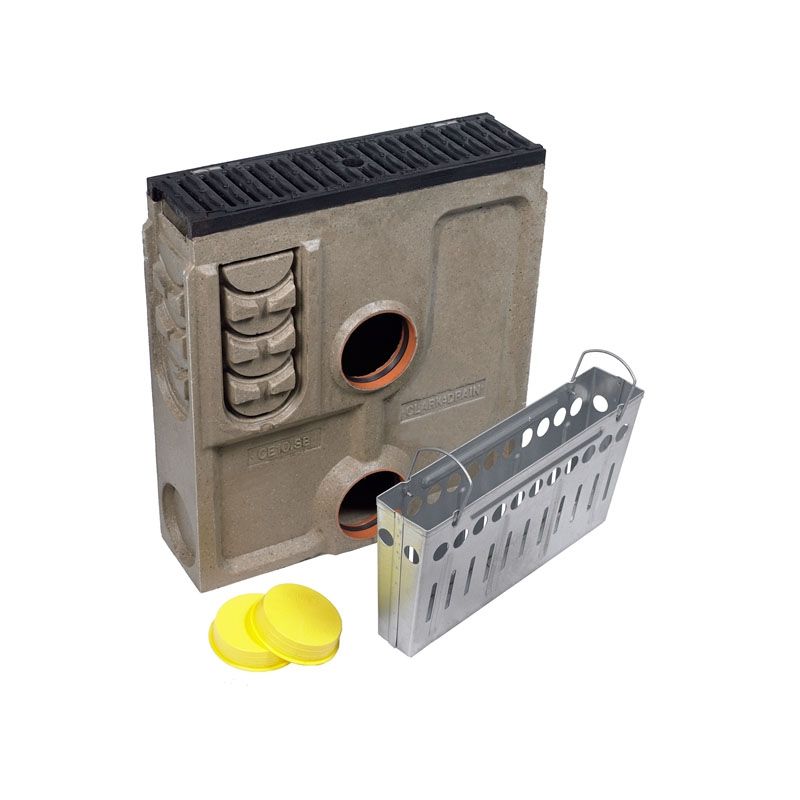

Channel & Grate: Polymer concrete with ductile iron edge rails. Multiple knockout sections and blanking caps offering a variety of inlet and outlet options. 1x 500mm ductile iron slotted grate.
Finish: Ductile iron grates are coated with black bitumen.
Locking: Catchlock clips fitted.
Mud Basket: Galvanised steel.
Multi-Directional: Fits in-line with channel run or at 90 degree angle.
Suitable for: CD E10-28 Channel.


Dimensions

Length 500mm Depth 550mm Width 142mm

Details

Material Ductile Iron Weight Class E600
