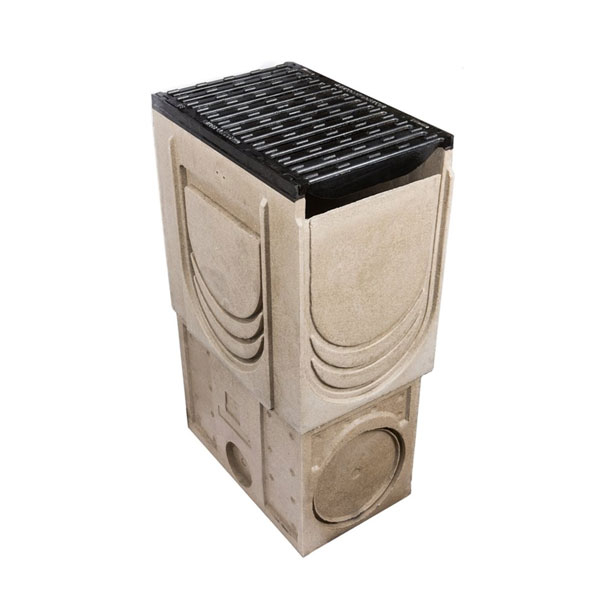

Clark Drain F900 Slotted Channel Drain Sump 520mm x 350mm x 875mm

Code:
CD F30-SBC-63
Free UK Delivery

This item is out of stock and not available to purchase.

External Dimensions: 520 (L) x 350 (W) x 875 (H) Clear Opening: 500 (L) x 300 (W) x 852 (H)Channel & Grate: Polymer concrete with ductile iron edge rails. Multiple knockout sections offering a variety of inlet and outlet options. 1x 500mm ductile iron slotted grate. Finish...Read More

Create a wishlist

"Easy to order and very fast delive…"

Stephen Martin

Description

External Dimensions: 520 (L) x 350 (W) x 875 (H)
Clear Opening: 500 (L) x 300 (W) x 852 (H)
Channel & Grate: Polymer concrete with ductile iron edge rails. Multiple knockout sections offering a variety of inlet and outlet options. 1x 500mm ductile iron slotted grate.
Finish: Ductile iron grates and edge rails are coated with black bitumen.
Locking: Catchlock clips fitted.
Mud Basket : Galvanised steel.
Multi-Directiona: Fits in-line with channel run or at 90 degree angle.
Suitable for: CD F30-63 Channel.

Dimensions

Length 500mm Depth 875mm Width 337mm

Details

Material Concrete Weight Class F900 Grate Material Ductile Iron
