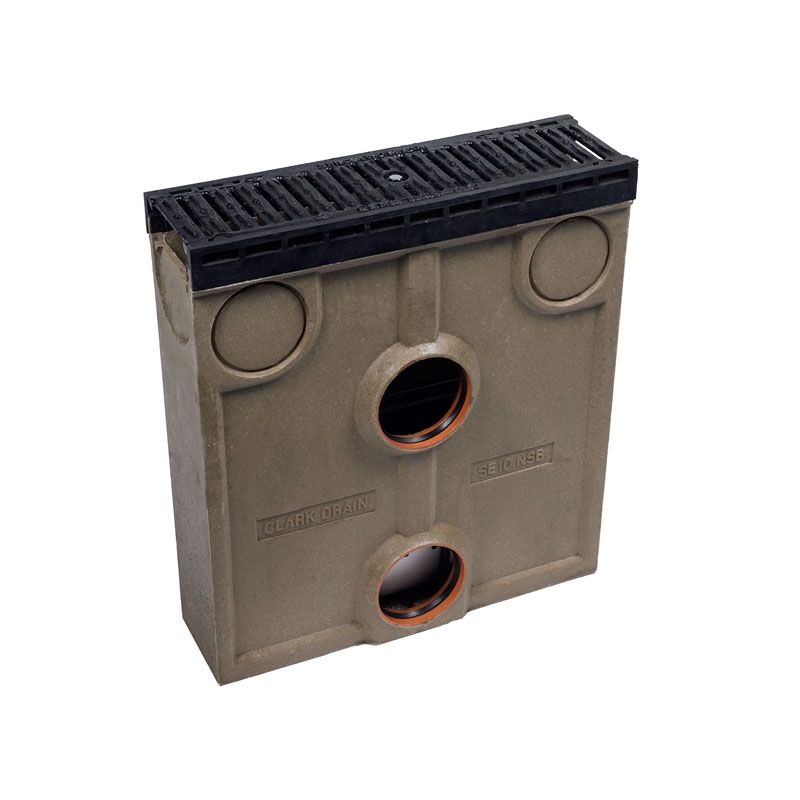

Channel Drain Silt Box & Iron Grate 500mm x 147mm x 550mm - C250

Code:
CD 438
Free UK Delivery

This item is out of stock and not available to purchase.

External Dimensions: 500 (L) x 147 (W) x 550 (H) Clear Opening: 475 (L) x 100 (W) x 535 (H) Description Grating: Ductile iron, narrow slot, black bitumen coating. Edging: Glass filled Nylon Base: Polymer concrete. Multiple knockout sections and blanking caps offering a vari...Read More

Create a wishlist

"Prompt and efficient service"

Brian Arnett

Description

External Dimensions: 500 (L) x 147 (W) x 550 (H)
Clear Opening: 475 (L) x 100 (W) x 535 (H)

Description

Grating: Ductile iron, narrow slot, black bitumen coating.
Edging: Glass filled Nylon
Base: Polymer concrete. Multiple knockout sections and blanking caps offering a variety of inlet and outlet options.
Locking: Locking bar & bolt fitted.

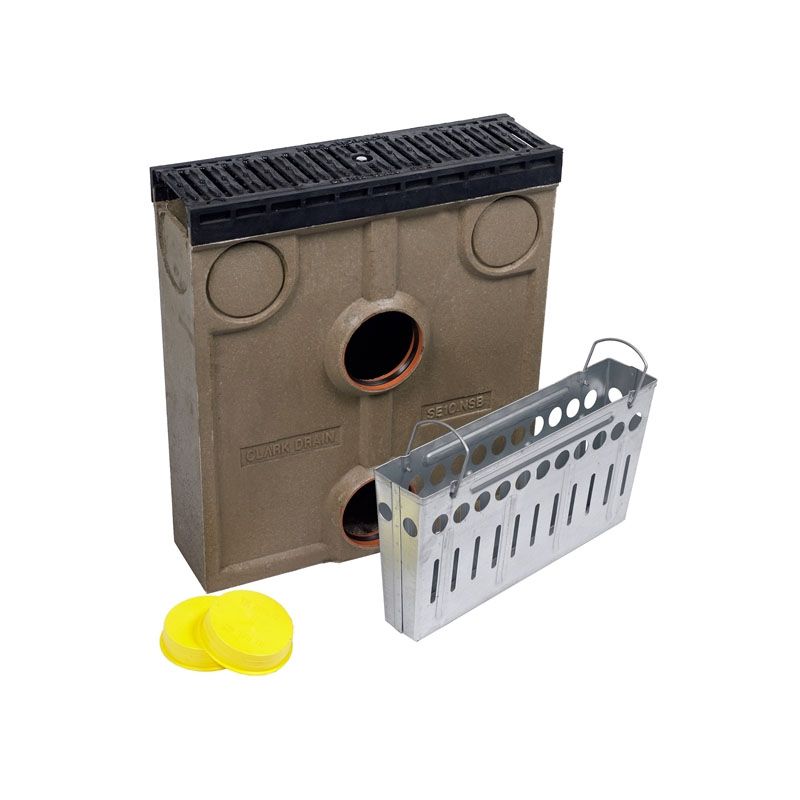

Mud Basket: Galvanised steel.
Multi-Directional: Fits in-line with channel run or at 90 degree angle.
Suitable for: CD 437 Channel

Dimensions

Length 500mm Depth 550mm Width 147mm

Details

Material Concrete Weight Class C250
