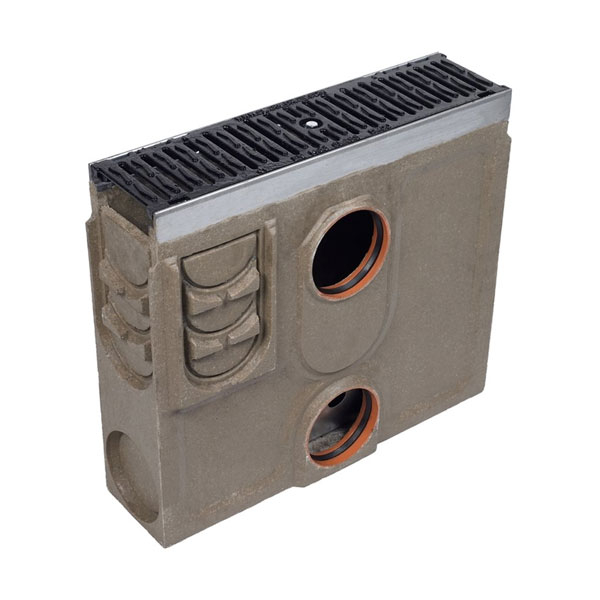

Clark Drain D400 Heelguard Channel Drain Sump 500mm x 135mm x 454mm

Code:
CD D10-SBG-27
Free UK Delivery

This item is out of stock and not available to purchase.

External Dimensions: 500 (L) x 135 (W) x 454 (D) Clear Opening: 475 (L) x 100 (W) x 440 (D) Channel & Grate: Polymer concrete with galvanised steel edge rails. Multiple knockout sections and blanking caps offering a variety of inlet and outlet options. Locking bar slots. ... Read More

Create a wishlist

"Highly Recommended"

Susan G

Description

External Dimensions: 500 (L) x 135 (W) x 454 (D)
Clear Opening: 475 (L) x 100 (W) x 440 (D)

Channel & Grate: Polymer concrete with galvanised steel edge rails. Multiple knockout sections and blanking caps offering a variety of inlet and outlet options. Locking bar slots. 1x 500mm ductile iron heelguard narrow slot grate.
Finish: Ductile iron grates are coated with black bitumen.
Locking: Locking bar & bolt fitted.
Mud Basket: Galvanised steel.
Multi-Directional: Fits in-line with channel run or at 90 degree angle.
Suitable for: CD D10-27 Channel.

Applications

  • Building Entrances
  • Service Stations
  • Car Parks
  • Pedestrian Precincts
  • Kerbside Drainage
  • Slow Moving Light Commercial Vehicles

Dimensions

Length
500mm
Depth
454mm
Width
135mm

Details

Material
Concrete
Ductile Iron
Weight Class
D400
Grate Design Features
Heelguard Grate
Grate Material
Ductile Iron
