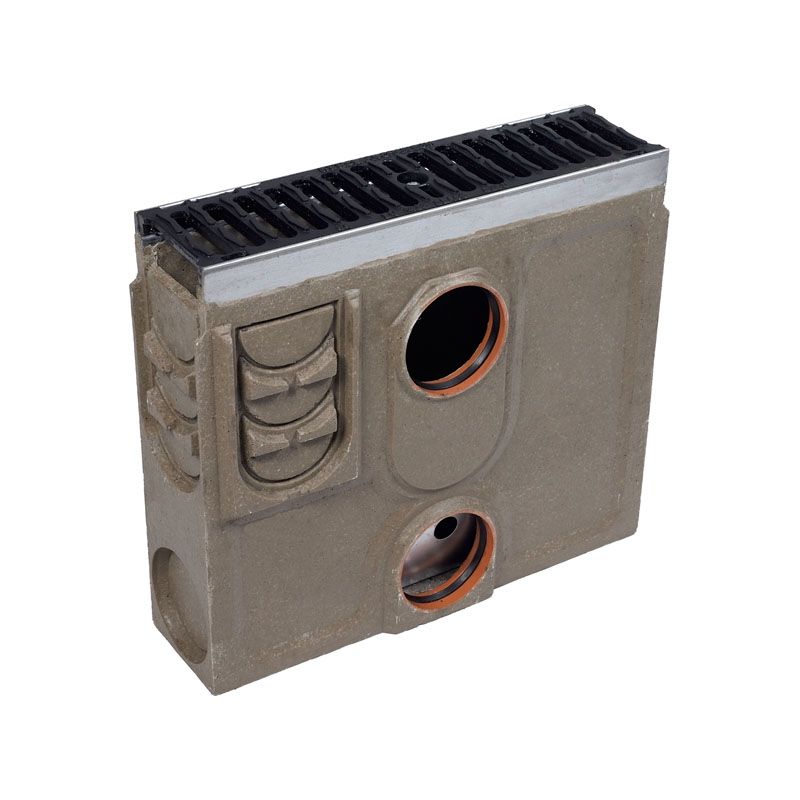

Channel Drain Silt Box & Iron Grate 500mm x 131mm x 454mm - C250

Code:
CD C10-SBG-20
Free UK Delivery

External Dimensions: 500 (L) x 131 (W) x 454 (H) Clear Opening: 475 (L) x 100 (W) x 440 (H)Channel & Grate: Polymer concrete with galvanised steel edge rails. Multiple knockout sections and blanking caps offering a variety of inlet and outlet options. Locking bar slots. 1 ...Read More

Create a wishlist

"A great company to buy from"

Jonathan

Description

External Dimensions: 500 (L) x 131 (W) x 454 (H)
Clear Opening: 475 (L) x 100 (W) x 440 (H)
Channel & Grate: Polymer concrete with galvanised steel edge rails. Multiple knockout sections and blanking caps offering a variety of inlet and outlet options. Locking bar slots. 1 x 500mm ductile iron slotted grate.
Finish: Ductile iron grates are coated with black bitumen.
Locking: Locking bar & bolt fitted.
Mud Basket: Galvanised steel.
Multi-Directional: Fits in-line with channel run or at 90 degree angle.
Suitable for: CD C10-20 Channel.

Dimensions

Length 500mm Depth 454mm Width 131mm

Details

Material Concrete
Ductile Iron
Weight Class C250 Grate Design Features Slotted Grate Grate Material Ductile Iron
