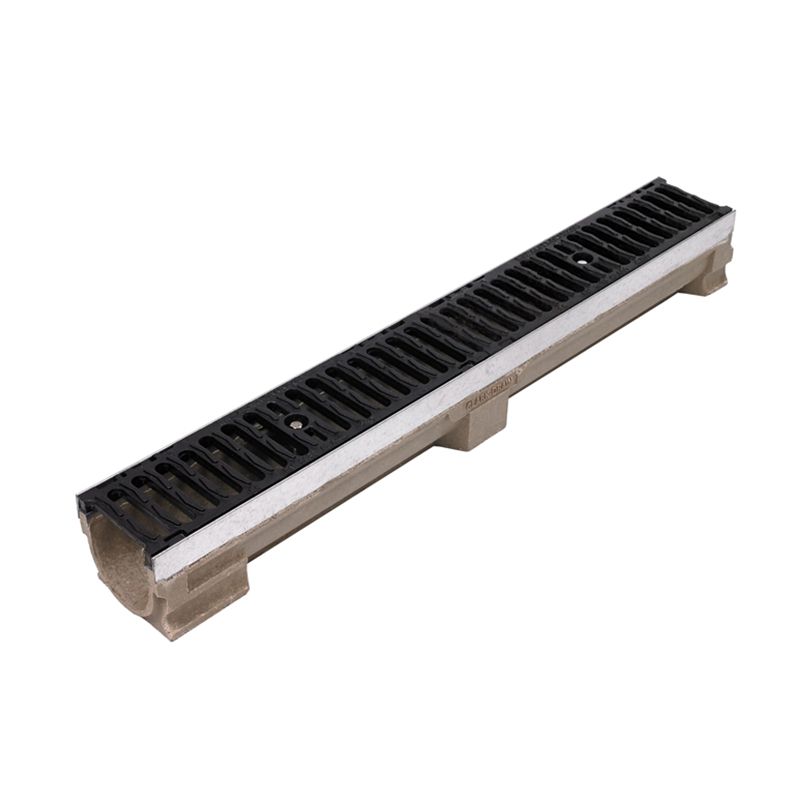

Channel Drain Ductile Iron Grating 1000mm x 131mm x 247mm - D400

Code:
CD D10-L20G-21
Free UK Delivery

This item is out of stock and not available to purchase.

External Dimensions: 1000 (L) x 131 (W) x 247 (H) Clear Opening: 1000 (L) x 100 (W) x 232 (H)Channel & Grate: Polymer concrete with galvanised steel edge rails. Knockout section for vertical outlet (optional). Locking bar slots. 2 x 500mm ductile iron slotted grates. Finish: D... Read More

Create a wishlist

"Trustworthy"

Mark Cranham

Description

External Dimensions: 1000 (L) x 131 (W) x 247 (H)
Clear Opening: 1000 (L) x 100 (W) x 232 (H)
Channel & Grate: Polymer concrete with galvanised steel edge rails. Knockout section for vertical outlet (optional). Locking bar slots. 2 x 500mm ductile iron slotted grates.
Finish: Ductile iron grates are coated with black bitumen.
Locking: 2 locking bars & bolts fitted.

Applications

  • Building Entrances
  • Service Stations
  • Car Parks
  • Pedestrian Precincts
  • Kerbside Drainage
  • Slow Moving Light Commercial Vehicles

Dimensions

Length
1m
Depth
247mm
Width
131mm

Details

Material
Ductile Iron
Weight Class
D400
