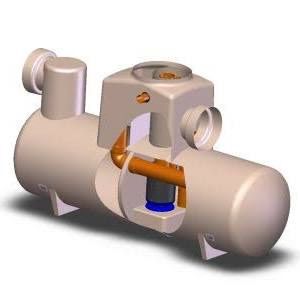

Bypass Separator 2300L with Outdoor Alarm 375mm Outlet - Klargester

Code:
NSBE020OUT
Brand:
Free UK Delivery

Dimensions Flow : 20l/s Peak Rate Flow : 200l/s Drainage Area m2 : 11111 Storage L of Oil : 2000 Storage L of Silt : 300 Length : 3893mm  Diameter : 1220mm Access Shaft : 750mm  Base to Inlet : 1450mm Base to Outlet : 1350mm  Standard Fall : 1... Read More

Create a wishlist

"Delivery of summerhouse"

Angela Kneller

Description

Dimensions
Flow : 20l/s
Peak Rate Flow : 200l/s
Drainage Area m2 : 11111
Storage L of Oil : 2000
Storage L of Silt : 300
Length : 3893mm
Diameter : 1220mm
Access Shaft : 750mm
Base to Inlet : 1450mm
Base to Outlet : 1350mm
Standard Fall : 100mm
Min Inlet Invert : 700mm
Pipe work Suited : 375

Description
Bypass separators fully treat all flows generated by rainfall rates of up to 6.5mm/hr. This covers over 99% of all rainfall events. Flows above this rate are allowed to bypass the separator. These separators are used when it is considered an acceptable risk not to provide full treatment for high flows, for example where the risk of a large spillage and heavy rainfall occurring at the same time is small.
