Becker Tunnels Septic Soakaway Tunnel - 1205mm x 800mm x 630mm

Code:
BECK/SEP/03
Brand:
Becker Tunnels

This item is out of stock and not available to purchase.

View alternative products

Becker Tunnels introduces the Sustainable Soakaway Module for the soakage to ground of domestic effluent, where mains drainage is unavailable. This innovative concept (Pat. GB1803238) redefines the role of a drainage field, providing the customer with a choice when replacing a... Read More

View full product details
Ask a question about this product
Create a wishlist

"Good delivery."

Mr A Seal
Description Specification Downloads Q&A

Description

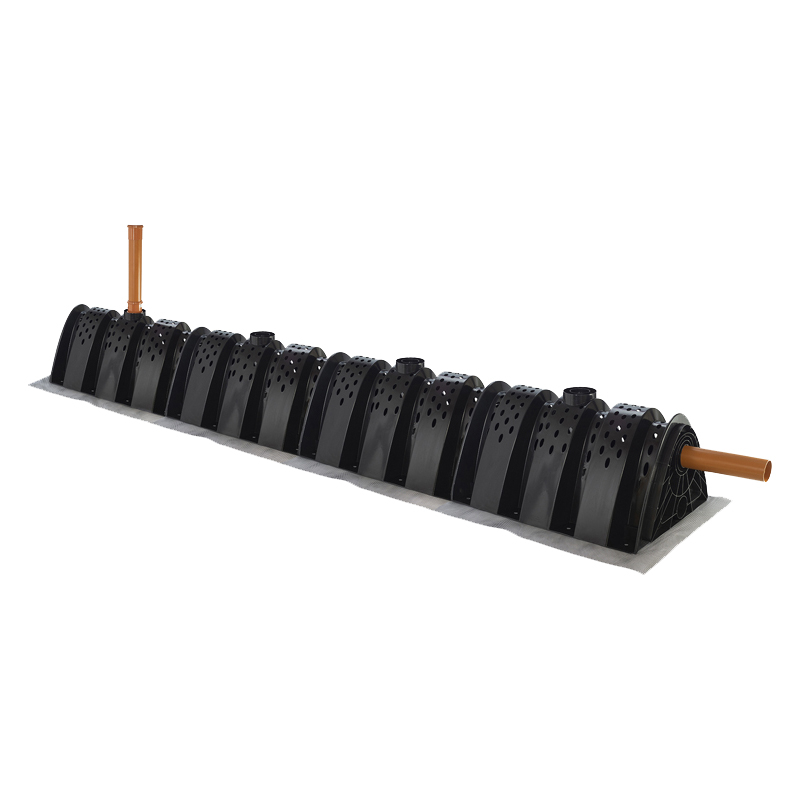

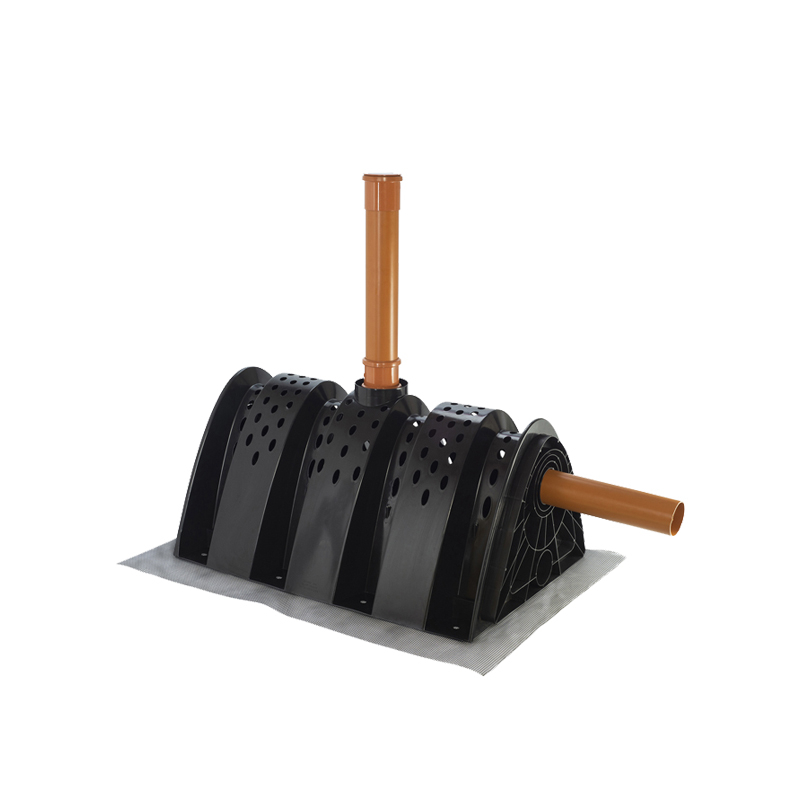

Becker Tunnels introduces the Sustainable Soakaway Module for the soakage to ground of domestic effluent, where mains drainage is unavailable.

This innovative concept (Pat.GB1803238) redefines the role of a drainage field, providing the customer with a choice when replacing a failed drainage system. The Becker Tunnel cleaning module is positioned at the downstream end of a new minimum 4 module field. It has a cleaning port which provides access for both high pressure water jetting together and suction removal, enabling a soakaway to be accessed every 5 years to remove the biomat build up, a chemical reaction which would require a trenched version to be abandoned completely.

Becker Tunnels Septic Soakaway Tunnel Installation

  • Minimum 3.0m from existing drainage field and 15.0m from buildings.
  • Minimum depth of cover 250mm for pedestrian and 750mm for domestic vehicle loads.
  • Excavate 1.0metre wide trench to suitable depth and sufficient length for 4 units minimum.
  • Install on 20mm pea shingle floor 100mm depth with downstream fall to cleaning module.
  • Lay 1.0metre wide 10mm plastic mesh to floor.
  • Connect tunnels to each other using their unique interlocking flanges.
  • Wrap outside surfaces of tunnels with filtering geo-textile.
  • Backfill with pea shingle to mid level of tunnels.
  • Reinstate.

Specifications

Material: Recycled Polypropylene/Polyethylene
Size: 1205mm x 800mm x 630mm
Capacity: 320 Litres
Tunnels & End Plates have 110mm diameter female sockets.

Please note: end plates are not included.

There are no product specifications to show.

Downloads

There are no product downloads to show.

Questions & Answers

There are currently no questions for this product.
