Becker Tunnels Septic Soakaway with Ecoclean Module

Name: Becker Tunnels Septic Soakaway with Ecoclean Module
Brand: Becker Tunnels
SKU: BECK/SEP/04
Price: 44.34 GBP
Availability: LimitedAvailability

Code:

BECK/SEP/04

Brand:

Becker Tunnels

This item is out of stock and not available to purchase.

View alternative products

Becker Tunnels introduces a Sustainable Soakaway Module for the soakage to ground of domestic effluent from treatment plants, where mains drainage is unavailable. Widely used in Europe as drainage fields for sewage treatment plants this now provides the customer with a choice...Read More

View full product details

View questions about this product

Create a wishlist

Raf

Description

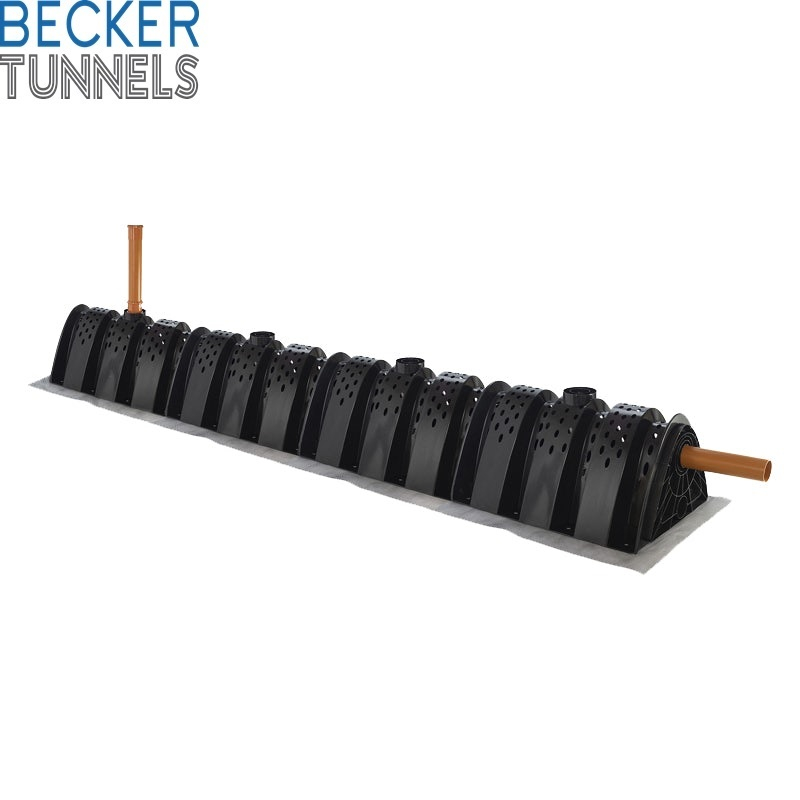

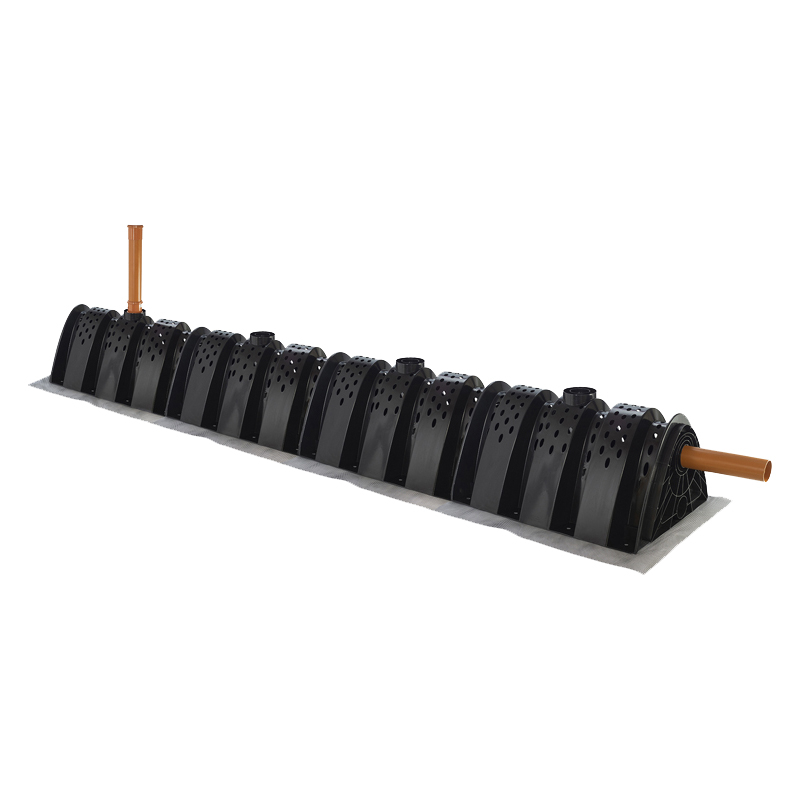

Becker Tunnels introduces a Sustainable Soakaway Module for the soakage to ground of domestic effluent from treatment plants, where mains drainage is unavailable.

Widely used in Europe as drainage fields for sewage treatment plants this now provides the customer with a choice when replacing a failed drainage system.

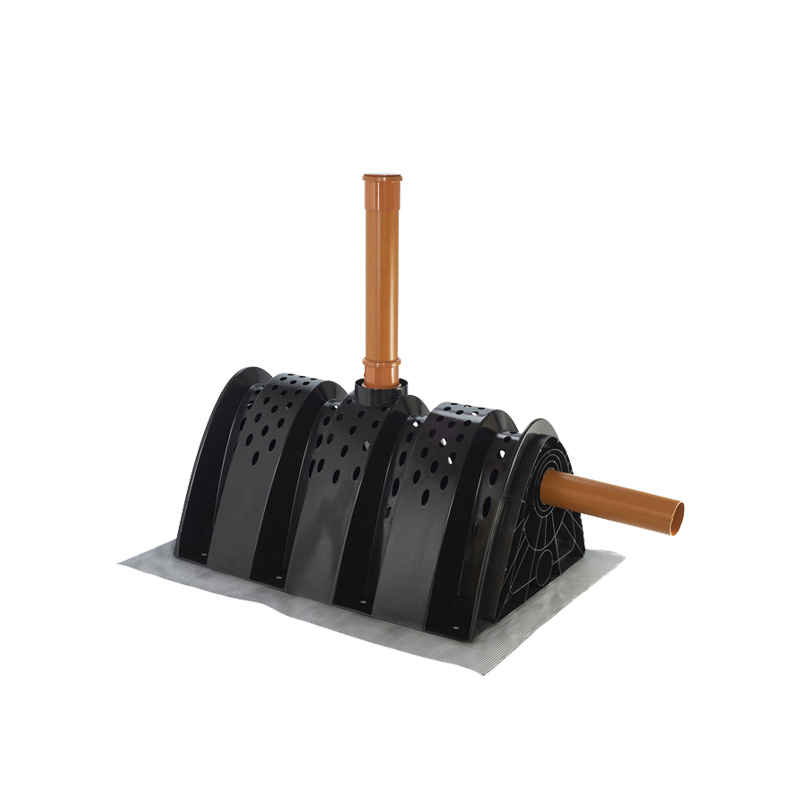

The Ecoclean Module is positioned at the downstream end of a new minimum 4 module field. It has a cleaning port which provides access for both high pressure water jetting together and suction removal, enabling a soakaway to be accessed every 5 years to remove the biomat build up, a chemical reaction which would require a trenched version to be abandoned completely.

Minimum 3.0m from existing drainage field and 15.0m from buildings.
Minimum depth of cover 250mm for pedestrian and 750mm for domestic vehicle loads.
Excavate 1.0metre wide trench to suitable depth and sufficient length for 4 units minimum.
Install on 20mm pea shingle floor 100mm depth with downstream fall to cleaning module.
Lay 1.0metre wide 10mm plastic mesh to floor.
Connect tunnels to each other using their unique male/female interlocking flanges.
Wrap outside surfaces of tunnels with filtering geo-textile.
Backfill with pea shingle to mid level of tunnels.
Reinstate.

Specifications

Material: Recycled Polypropylene/Polyethylene
Size: 1205mm x 800mm x 630mm
Capacity: 320 Litres
Maximum Loadings of 30 tonnes

Installation Depths
Pedestrian: 25cm and 10cm shingle base
Car and Light vans: 75cm and 15cm base
Lorries: 150cm and 25cm base
