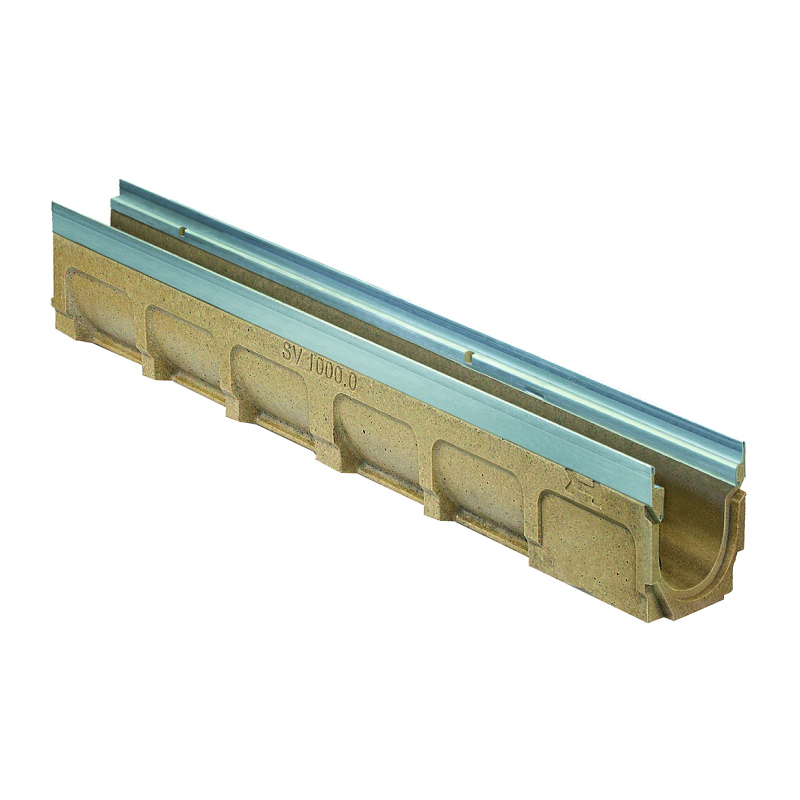

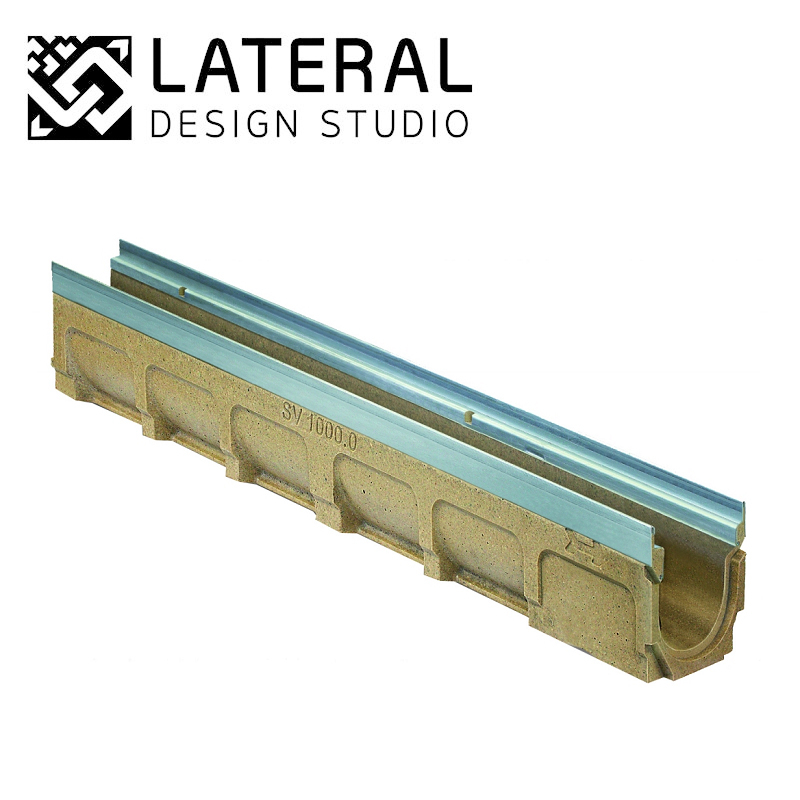

Aquascape Polyconcrete 125mm Galvanised Edge Channel Drain D400

Code:
M12-SV1-1000-150

This Aquascape Polyconcrete Channel Drain with a Galvanised Edge provides a durable and dependable framework for challenging channel drainage projects. Utilising a polyester resin construction, it is suitable for D400 load classes, further strengthened with galvanised steel ed...Read More

Create a wishlist

"The delivery was excellent"

Alan Howse

Description

This Aquascape Polyconcrete Channel Drain with a Galvanised Edge provides a durable and dependable framework for challenging channel drainage projects. Utilising a polyester resin construction, it is suitable for D400 load classes, further strengthened with galvanised steel edge rails and a U-shaped channel base.

This Aquascape Channel Drain is highly durable and ideal for pedestrian, domestic and car park installations for efficient and reliable drainage across its service life. The edge rails are embedded for added protection, with this model being compatible with a choice of stainless steel, cast iron or Jonite stone composite channel grates, which are available separately.

Features & Benefits: Aquascape Polyconcrete 125mm Galvanised Edge Channel Drain D400

  • Certified for up to D400 load classes
  • An excellent base for pedestrian, domestic, and car park applications
  • Efficient and reliable drainage across the service life
  • Sturdy steel edge rails and polyconcrete construction
  • U-shaped channel design for added stability
  • Dependable platform for channel drainage projects
  • 1000mm length x 133mm overall width x 150mm height

Please note:

  • Bolt locks are available on request for extra security and peace of mind. Please call for more information.

Dimensions

Length 1m Depth 150mm Width 133mm

Details

Material Concrete Product Type Channel Base Range Aquascape Load Rating D400
