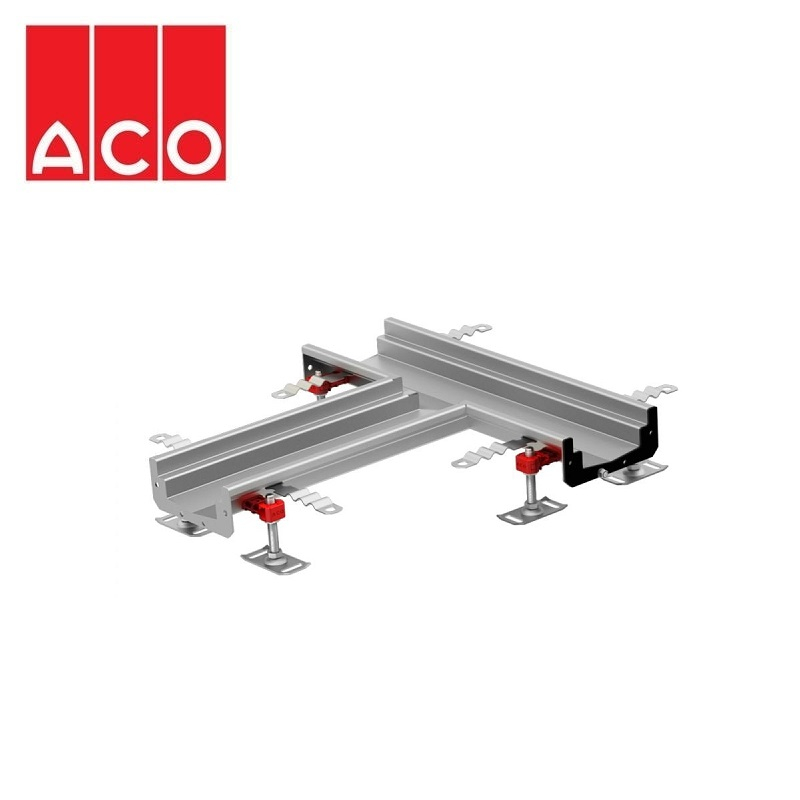

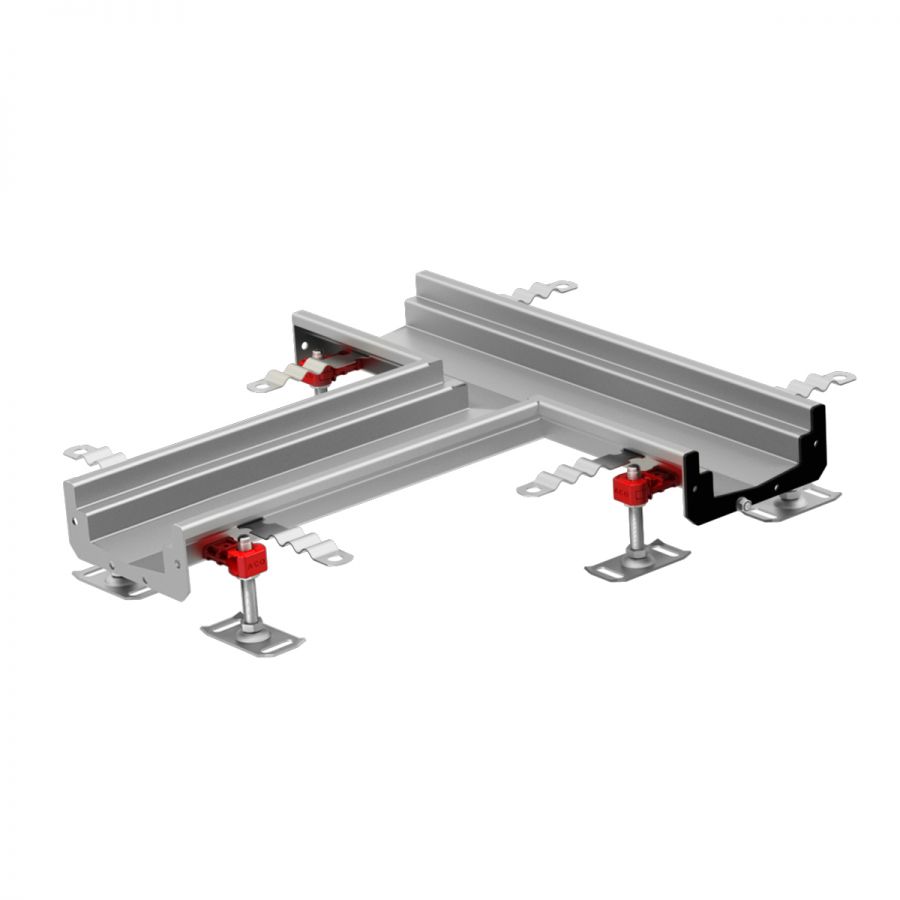

Internal Channel Drain 80mm Invert Branch Junction - ACO Modular 125

Code:
105223
Brand:

Made from 304-grade Stainless Steel, this Internal Invert Channel Drain Branch Junction is highly durable and watertight. ACO's Building Drainage Modular 125 range of stainless steel linear drainage has been additionally enhanced from the incredibly popular Modular Channel sys...Read More

£340.00 Incl. VAT
Oops! Please select from the options
Est. Delivery: 2-3 Working Days
Shipping costs displayed in basket.
We can let you know when this product is back in stock.

This product is proving to be very popular and has unfortunately sold out.

Enter your email below and we'll notify you as soon as this product is back in stock:

For delivery Wednesday, Apr 3rd - order in:
days hrs mins secs
Subject to stock availability, if products on a 24 hours service are ordered alongside products NOT on a 24 hours service, this may delay your whole order.
View Transport Policy

All delivery charges are included in the final shopping basket and are dependent on the products Scottish Highlands & the Islands where additional shipping charges will apply.

Please note that not all products will incur an additional delivery charge to the Scottish Highlands & the Islands – this is based on the costs from the manufacturer, distributor or courier providing shipping on our behalf. If your delivery address is in the Scottish Highlands and Islands, a member of our helpline team will contact you prior to processing your order should an additional delivery charge apply.

While we make every effort to ensure orders are delivered by the date required, we cannot guarantee availability from the manufacturer or the manufacturer's delivery schedules.

Any variation to web delivery date given will be advised to you by email or telephone. If we are unable to make delivery because access is not possible, we reserve the right to make a failed delivery charge.

Create a wishlist

"Found them very helpful"

Jean Williams

Description

Made from 304-grade Stainless Steel, this Internal Invert Channel Drain Branch Junction is highly durable and watertight. ACO's Building Drainage Modular 125 range of stainless steel linear drainage has been additionally enhanced from the incredibly popular Modular Channel system.

Produced in a state-of-the-art manufacturing plant, this channel drain branch junction can be fitted as part of your fully flexible stainless steel drainage system to deliver superior performance suitable for most applications off the shelf. With all the components you need for your installation, it comes complete with neoprene gasket and fixings, fixing tiles and levelling feet.

Features & Benefits: Internal Channel Drain 80mm Invert Branch Junction - ACO Modular 125

  • 304-grade stainless steel material
  • Excellent water tightness and durability
  • Complete with neoprene gasket, fixings, levelling feet and fixing ties
  • Load-bearing capacity
  • 93mm depth and 80mm invert
  • 639mm x 500mm lengths and 153mm width
  • 4.7kg weight

ACO has a standard range of components available from stock, offering an extensive choice of gratings, including unique optional grating security locks, available with loading class A15 to C250, a wide variety of constant depth and sloping invert channels and accessories and a vee-bottomed profiled channel for improved flow efficiency at low flow rates.

Standards & Certification

  • CE marking: meets the Essential Requirements of BS EN 1433
  • Drainage Channels for Vehicular and Pedestrian Areas: Fully tested and classified to BS EN 1433

Please note:

  • This product is not suitable for suspended timber floors.
  • The Modular 125 channel system is an off-the-shelf, stocked and manufactured in Grade 304 Stainless Steel. It is available in 316-grade stainless steel only to order.
  • The Channel Grating must be bought separately

Dimensions

Length 500mm
639mm
Width 153mm

Details

Material Stainless Steel Product Type Channel Base Invert 80mm Application Kitchen
Range Modular 125
