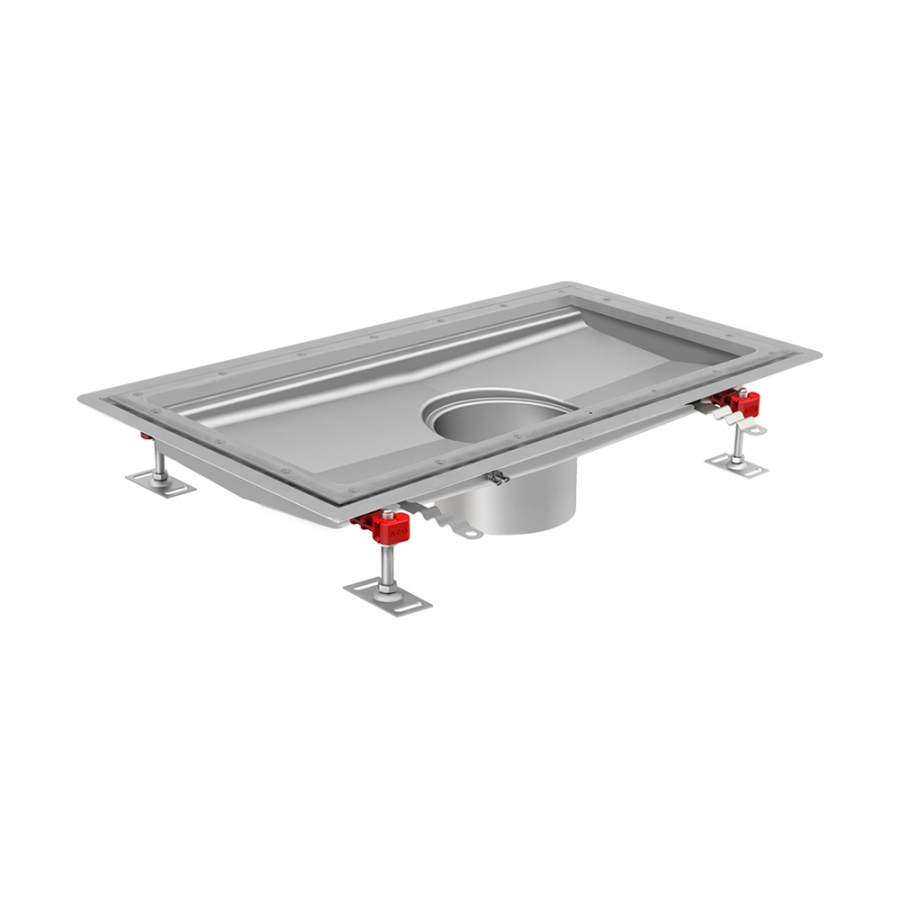

ACO HygieneFirst Kitchen Tray Vinyl Edge 550mm x 520mm x 65mm Channel 200mm Outlet

Code:
434431
Brand:
Free UK Delivery

ACO’s HygieneFirst drainage systems fulfils the stringent hygienic requirements to minimise harmful bacteria and pathogen contamination of food arising from the drainage elements. This is done by applying relevant hygiene design principles reserved for food contact surfa...Read More

Create a wishlist

"Quick easy order process"

Manjit Kaur

Description

ACO’s HygieneFirst drainage systems fulfils the stringent hygienic requirements to minimise harmful bacteria and pathogen contamination of food arising from the drainage elements.

This is done by applying relevant hygiene design principles reserved for food contact surfaces by the implementation of BS EN 1672, BS EN ISO 14159 and EHEDG Document 8 requirements to drainage element design.

The vinyl edge channel drain is to be used on vinyl floors.

Features and Benefits

  • Manufactured from 304 grade stainless steel
  • Waterproof membrane connected to gully body
  • Applies the hygienic design principles normally reserved for food contact surfaces via BS EN 1672
  • Design enables quick and easy cleaning
  • Concrete fixing anchors

Uses

  • Food and drink manufacturing
  • Commercial kitchens
  • Healthcare facilities
  • Pharmaceutical manufacturing
  • Any hygiene sensitive application

Specifications

Length:550mm
Width: 520mm
Depth: 65mm
Diameter: 200mm
Suitable for: ACO Gully 218
Material thickness: 1,5mm
Adjustable levelling feet: 60-110mm
Rounded corners: equal or larger than 3mm

Please note: The dimensions of the ACO vinyl tray channel can be specified in respect of project requirements or easily chosen from predefined fixed dimensions.

Dimensions

Length 550mm Depth 65mm Width 520mm

Details

Material Stainless Steel Product Type Kitchen Channel Floor Type Vinyl/sheet Outlet Size 200mm
External Dimensions 550mm x 520mm x 65mm
