ACO’s HygieneFirst drainage systems fulfils the stringent hygienic requirements to minimise harmful bacteria and pathogen contamination of food arising from the drainage elements.

This is done by applying relevant hygiene design principles reserved for food contact surfaces by the implementation of BS EN 1672, BS EN ISO 14159 and EHEDG Document 8 requirements to drainage element design.

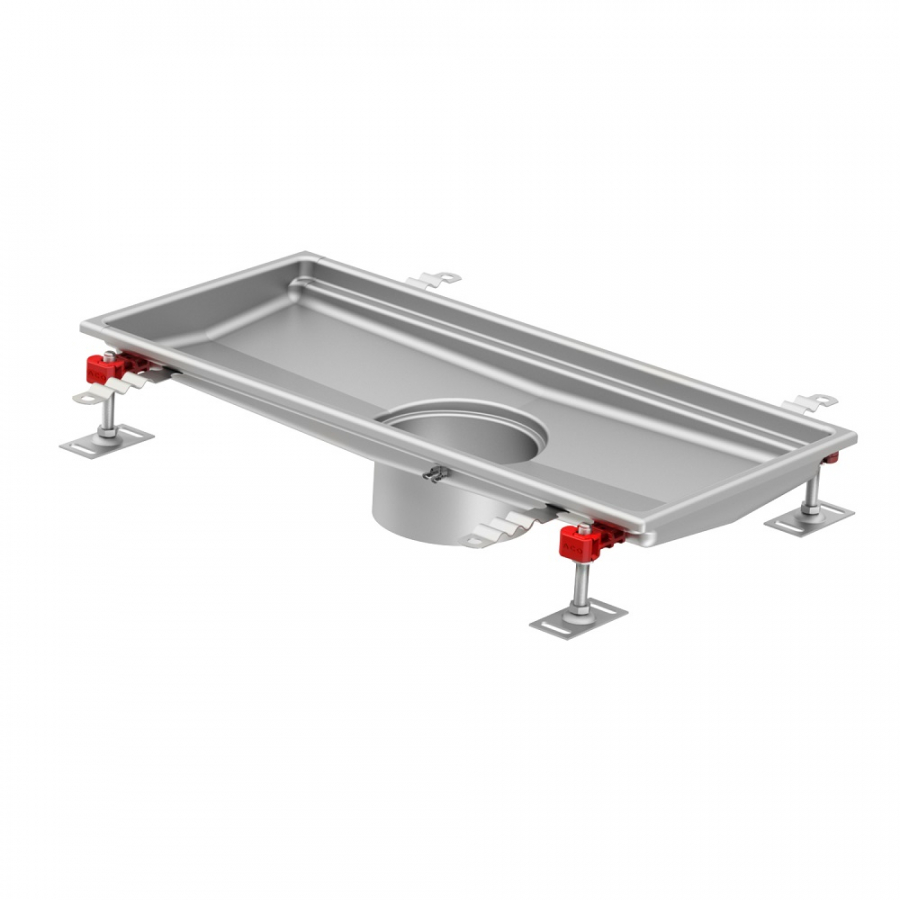

The standard edge channel drain can be used on tiled, concreate or resin floors.

Features and Benefits

• Manufactured from 304 grade stainless steel

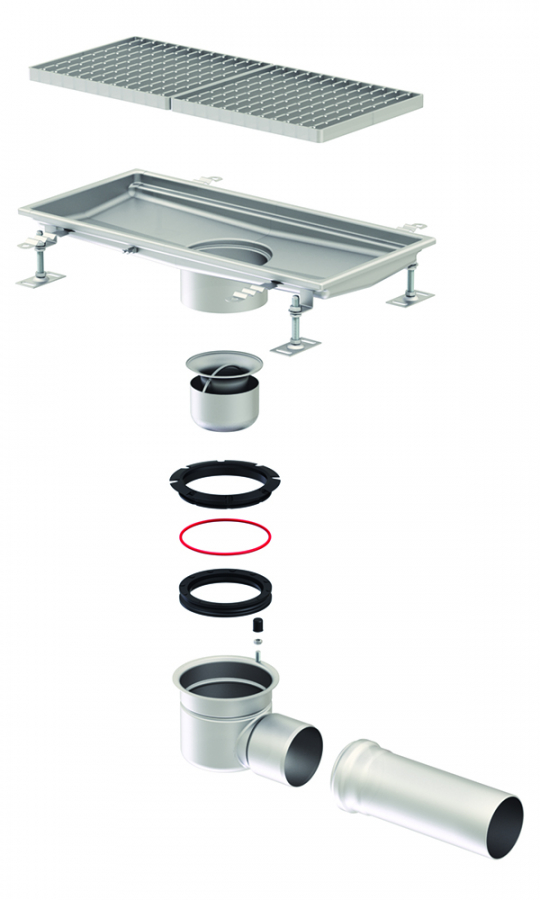

• Waterproof membrane connected to gully body
• Applies the hygienic design principles normally reserved for food contact surfaces via BS EN 1672
• Features a fully drainable sump
• Reinforced channel base for tray channels >300mm give extra stability
• Contoured outlet enables positive drainage even with low flow rates
• Design enables quick and easy cleaning
• Concrete fixing anchors
• Fully pickle passivated for optimum durability and corrosion resistance

Uses

• Food and drink manufacturing
• Commercial kitchens
• Healthcare facilities
• Pharmaceutical manufacturing
• Any hygiene sensitive application

Specifications

Length: 2030mm
Width:  200mm
Depth: 60mm
Diameter: 142mm
Suitable for: ACO Gully 157
Material thickness: 1,5mm
Adjustable levelling feet: 60-110mm
Rounded corners: equal or larger than 3mm

Please note: The dimensions of the ACO Hygienic Tray Channel for concrete, tiles and resin floor can easily be specified in respect of project requirements or easily chosen from
predefined fixed dimensions.
