Our gullies represent the cumulation of many years' practical experience and design know-how in stainless steel fabrication technologies. Made by state of the art European plants that produce products of consistent outstanding quality but with economic benefits that can only be realised through the most advanced manufacturing methods. All the systems featured here are manufactured in austenitic stainless steel grades 304 or 316 and are fully pickle passivated in order to ensure corrosion free joints.

The gully systems fall into five main categories: Fixed Height and Telescopic gully systems, EG150 Eurogully range, Rodding Eyes, Micro Floor Gullies and Bespoke gullies. Each has particular benefits which are summarised briefly here with in depth description and full feature and benefit listings in their relevant sections of the catalogue.

Features & Benefits

• Hygienic design including large radii formed contours, deep-drawn components and minimal welds to minimise crevices and bacteria traps according to BS EN 1672 and BS EN ISO 14159
• Stainless steel gullies fully compliant to BS EN 1253
• Available in 304 and 316 grades of stainless steel
• Fully removable and easily cleaned stainless steel foul air trap (FAT)
• Removable hygienic and corrosion resistant Nitrile FAT support
• Capacity with high flow rates
• Wide range of gratings to Load Class  L15 - M125 (BS EN 1253) or C250 (BS EN 124)
• Includes Foul Air Trap

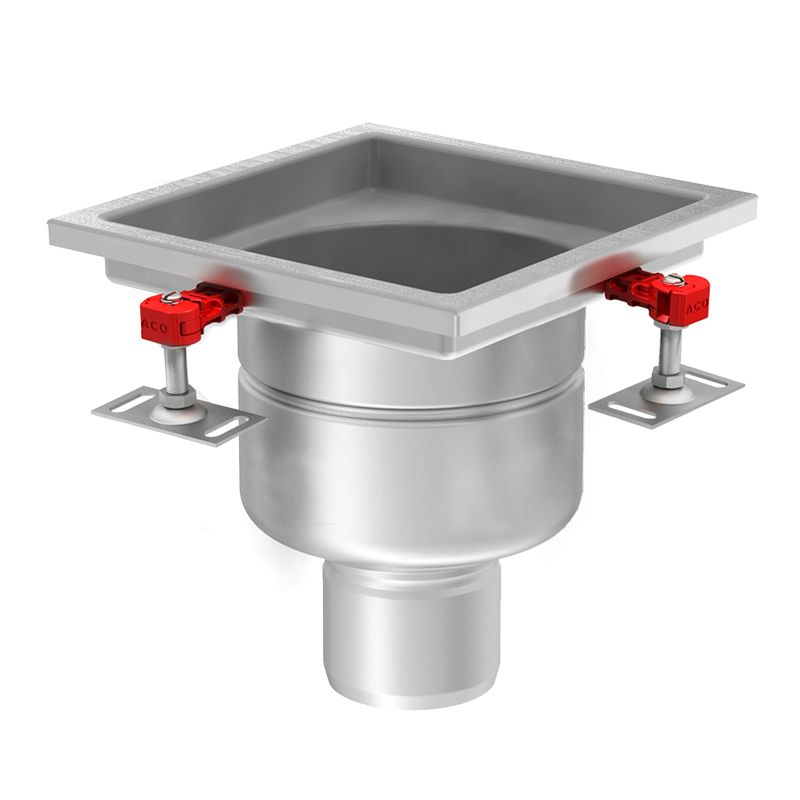

Dimensions

Top Size: 400mm x 400mm

Body Diameter: 357mm

Depth: 336mm (+80)

Spigot Dia: 160mm

Flow Rate: 11l/s

Weight: 12kg

Grating Dimensions

368mm x 368mm
