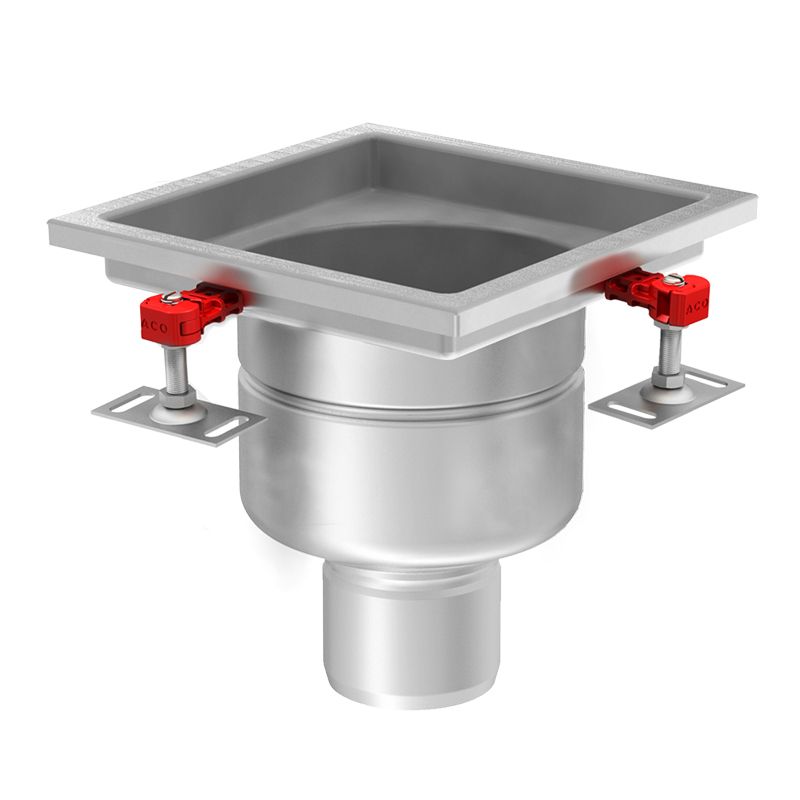

ACO Gully 357 Stainless Steel 304 Fixed Vertical Outlet 200mm Spigot

Code:
05768
Brand:

This item is out of stock and not available to purchase.

This 357 stainless steel 304 fixed vertical outlet 200mm spigot is part of the ACO Gully range of building drainage. A one-piece style gully, this design is perfect for a variety of commercial applications and is suitable for concrete, resin or tiled flooring. Manufactured fro... Read More

Create a wishlist

"The lady was very attentive"

Brian Douglas

Description

This 357 stainless steel 304 fixed vertical outlet 200mm spigot is part of the ACO Gully range of building drainage. A one-piece style gully, this design is perfect for a variety of commercial applications and is suitable for concrete, resin or tiled flooring.

Manufactured from 304 austenitic stainless steel, this gully has been pickle-passivated to ensure corrosion-free joints and complies with BS EN 10088 standards. They also feature a one-piece foul air trap which is completely removable to ensure easy access for rodding of the connecting pipework. This removable trap also allows for easy cleaning and maintenance when the need occurs. Installation is also quick and simple thanks to the height-adjustable levelling feet, saving your time and labour costs.

Features & Benefits: ACO Gully 357 Stainless Steel 304 Fixed Vertical Outlet 200mm Spigot

  • Suitable for commercial applications in concrete, tiled or resin floors
  • 304-grade austenitic stainless steel
  • Slip-resistance
  • Corrosion-resistant joints thanks to pickle passivation
  • Easy-to-clean
  • Fully compliant with BS EN 1253 standards
  • One-piece removable foul air trap included
  • Height-adjustable levelling feet to save time installing
  • Bowl-shaped body deters silt and debris from collecting in corners for easy cleaning
  • Hygienic design including large radii formed contours, deep-drawn components and minimal welds to minimise crevices and bacteria traps according to BS EN 1672 and BS EN ISO 14159
  • 400mm x 400mm top size
  • 357mm body diameter
  • 336mm(+80) depth
  • 200mm spigot diameter
  • 11l/s flow rate
  • 12.3kg weight
  • 368mm x 368mm grating dimensions

The gully's bowl-shaped body deters silt and debris from collecting in corners which makes cleaning it that much easier. An electrical earthing point is also provided on every gully body as a standard for safety and functionality. Chamfered spigot outlets also allow an easy push process.

Dimensions

Depth 336mm

Details

Material Stainless Steel Product Type Gully Diameter 357mm Gully Type Vertical
Purpose Industrial Type Commercial Application Kitchen Outlet Size 200mm Top Size 400mm x 400mm
