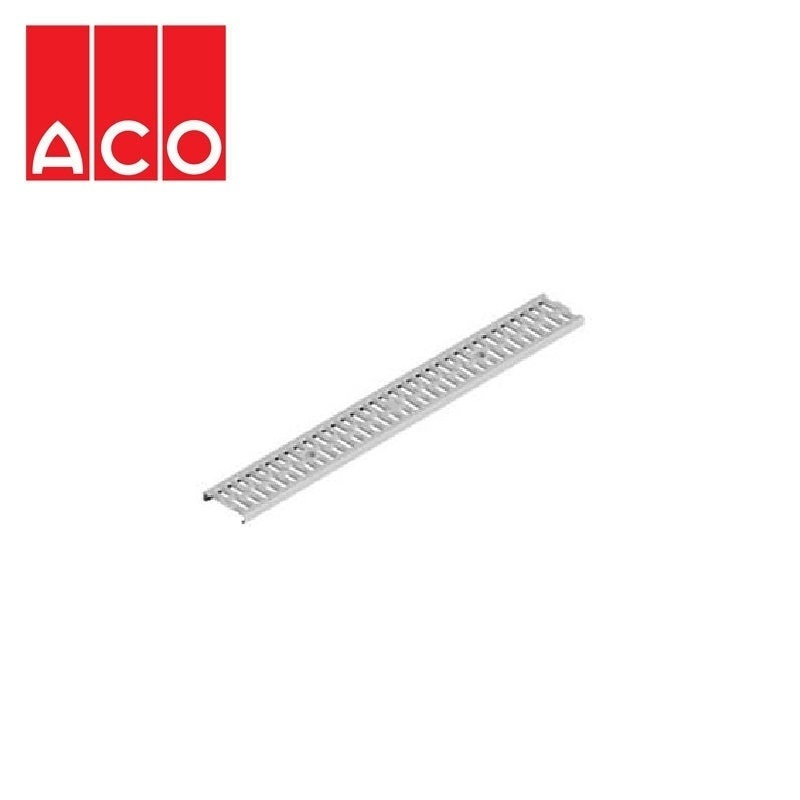

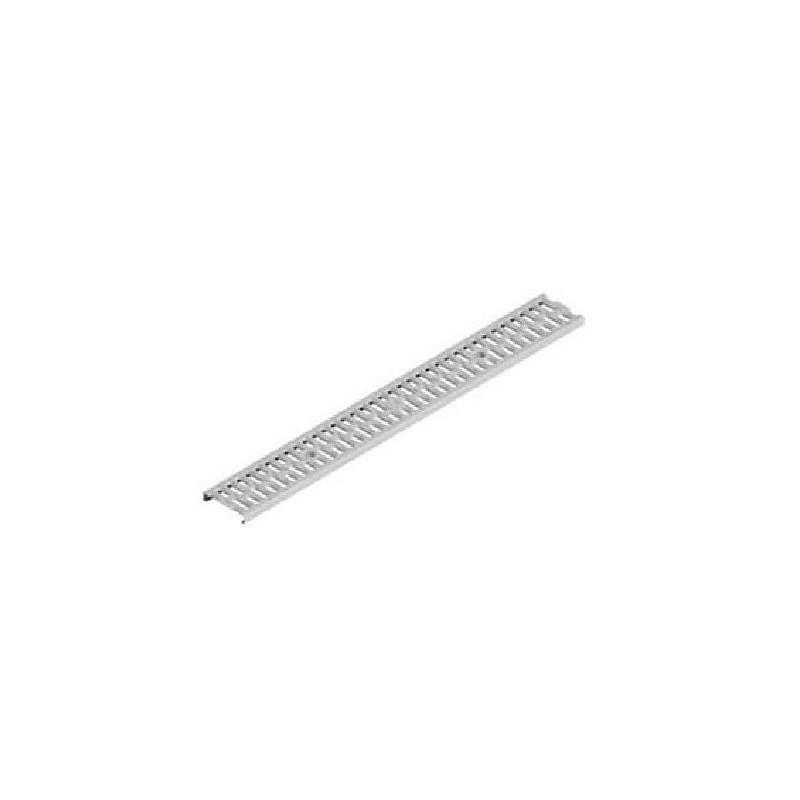

ACO Deckline 125 Slotted Channel Grating 1000mm - Weight Class A15

Code:
105522
Brand:
Free UK Delivery

Ideal for areas where the excavation depth is limited or, for example, with structural slabs, this Slotted Channel Drain Grate is part of a shallow invert channel drainage system from ACO. Manufactured from highly durable galvanised steel, it has been further developed from th... Read More

Create a wishlist

"Excellent value.quick delivery"

Gary

Description

Ideal for areas where the excavation depth is limited or, for example, with structural slabs, this Slotted Channel Drain Grate is part of a shallow invert channel drainage system from ACO. Manufactured from highly durable galvanised steel, it has been further developed from the incredibly successful Deckline channel solution.

Offering enhanced performance for most applications, this channel drain grate from the highly flexible Deckline 125 system is available off the shelf. Supplied complete with lockings, this slotted grating has a Load Class of A15. The Deckline 125 range features a vee-bottomed channel for increased flow efficiency at low flow rates.

Features & Benefits: ACO Deckline 125 Slotted Channel Grating 1000mm - Weight Class A15

  • Supplied with lockings
  • A15 Load Class
  • Made from galvanised steel
  • Ideal for areas where the excavation depth is limited or with structural slabs
  • Excellent durability and load-bearing capacity
  • Range of lengths available
  • 1000mm length x 123mm width x 20mm height

Standards & Certification

  • Manufactured from hot-dipped galvanised steel: to BS EN ISO 1461: 2009
  • Drainage Channels for Vehicular and Pedestrian Areas: Fully tested and classified to BS EN 1433
  • CE marking: Meets the Essential Requirements of BS EN 1433 for durability, water tightness and load bearing capacity

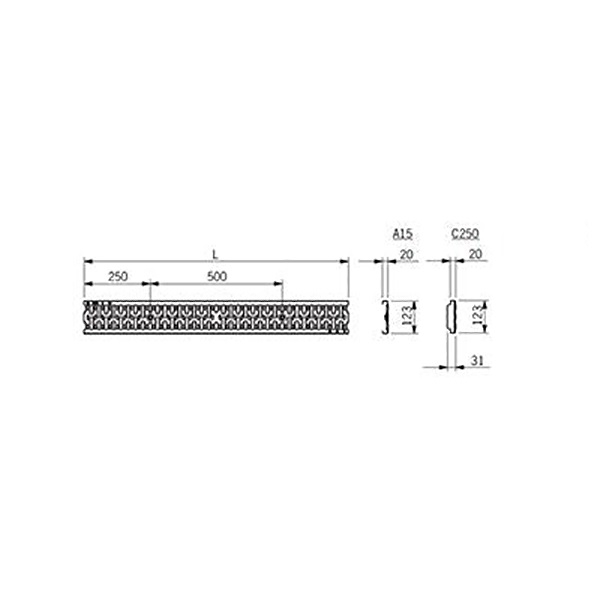

Dimensions

Length
1m
Depth
20mm
Width
123mm

Details

Material
Galvanised Steel
Product Type
Channel Grate
Grate Design Features
Slotted Grate
Grate Material
Galvanised Steel
Application
Decking
Range
Deckline
Class
A15
Load Rating
A15
