StormCrate55 Cellular Storm Water Crate 55 Tonne - 1200mm x 600mm x 347mm

Product Code:
B8250
Est. Delivery: 3-5 Working Days
Shipping costs displayed in basket.
We can let you know when this product is back in stock.

This product is proving to be very popular and has unfortunately sold out.

Enter your email below and we'll notify you as soon as this product is back in stock:

Subject to stock availability, if products on a 24 hours service are ordered alongside products NOT on a 24 hours service, this may delay your whole order.

View Transport Policy

All delivery charges are included in the final shopping basket and are dependent on the products Scottish Highlands & the Islands where additional shipping charges will apply.

Please note that not all products will incur an additional delivery charge to the Scottish Highlands & the Islands – this is based on the costs from the manufacturer, distributor or courier providing shipping on our behalf. If your delivery address is in the Scottish Highlands and Islands, a member of our helpline team will contact you prior to processing your order should an additional delivery charge apply.

While we make every effort to ensure orders are delivered by the date required, we cannot guarantee availability from the manufacturer or the manufacturer's delivery schedules.

Any variation to web delivery date given will be advised to you by email or telephone. If we are unable to make delivery because access is not possible, we reserve the right to make a failed delivery charge.

£53.26 Incl. VAT
Oops! Please select from the options

Product Description

You’ll find the Brett Martin StormCrate55 can be used in storm water retention, attenuation and infiltration applications.

Designed to be easily stacked together, they will create a below ground stormwater holding tank, or they can allow the infiltration of storm water into the ground around them.

During heavy rainfall, the void which the crates have created will be filled up with rainwater. If the crates are used for attenuation, the water will then drain away slowly into the drainage system. However, if you are using the crates for infiltration, then the water will slowly soak away into the ground water table.

With a loadbearing strength of 562kN per m2 and integrated inlets and outlets the StromCrate55 is both durable and practical.

Please note, 4 connectors and 2 shear pins are included per crate.

Common applications:

  • Landscaped areas
  • Pedestrianised areas
  • Public open spaces
  • Playgrounds
  • Parking areas
  • Driveways
  • Access areas

Features & Benefits

  • 4 StormCrates per 1m3
  • 95% void ratio
  • 100% recyclable

Product Specification

Volume: 0.25m3

Cube storage volume: 0.2375m3

Void ratio: 95%

Dimensions: 1200mm x 600mm x 347mm

Connections: 12 x pipe inlets

Weight: 15.5kg

Material: Polypropylene

Short term strength, vertical: 562kN/m2

Short term strength, lateral: 70kN/m2

Long term strength, vertical: 153kN/m2

Long term strength, lateral: 19kN/m2

Product Documents

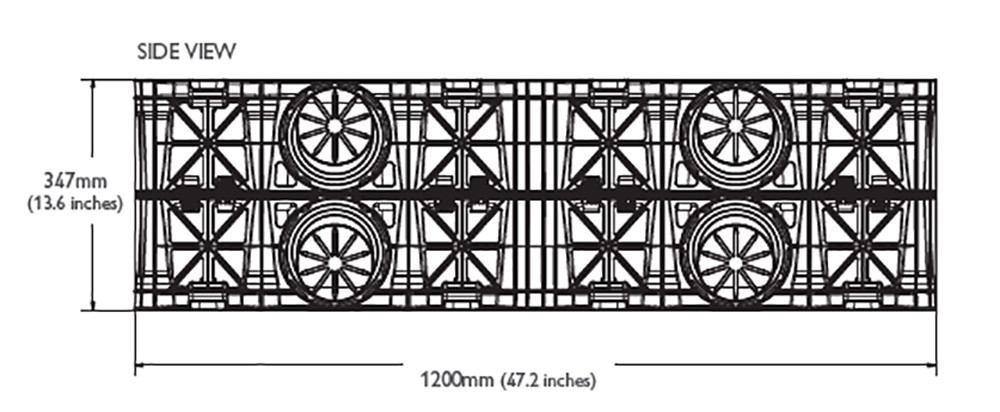

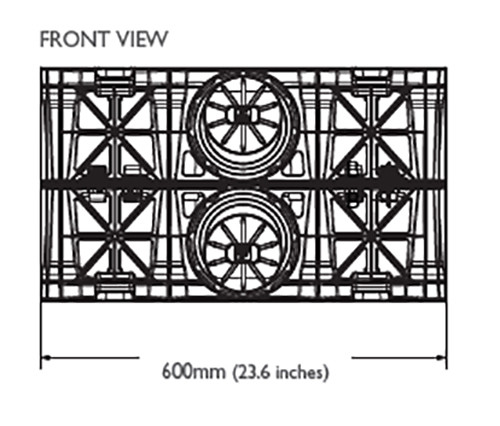

Dimensions

WIDTH 600mm LENGTH 1200mm THICKNESS 347mm

Details

Colour Black Material Polypropylene Size 1200mm x 600mm

Products We Recommend

loading...

Questions & Answers

Question:

Do you need to fill the Storm Crate 55 boxes with clean stone.?

Answer:

No, the crates are wrapped with non woven geotextile to create an empty void for the crates to fill with water.

Product Reviews

5 / 5 1 reviews
simon sharland
28th October 2020
A very solid crate with good connection pieces to allow for combining two or more cells.
