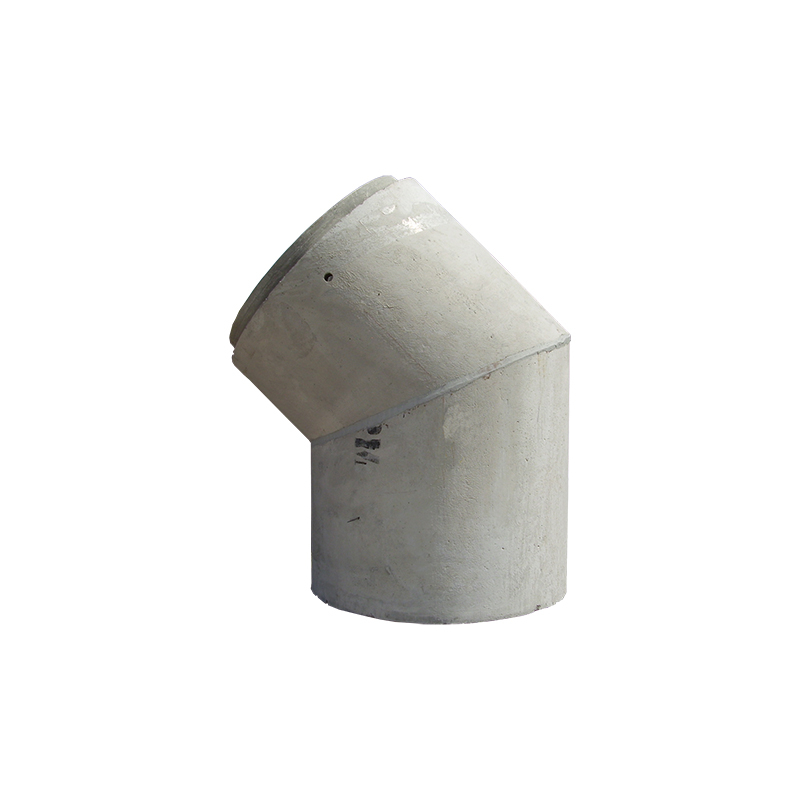

Marshalls Concrete Pipe Bend 11.25dg - 225mm

Code:
P225BND11
Free UK Delivery

This item is out of stock and not available to purchase.

Marshalls CPM precast concrete bends are manufactured by cutting pipes into two or three segments and joining them together at the required angle using an epoxy resin. Bends may not necessarily have the same load-bearing capacity as the pipes with which they are to be laid. It ...Read More

Create a wishlist

"Excellent service"

Rob Lloyd

Description

Marshalls CPM precast concrete bends are manufactured by cutting pipes into two or three segments and joining them together at the required angle using an epoxy resin.
Bends may not necessarily have the same load-bearing capacity as the pipes with which they are to be laid. It is therefore recommended that they should be surrounded by suitably designed in-situ concrete where significant load conditions have to be met, or where anchorage of the pipeline is required. Bends have the same manufactured internal diameter and wall thickness as the pipes with which they are to be laid.

Marshalls Concrete Pipe Bend Specifications

DN: 225mm
Angle: 11.25dg
Total Effective Length: 600mm

Details

Material Concrete Product Type Bend Diameter 225mm
