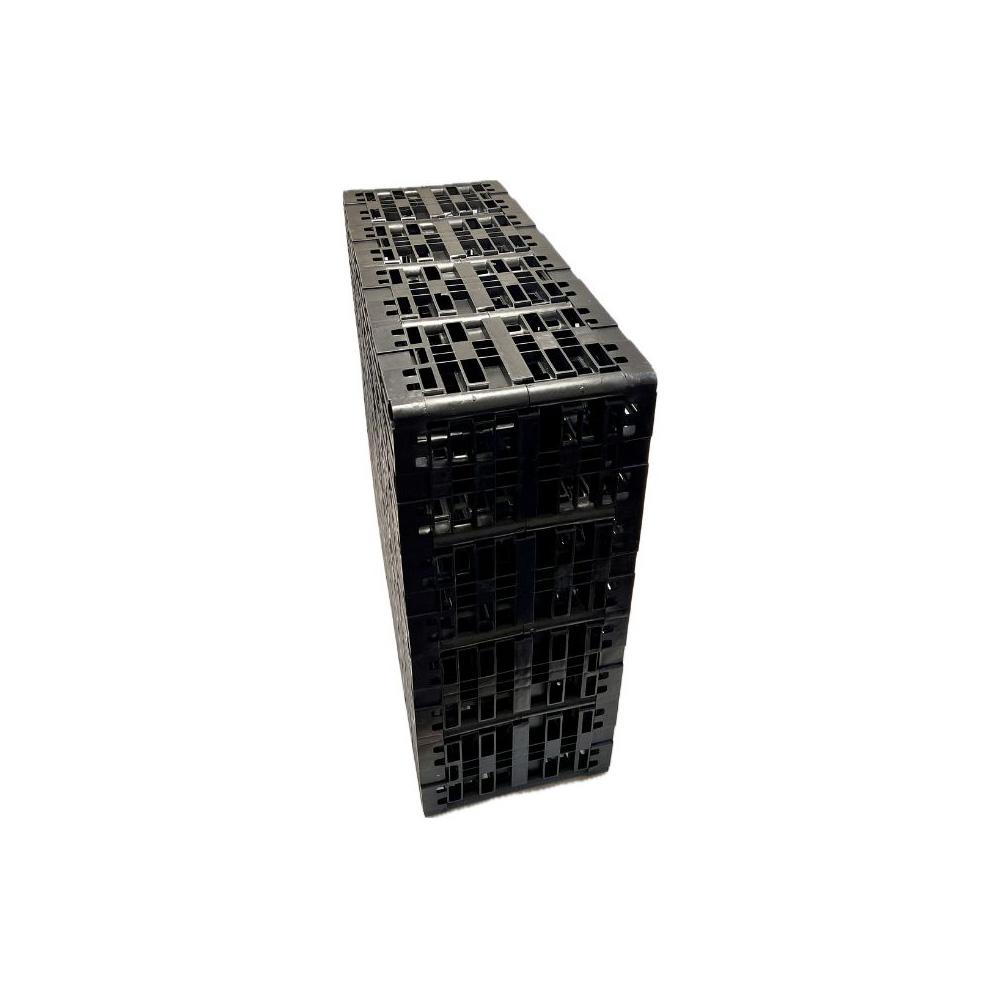

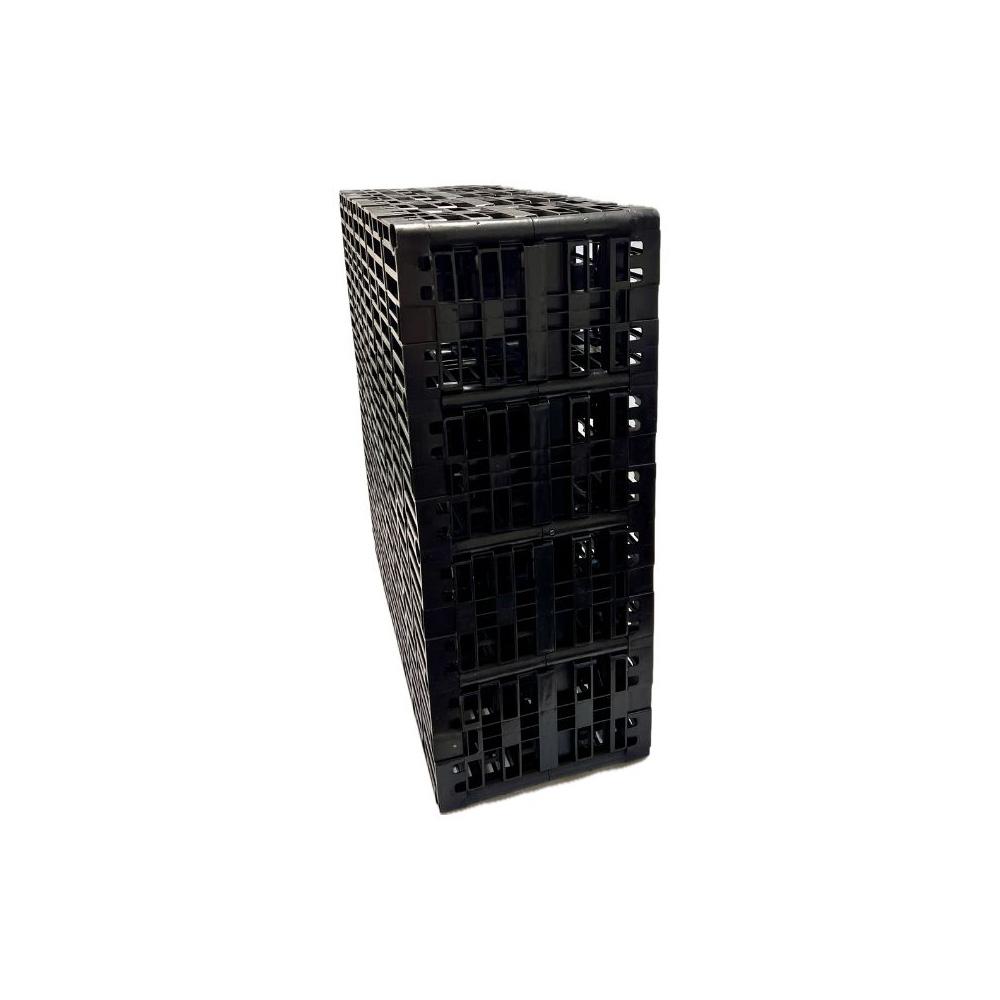

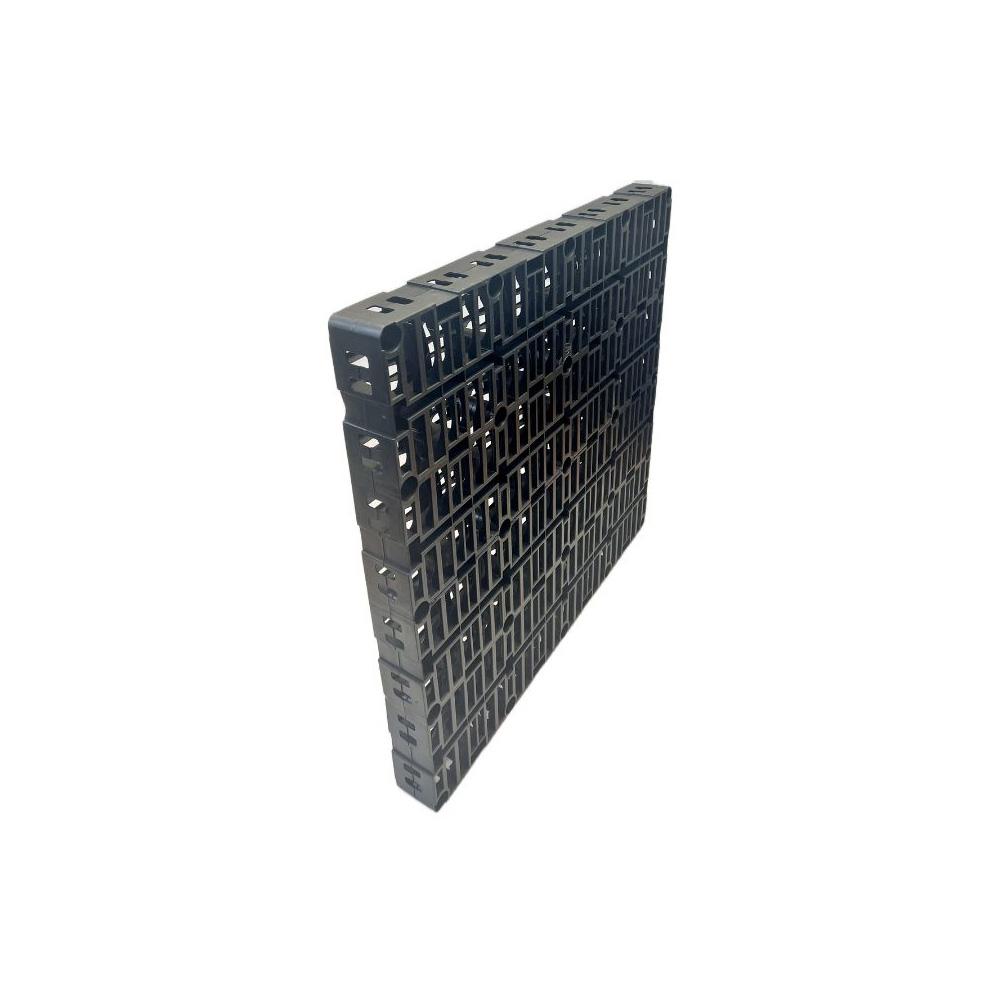

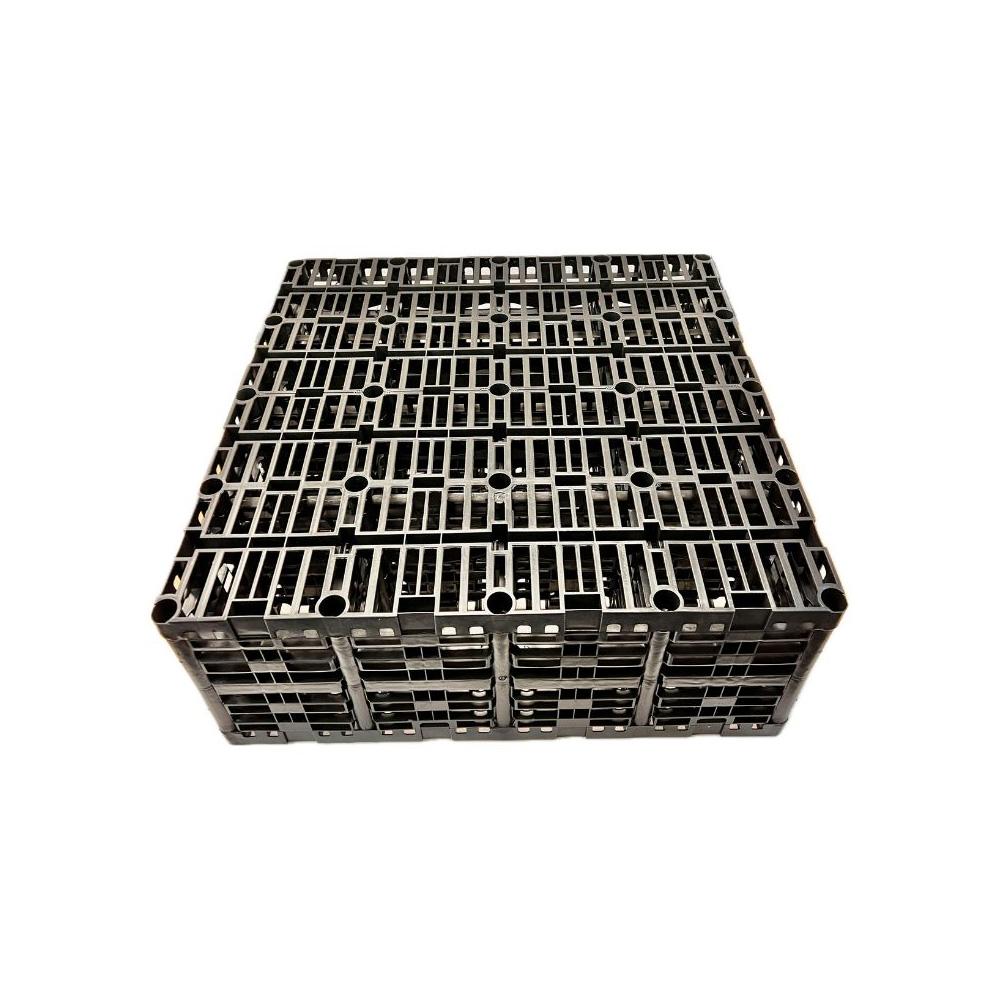

The EnviroCrate 20 Tonne Stormwater Soakaway & Attenuation Crate provides an effective underground solution for stormwater storage, attenuation, and infiltration projects. Manufactured in the UK from recycled polypropylene to ISO 9001 standards, these lightweight yet durable modular crates are designed for quick installation without mechanical lifting equipment. Suitable for use beneath pedestrian, vehicle, and HGV traffic areas, they help reduce flooding risk while supporting sustainable water management systems.
Ideal for attenuation tanks, permeable drainage systems, and grey water reuse applications, EnviroCrate units can also be used for roof gardens, sports pitches, and landscaped developments. The modular design allows flexible layouts, while installation clips ensure secure stacking. Crates are wrapped in geotextile for infiltration systems or geomembrane for water storage applications.
Please note:
Question:
What are the dimensions
Question:
Do you fill the crate with shingle or just the bottom and outside
Answer:
You would only backfill with shingle but won't fill the crates.
Question:
Do the caps come with the crates?
Answer:
Yes, The crates will come with the caps.
Question:
How deep do you have to put the soakaway
Answer:
Aquacrate400 needs for the maximum depth of the base below ground level to be less than 3m
It also needs a minimum cover of :
850mm if 13t axle loads going over it
650mm if 8t maximum axle loads going over it
450mm if 2t maximum axle loads going over it
Question:
Can these be used in clay soil areas and if so is any extra preparation needed
Answer:
The item can be used in a clay field, however, we would highly recommend having a peculation value test done by a ground worker.
This can determine how heavy the clay is in your ground and the ground worker can advise you how many extra crates you may need.
Question:
Are the crates built or flat pack?
Answer:
They are built.
Question:
We purchased 4 of the AQK20 crates from you (1000mm x 1000mm x 400mm) to span an area 2m x 2m. There are no cut-out indicators - can we make our cut-outs for the inlet pipe on the 400m side walls?
Answer:
Yes you can.
Question:
Can you give me a estimate on what size create I would need long with the material to wrap it in I should order
Answer:
You would need the installer to work this out, they will need to find out how well the soil can drain and the amount of surface water it will take and then you will know how many m3 you need.
Question:
How do I connect a pipe and what size does it need to be?
Answer:
You can use any size pipe, you would drill an inlet to the needed size and push the pipe in. There are no locations marked on the crate, you can do it anywhere on any wall.
