Cavity Drain Membrane Protecto-Drain 1 x 20m

Additional Information

Product code: PD-08-MINI-Z
Brand: Wallbarn
Estimated delivery: 2-3 Days
£48.00 inc vat
£40.00 ex vat
  • 1+ £48.00
    inc vat
    £40.00
    ex vat
Description
Delivery
Read More

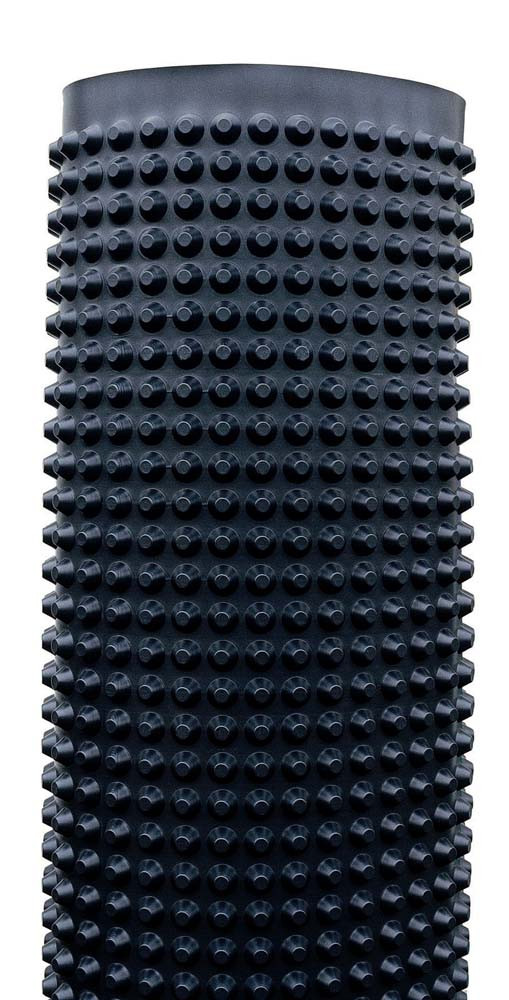

Protecto-drain 8 is a dimpled HPDE membrane, sometimes called a CAVITY DRAIN or a FIN DRAIN,  for use against foundation walls, basements and subterranean concrete, waterproofed structures. It is designed to protect the structure against mechanical damage and to create an air gap between the waterproofing and the earth, producing a reliable drainage channel for groundwater to pass
down the surface of the structure and into a suitable sump or channel.  The membrane means that hydrostatic pressure does not develop within the structural layers, avoiding the risk of punctures and damp building up

They are lightweight and easy to install and fix. Installation is quick and very cost-effective.

Applications include:

  • Retaining walls
  • Walls built half exposed / half buried
  • Abutment drainage
  • Gas dispersal & collection
  • Erosion control
  • Sports field drainage
  • Road construction
  • Basement waterproofing

Installation

Protecto-drain 8  Place the dimpled sheet against the foundation wall or structure and overlap each sheet by at least 20cm. The cups should face the structure on their underside, so that the open cup is facing the ground / earth / backfill.  For bonding each sheet together, install double-sided PROTECTO-TAPE along the full length of one sheet and remove the slip foil.

Place one sheet on top of the other by pressing the open cups into those on the other sheet – the cups will fit neatly within the angled sides into the cup / button. The PROTECTO-TAPE is designed to hold  the  sheets in place temporarily  before  the  backfill  process  takes  place.  Sheets  can  also  be secured using clout nails and buttons (available from Wallbarn), clamped down with a batten fixed at the top of the membrane or fixed with a bolt gun

Fill the void behind the membrane with free-draining aggregate such as gravel or loose stones. The dimpled membrane should always be installed so that the top of it protrudes above the level of the backfill.
