Home Underground Drainage Gullys & Gratings Commercial Floor Gullies ACO TotalFlow Gully Cast Iron Top with Slotted Grating - 197mm

ACO TotalFlow Gully Cast Iron Top with Slotted Grating - 197mm

Code:
106101
Brand:
ACO

This durable and strong Cast Iron Top Gully with Slotted Grating from ACO is part of their TotalFlow range. It has an M125 load class and a 5mm adjustable height range. Simple and compact for straightforward specification, installation and maintenance, TotalFlow gullies are pe...Read More

View full product details
View questions about this product
£86.00 Incl. VAT
Oops! Please select from the options
Est. Delivery: 3-5 Working Days
Shipping costs displayed in basket.
We can let you know when this product is back in stock.

This product is proving to be very popular and has unfortunately sold out.

Enter your email below and we'll notify you as soon as this product is back in stock:

For delivery Tuesday, Apr 23rd - order in:
days hrs mins secs
Subject to stock availability, if products on a 24 hours service are ordered alongside products NOT on a 24 hours service, this may delay your whole order.
View Transport Policy

All delivery charges are included in the final shopping basket and are dependent on the products Scottish Highlands & the Islands where additional shipping charges will apply.

Please note that not all products will incur an additional delivery charge to the Scottish Highlands & the Islands – this is based on the costs from the manufacturer, distributor or courier providing shipping on our behalf. If your delivery address is in the Scottish Highlands and Islands, a member of our helpline team will contact you prior to processing your order should an additional delivery charge apply.

While we make every effort to ensure orders are delivered by the date required, we cannot guarantee availability from the manufacturer or the manufacturer's delivery schedules.

Any variation to web delivery date given will be advised to you by email or telephone. If we are unable to make delivery because access is not possible, we reserve the right to make a failed delivery charge.

View full product details
View questions about this product
Create a wishlist

"Easy to deal with"

John Thompson
Description Specification Downloads Q&A

Description

This durable and strong Cast Iron Top Gully with Slotted Grating from ACO is part of their TotalFlow range. It has an M125 load class and a 5mm adjustable height range. Simple and compact for straightforward specification, installation and maintenance, TotalFlow gullies are perfect for highly trafficked pedestrian areas.

This ACO gully can be installed in a variety of public buildings, railway and bus stations, shopping centres, airport terminals, leisure facilities and sports stadia, as well as facilities for healthcare and educational buildings.

Features & Benefits: ACO TotalFlow Gully Cast Iron Top with Slotted Grating - 197mm

  • Gully Body and Top are push-fit connected to save time on assembly on-site
  • Cast iron body for durability
  • Installation is easy
  • Compact range for simple specification
  • Compatible with various flooring solutions
  • 197mm Top Side
  • 116mm Overall Depth and 35mm Grating Depth
  • 170mm Grating Top Side
  • Weight: 11.5kg

TotalFlow Gully tops are available in an assortment of materials, sizes and load classes for numerous applications across the Building Construction Industry. Nickel bronze, cast iron, stainless steel, plastic/metal combination and plastic gully tops can be purchased.

Product Specification

  • Weight: 11.5kg
  • Load Class: M125

Standards & Certification

  • Manufactured to BS EN 1253

Please note:

  • This ACO TotalFlow Cast Iron Gully includes a cast iron slotted grate.

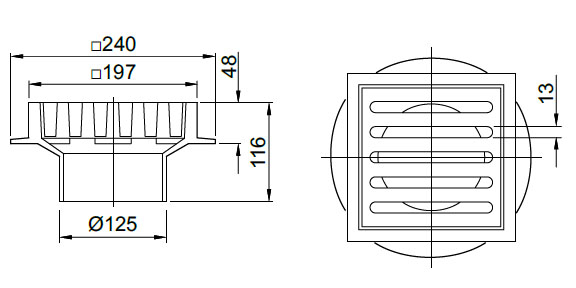

Dimensions

Length 197mm Width 197mm

Details

Material Cast Iron Product Type Gully Grate Grate Design Features Ladder Grate Purpose Kitchen
Application Kitchen

Downloads

There are no product downloads to show.

Questions & Answers

Question:

Does this connect to a 4" pipe?

Answer:

The gully slotted grating will require a body to then connect to the pipework.

Both gratings with the bodies will fit onto a 4-inch pipe (110mm pipe).
