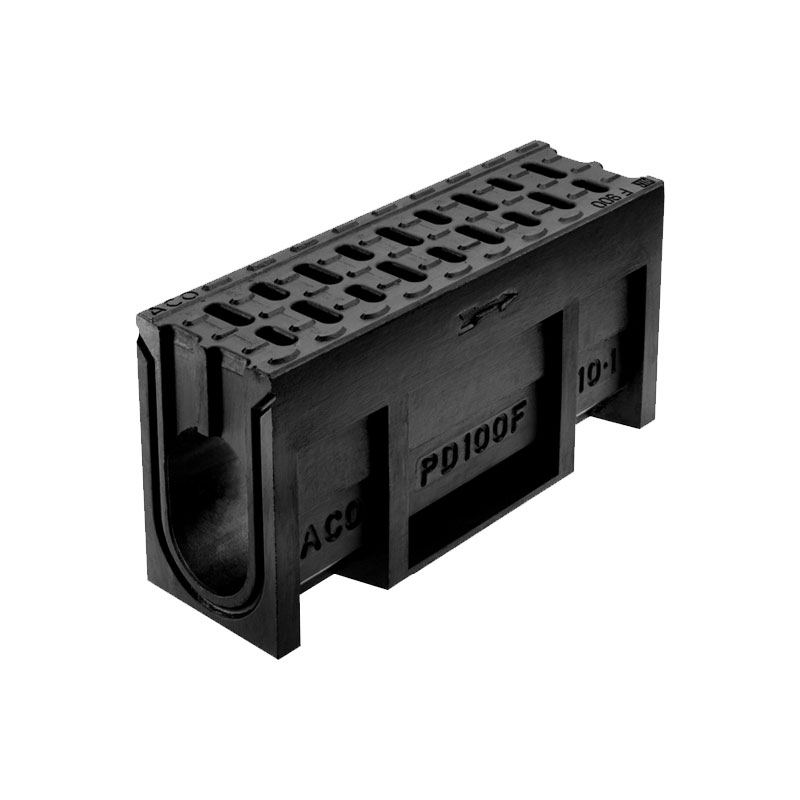

ACO RoadDrain 100 Channel Drain 160mm x 250mm x 500mm

Product Code:
Est. Delivery: 3-5 Working Days
Shipping costs displayed in basket.
We can let you know when this product is back in stock.

This product is proving to be very popular and has unfortunately sold out.

Enter your email below and we'll notify you as soon as this product is back in stock:

Subject to stock availability, if products on a 24 hours service are ordered alongside products NOT on a 24 hours service, this may delay your whole order.

View Transport Policy

All delivery charges are included in the final shopping basket and are dependent on the products Scottish Highlands & the Islands where additional shipping charges will apply.

Please note that not all products will incur an additional delivery charge to the Scottish Highlands & the Islands – this is based on the costs from the manufacturer, distributor or courier providing shipping on our behalf. If your delivery address is in the Scottish Highlands and Islands, a member of our helpline team will contact you prior to processing your order should an additional delivery charge apply.

While we make every effort to ensure orders are delivered by the date required, we cannot guarantee availability from the manufacturer or the manufacturer's delivery schedules.

Any variation to web delivery date given will be advised to you by email or telephone. If we are unable to make delivery because access is not possible, we reserve the right to make a failed delivery charge.

£74.48 Incl. VAT
Oops! Please select from the options


The RoadDrain by ACO is made from high strength recycled polymer concrete known as Vienite. The RoadDrain is a single-piece system that is both strong and robust in design. The integral channel and grating design also improve the inherent strength of the system whilst preventing the risk of loss and vandalism to the grate.

Features & Benefits: ACO RoadDrain 100 Channel Drain 160mm x 250mm x 500mm

  • Fully compliant to the Specification for Highway Works
  • Manufactured from Vienite - a recycled polymer concrete
  • Design improves the inherent strength of the system
  • Integral channel and grating design prevents the risk of loss and vandalism to the grate
  • CE marked

Product Specification

  • Length: 500mm
  • Width (overall): 160mm
  • Depth (overall): 250mm
  • Invert: 225mm
  • Invert Type: 1/3
  • Material: Concrete
  • Load Rating: D400, E600 & F900

Please note:

  • Fully compliant to the Specification for Highway Works
  • Kitemarked to BS EN 1433-2002
  • Certified by a notified body to BS EN 1433-2002 Load Class F 900
  • CE marked by a notified body


Length 500mm Width 160mm


Material Concrete Depth 250mm Weight Class D400
Invert 225mm
