ACO MonoDrain 225mm x 150mm x 500mm Access Unit - Black

Code:
20613
Brand:

Part of the single-piece MonoDrain system, this ACO MonoDrain Access Unit in Black is designed for the same depth standard channels. The grate and base are integrated into a single unit, provided with a slot component for the easy cleaning and clearing of blockages. The access...Read More

£140.00 Incl. VAT
Oops! Please select from the options
Est. Delivery: 3-5 Working Days
Shipping costs displayed in basket.
We can let you know when this product is back in stock.

This product is proving to be very popular and has unfortunately sold out.

Enter your email below and we'll notify you as soon as this product is back in stock:

For delivery Tuesday, Apr 2nd - order in:
days hrs mins secs
Subject to stock availability, if products on a 24 hours service are ordered alongside products NOT on a 24 hours service, this may delay your whole order.
View Transport Policy

All delivery charges are included in the final shopping basket and are dependent on the products Scottish Highlands & the Islands where additional shipping charges will apply.

Please note that not all products will incur an additional delivery charge to the Scottish Highlands & the Islands – this is based on the costs from the manufacturer, distributor or courier providing shipping on our behalf. If your delivery address is in the Scottish Highlands and Islands, a member of our helpline team will contact you prior to processing your order should an additional delivery charge apply.

While we make every effort to ensure orders are delivered by the date required, we cannot guarantee availability from the manufacturer or the manufacturer's delivery schedules.

Any variation to web delivery date given will be advised to you by email or telephone. If we are unable to make delivery because access is not possible, we reserve the right to make a failed delivery charge.

Create a wishlist

"Products exactly as described and…"

Stuart Smith

Description

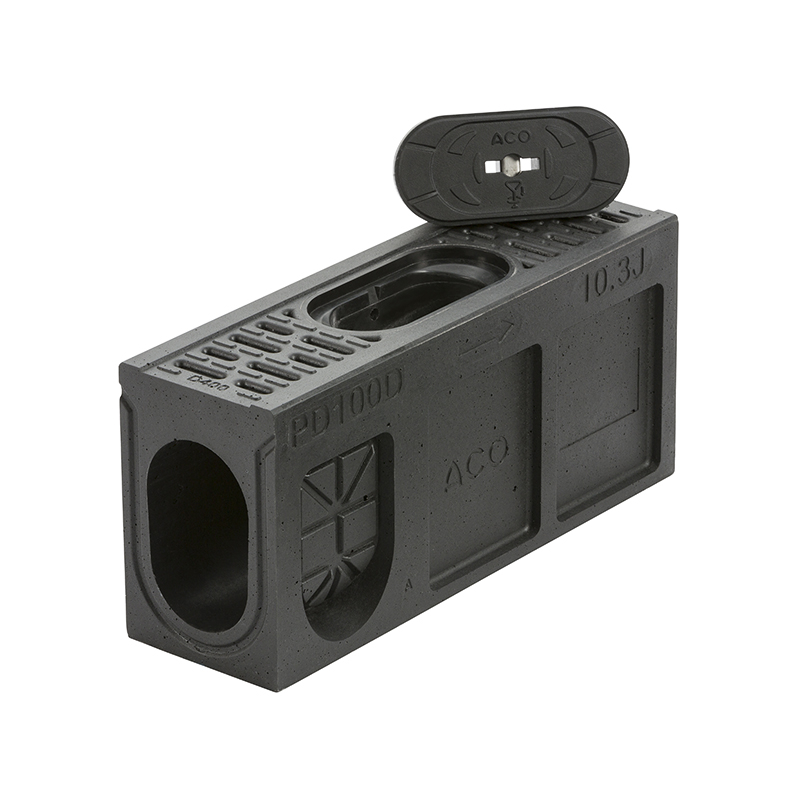

Part of the single-piece MonoDrain system, this ACO MonoDrain Access Unit in Black is designed for the same depth standard channels. The grate and base are integrated into a single unit, provided with a slot component for the easy cleaning and clearing of blockages. The access unit features a knockout section at either side of the channel for 90° connections, alongside a 110mm diameter knockout vertical connection.

Best installed at around five-metre increments to let drain rods and unblockers navigate and maintain the drainage system, this access unit is part of the MonoDrain one-piece system. Quicker to install than separate grate and base drains, MonoDrain combines bases and grates for safe and effective surface water drainage. Gratings are harder to move under the weight of traffic and less likely to get stolen, dislodged or loosened.

Features & Benefits: ACO MonoDrain 225mm x 150mm x 500mm Access Unit - Black

  • An easy way of clearing blockages and debris
  • Black to complement wider systems
  • Seamless access and use in D400 load class areas
  • Strong and sturdy Vienite structure
  • Equipped with knockout sections on either side of the channel for 90° connections
  • 110mm diameter knockout vertical connection

Designed to last in D400 load class areas, including car and HGV parks, light-duty landscaping and pedestrian areas, town centres and other commercial developments, MonoDrain's durable and strong ACO-made recycled polymer Vienite concrete structure is reliable. External faces on the base fulfil secure bedding into concrete, and the 8mm Heelguard grates avoid debris access and lessen the danger of falling.

MonoDrain simplifies the specification process and installation to reduce time spent on site. The products complement applications perfectly. The 500mm channel units come in four constant depths of 185mm to 305mm and one shallow constant depth of 135mm.

Standards & Certification

  • Certified to: BS EN 1433-2002 Class D400

Please note:

  • ACO MonoDrain is not suitable for public roads, highways and motorways.
  • Accessories including lockable rodding access points, sumps, gully units and foul air traps let you get more from this system.

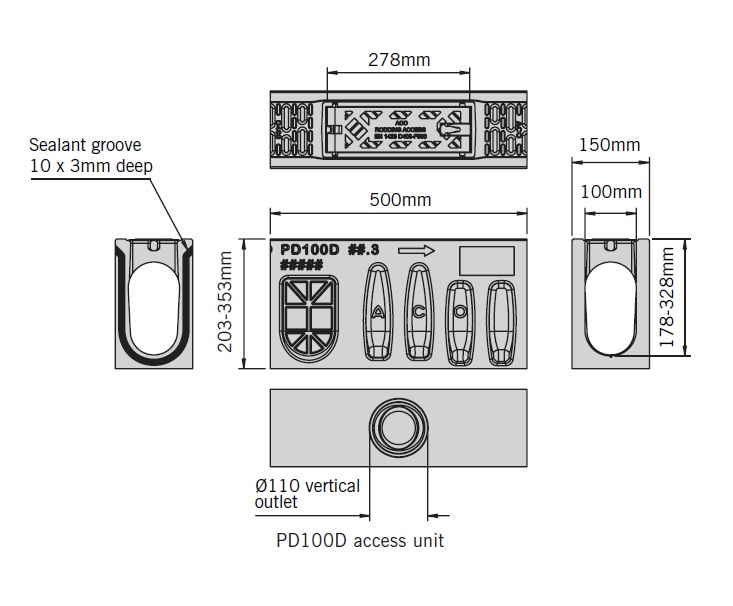

Dimensions

Length 500mm Depth 225mm Width 150mm

Details

Colour Black Material Vienite Product Type Access Panel Range MONODrain
Load Rating D400
