ACO MonoDrain 185mm x 150mm x 1000mm Channel - Grey

Code:
26600
Brand:

With a 185mm depth, 1000mm length and 150mm width, this one-piece ACO MonoDrain Channel Unit makes a safe, secure and effective water drainage solution. By coordinating a grate and base into one unit, you can minimise the risk of the grating being stolen or dislodged beneath t...Read More

£140.00 Incl. VAT
Oops! Please select from the options
Est. Delivery: 3-5 Working Days
Shipping costs displayed in basket.
We can let you know when this product is back in stock.

This product is proving to be very popular and has unfortunately sold out.

Enter your email below and we'll notify you as soon as this product is back in stock:

For delivery Wednesday, Apr 3rd - order in:
days hrs mins secs
Subject to stock availability, if products on a 24 hours service are ordered alongside products NOT on a 24 hours service, this may delay your whole order.
View Transport Policy

All delivery charges are included in the final shopping basket and are dependent on the products Scottish Highlands & the Islands where additional shipping charges will apply.

Please note that not all products will incur an additional delivery charge to the Scottish Highlands & the Islands – this is based on the costs from the manufacturer, distributor or courier providing shipping on our behalf. If your delivery address is in the Scottish Highlands and Islands, a member of our helpline team will contact you prior to processing your order should an additional delivery charge apply.

While we make every effort to ensure orders are delivered by the date required, we cannot guarantee availability from the manufacturer or the manufacturer's delivery schedules.

Any variation to web delivery date given will be advised to you by email or telephone. If we are unable to make delivery because access is not possible, we reserve the right to make a failed delivery charge.

Create a wishlist

"thank you"

James

Description

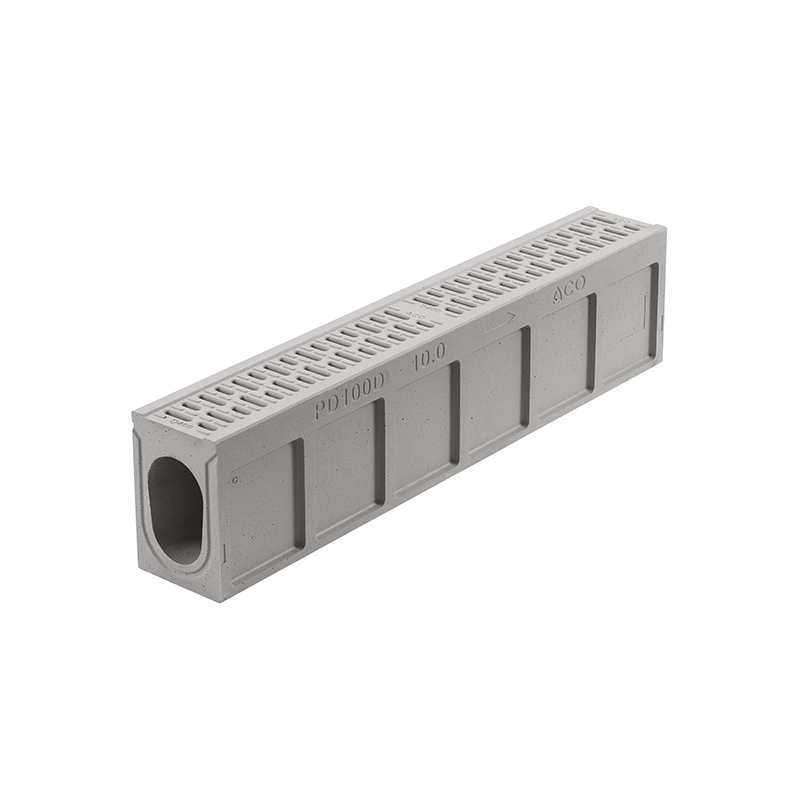

With a 185mm depth, 1000mm length and 150mm width, this one-piece ACO MonoDrain Channel Unit makes a safe, secure and effective water drainage solution. By coordinating a grate and base into one unit, you can minimise the risk of the grating being stolen or dislodged beneath the weight of traffic.

Faster to install than separate channel bases and grates, this ACO MonoDrain channel enhances integrity and long-term performance in D400 load class areas. Both the channel base and grate are manufactured from ACO's recycled polymer concrete, Vienite, which is highly durable and offers excellent stability. Alongside a sturdy, rigid option, it can endure traffic and stationary weight in numerous applications, including town centres and commercial developments, as well as HGV, car parks, and light-duty landscaping and pedestrian areas.

Features & Benefits: ACO MonoDrain 185mm x 150mm x 1000mm Channel - Grey

  • Manufactured from ACO's own recycled polymer concrete Vienite
  • 8mm Heelguard grate to diminish debris entry and danger to pedestrians
  • Quick and straightforward to install
  • Minimised risk of stolen or dislodged gratings
  • Safe, secure and effective surface water drainage
  • 1000mm length x 150mm width x 185mm depth
  • Grey colour

The 8mm Heelguard grate diminishes debris entry and danger to pedestrians, while the external face of the base helps embed it more securely into the concrete. By utilising this channel, you can simplify the installation and specification process while spending less time on-site. With an elegant grey colour to complement your project, a range of accessories are also available, such as gully units, foul air traps, lockable rodding access points and sumps, which allow you to get the most from this system.

ACO MonoDrain products ensure you can simplify the specification process and installation for less time on site.

Standards & Certification

  • Certified to: BS EN 1433-2002

Please note:

  • This unit is 1000mm long and 150mm wide and features no connectors or access. For maintenance and access, you will require a shallow depth access unit installed at every 5m of channel drainage.
  • ACO MonoDrain is unsuitable for public roads, highways and motorways. For this, we recommend ACO RoadDrain.

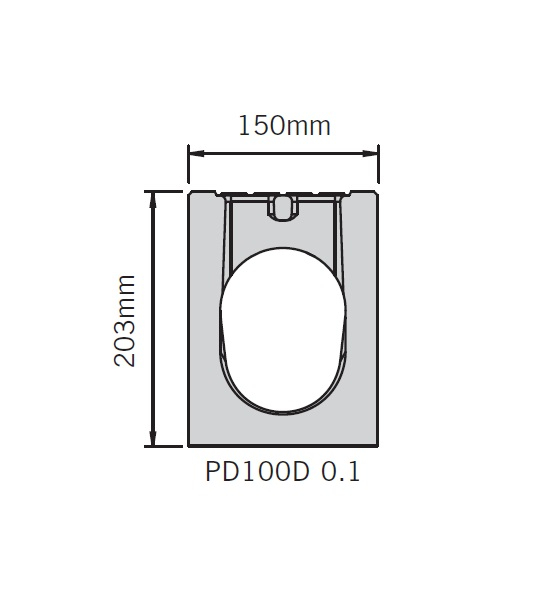

Dimensions

Length 1m Depth 185mm Width 150mm

Details

Material Vienite Product Type Channel Base and Grate Range MONODrain Load Rating D400
