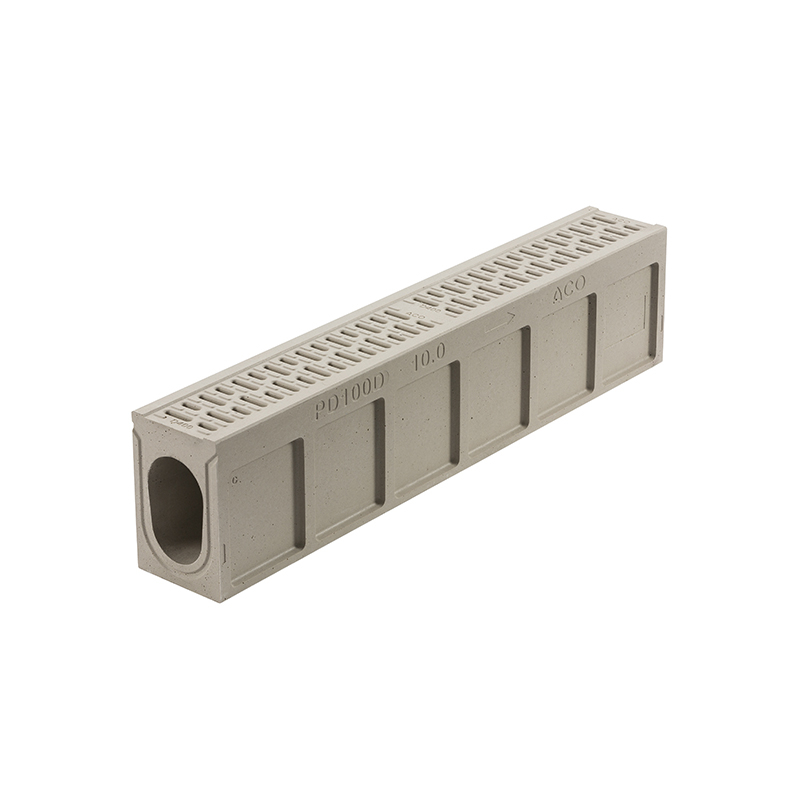

ACO MonoDrain 135mm x 150mm x 1000mm Channel - Natural

Code:
28640
Brand:
ACO

Measuring 1000mm long and 150mm wide, this MonoDrain Channel Unit is part of ACO's excellent single-piece, all-in-one channel drain system, perfect for your next domestic channel drainage project. It is 135mm deep, making it the shallowest depth available across the range. An ... Read More

View full product details
View questions about this product
£143.94 Incl. VAT
Earn points

SUPER Rewards Earn points and build more across our SUPERSTORES!

Find out more
Oops! Please select from the options
Est. Delivery: 3-5 Working Days
Shipping costs displayed in basket.
We can let you know when this product is back in stock.

This product is proving to be very popular and has unfortunately sold out.

Enter your email below and we'll notify you as soon as this product is back in stock:

For delivery Wednesday, Apr 23rd - order in:
days hrs mins secs
View Transport Policy

Next day delivery is subject to stock availability. If products on a 24 hours service are ordered alongside products NOT on a 24 hours service, this may delay your whole order.

All delivery charges are included in the final shopping basket and are dependent on the products Scottish Highlands & the Islands where additional shipping charges will apply.

Please note that not all products will incur an additional delivery charge to the Scottish Highlands & the Islands – this is based on the costs from the manufacturer, distributor or courier providing shipping on our behalf. If your delivery address is in the Scottish Highlands and Islands, a member of our helpline team will contact you prior to processing your order should an additional delivery charge apply.

While we make every effort to ensure orders are delivered by the date required, we cannot guarantee availability from the manufacturer or the manufacturer's delivery schedules.

Any variation to web delivery date given will be advised to you by email or telephone. If we are unable to make delivery because access is not possible, we reserve the right to make a failed delivery charge.

View full product details
View questions about this product
Create a wishlist

5% off all orders over £500 ex VAT - excluding sewage treatment plants

USE CODE: DRAIN5
CODE COPIED
Ends: 30 Apr 2025 23:59
Description Specification Downloads Q&A

Description

Measuring 1000mm long and 150mm wide, this MonoDrain Channel Unit is part of ACO's excellent single-piece, all-in-one channel drain system, perfect for your next domestic channel drainage project. It is 135mm deep, making it the shallowest depth available across the range. An all-in-one channel and grate with an unobtrusive natural finish, it is easy to fit, install and maintain, featuring a rating for D400 loads.

Linking grates and channels into a single safe, secure and effective unit, MonoDrain massively reduces the risk of the gratings dislodging under traffic weight or coming loose for other reasons. Channels are constructed using ACO's proprietary, tried and tested Vienite® material, ensuring high chemical resistance and build quality. MonoDrain bases also have external faces to bed into the concrete below soundly and securely, using a protective 8mm Heelguard to minimise debris entry and danger to pedestrians.

Features & Benefits: ACO MonoDrain 135mm x 150mm x 1000mm Channel - Natural

  • Rating for D400 loads
  • Combines the base and grate into a single unit, preventing dislodging
  • Excellent single-piece channel drainage system
  • Easy to install and maintain
  • Strong and durable Vienite® construction is ideal for longevity
  • Protective 8mm Heelguard to minimise debris entry and danger to pedestrians

The Vienite material offers stability, allowing grates to withstand traffic and stationery weight in various areas, including HGV parks, light-duty landscaping and pedestrian areas, town centres and commercial developments. ACO MonoDrain products ensure you can simplify the specification process and installation for less time on site.

Standards & Certification

  • Certified to: BS EN 1433-2002 Class D400

Please note:

  • This unit is 1000mm long and 150mm wide and features no connectors or access. For maintenance and access, you will require a shallow depth access unit installed at every 5m of channel drainage.
  • ACO MonoDrain is unsuitable for public roads, highways and motorways. For this, we recommend ACO RoadDrain.

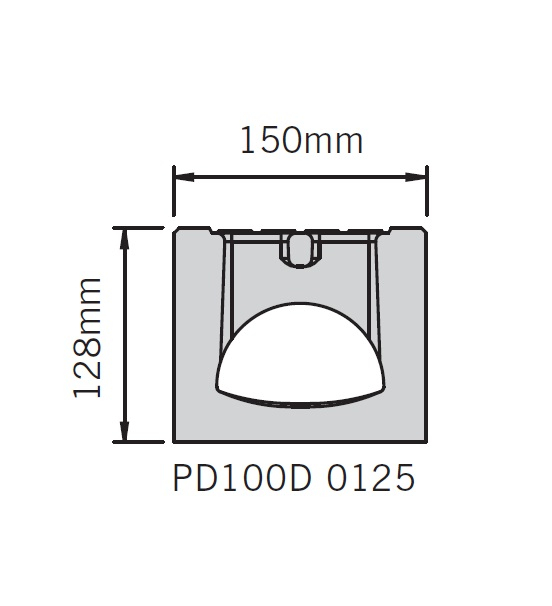

Dimensions

Length 1m Depth 128mm Width 150mm

Details

Material Concrete Product Type Channel Base and Grate Features Shallow Channel Range MONODrain
Load Rating D400
