PVC Infill accessory is inserted into the underside of the visible edge of the drainage channel and associated
component sections. PVC Infill can be site fitted or factory fitted if required. This accessory is recommended
when the installation is subject to wheeled loadings from trolleys or vehicles to prevent damage to the visible edge
of the drainage channel.

Description
The ACO Building Drainage Modular 125 stainless steel linear drainage system is a further development of the highly successful Modular Channel system. Taking full advantage of the significant investment in state-of-the-art manufacturing plant, ACO Building Drainage now can offer an improved performance, fully flexible stainless steel drainage system suitable for most applications off the shelf.

Please note: This product is not suitable for suspended timber floors.

•     Fully tested and classified to BS EN 1433 - Drainage Channels for Vehicular & Pedestrian Areas
•     CeMarking indicating that Modular 125 has met the Essential Requirements of BS EN 1433:
•     Load bearing capacity
•     Water tightness
•     Durability

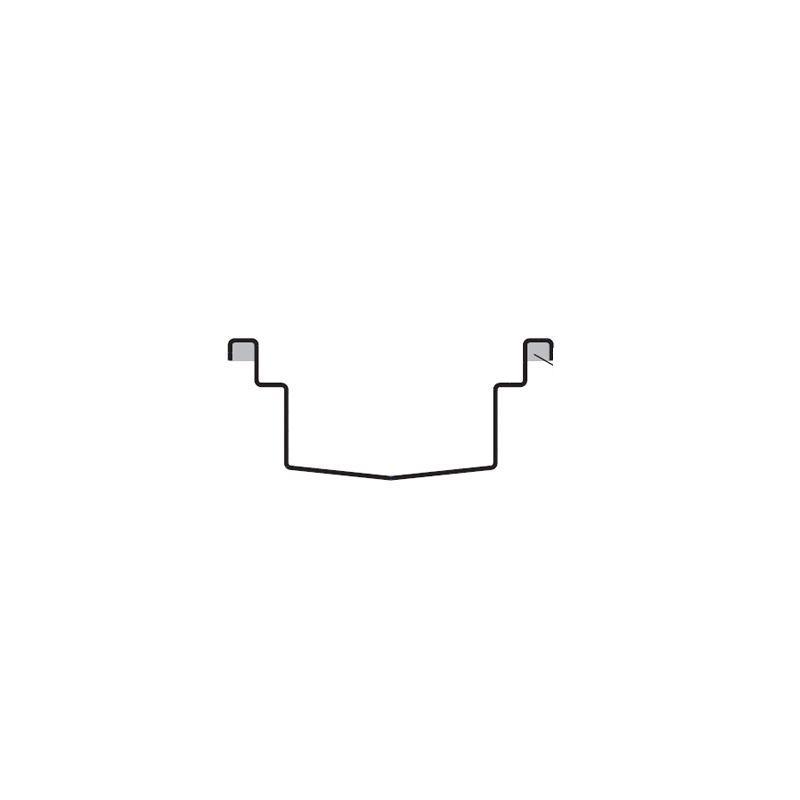

•     Vee-bottomed profiled channel for enhanced flow efficiency at low flow rates
•     Extended range of constant depth and sloping invert channels and accessories
•     Wide range of gratings, available with loading class A15 to C250 and including unique optional grating security locks
•     Vertical or horizontal gully option
•     Standard range of components available from stock

Note: Modular 125 channel system is an off-the-shelf, stocked and manufactured in Grade 304 Stainless Steel.

Modular 125 is available in 316 grade stainless steel only to order
