ACO KerbDrain SP380 Splayed Gully Top and Roddable Deep Base Unit

Product Code:
Est. Delivery: 3-5 Working Days
Shipping costs displayed in basket.
We can let you know when this product is back in stock.

This product is proving to be very popular and has unfortunately sold out.

Enter your email below and we'll notify you as soon as this product is back in stock:

Subject to stock availability, if products on a 24 hours service are ordered alongside products NOT on a 24 hours service, this may delay your whole order.

View Transport Policy

All delivery charges are included in the final shopping basket and are dependent on the products Scottish Highlands & the Islands where additional shipping charges will apply.

Please note that not all products will incur an additional delivery charge to the Scottish Highlands & the Islands – this is based on the costs from the manufacturer, distributor or courier providing shipping on our behalf. If your delivery address is in the Scottish Highlands and Islands, a member of our helpline team will contact you prior to processing your order should an additional delivery charge apply.

While we make every effort to ensure orders are delivered by the date required, we cannot guarantee availability from the manufacturer or the manufacturer's delivery schedules.

Any variation to web delivery date given will be advised to you by email or telephone. If we are unable to make delivery because access is not possible, we reserve the right to make a failed delivery charge.

Or call our friendly team on 01752 692 221

Product Description

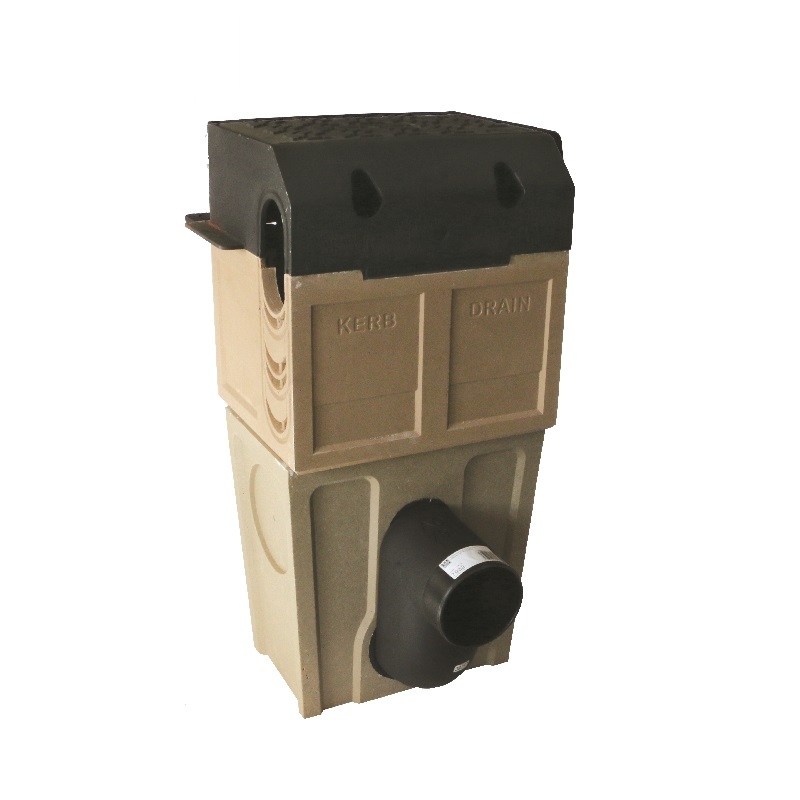

ACO's Splay KerbDrain gully unit is designed to provide the outfall connection to underground drainage or road gullies. These gullies come with a ductile iron cover/frame and a polymer concrete unit, as well as a roddable foul air trap.

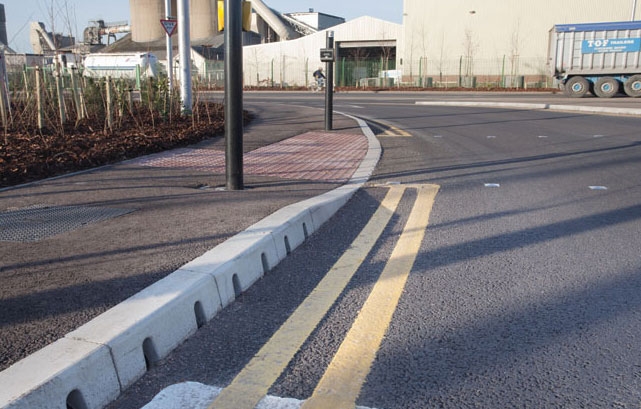

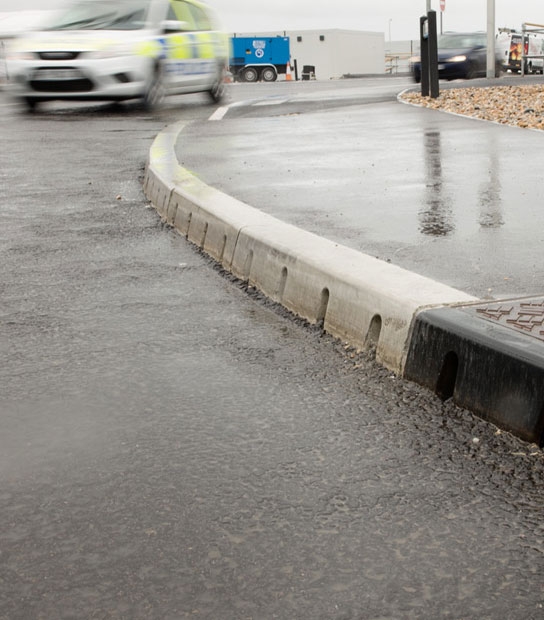

ACO Splay KerbDrain is a single unit comprised of a kerb and drainage system used on rural roads and highways.

Features & Benefits: ACO KerbDrain SP380 Splayed Gully Top and Roddable Deep Base Unit

  • Impact resistance 50% higher than OPC kerb units
  • Manufactured from sustainable material
  • Certified for all highways applications
  • Full range of problem-solving components for all sizes
  • Capacity choices optimise hydraulic performance
  • Award winning one-piece design
  • SUDS compliant
  • Simple watertight installations
  • Safe manual and mechanical handling
  • 4 High daily installation rate

Product Specification

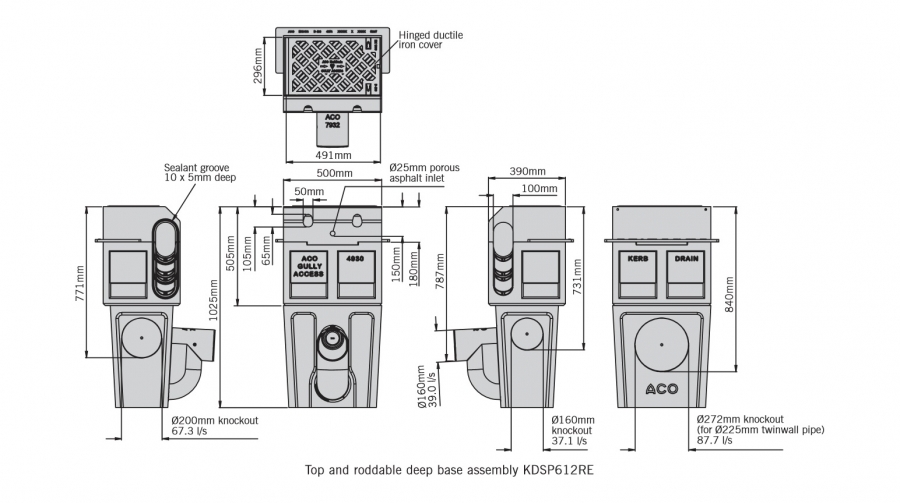

  • Length: 500mm
  • Width: 390mm
  • Depth: 1025mm
  • Invert: 787mm
  • Material: Concrete
  • Weight Class: C250 & D400

Please note:

  • Fully compliant with the Specification for Highway Works
  • Kitemarked to BS EN 1433-2002
  • Certified by a notified body to BS EN 1433-2002 Load Class D 400
  • CE marked by a notified body

Product Documents


WIDTH 390mm LENGTH 500mm


Depth 1025mm Material Concrete Weight Class C250
