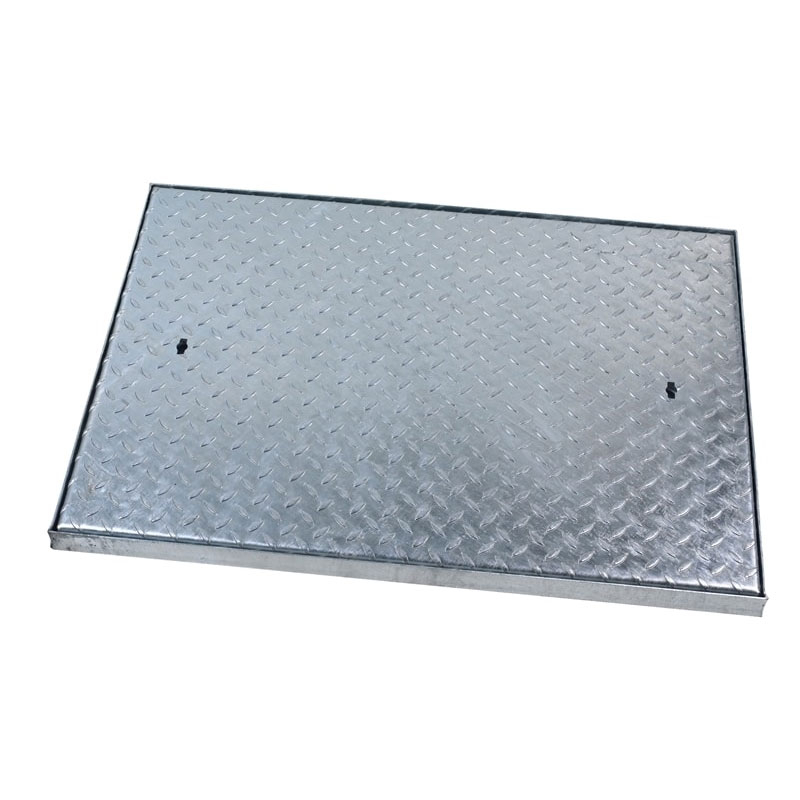

Clark Drain 5 Tonne GPW Steel Lidded Manhole Cover and Frame 750 x 600 x 50mm

Code:
C9BG

From Clark Drain's range of Chequer Plate Covers, this GPW Steel Lidded Manhole Cover and Frame is made from mild steel that has been galvanised for increased strength and durability. It has a solid top with Durbar tread, as well as a load rating classification of 5 tonne GPW ...Read More

£160.00 Incl. VAT
Oops! Please select from the options
Est. Delivery: 5-7 Working Days
Shipping costs displayed in basket.
We can let you know when this product is back in stock.

This product is proving to be very popular and has unfortunately sold out.

Enter your email below and we'll notify you as soon as this product is back in stock:

For delivery Thursday, Apr 18th - order in:
days hrs mins secs
Subject to stock availability, if products on a 24 hours service are ordered alongside products NOT on a 24 hours service, this may delay your whole order.
View Transport Policy

All delivery charges are included in the final shopping basket and are dependent on the products Scottish Highlands & the Islands where additional shipping charges will apply.

Please note that not all products will incur an additional delivery charge to the Scottish Highlands & the Islands – this is based on the costs from the manufacturer, distributor or courier providing shipping on our behalf. If your delivery address is in the Scottish Highlands and Islands, a member of our helpline team will contact you prior to processing your order should an additional delivery charge apply.

While we make every effort to ensure orders are delivered by the date required, we cannot guarantee availability from the manufacturer or the manufacturer's delivery schedules.

Any variation to web delivery date given will be advised to you by email or telephone. If we are unable to make delivery because access is not possible, we reserve the right to make a failed delivery charge.

Create a wishlist

"Customer service spot on"

Andy B

Description

From Clark Drain's range of Chequer Plate Covers, this GPW Steel Lidded Manhole Cover and Frame is made from mild steel that has been galvanised for increased strength and durability. It has a solid top with Durbar tread, as well as a load rating classification of 5 tonne GPW and the ability to hold 12.5kN for 30 seconds (Load Test Data).

Features & Benefits: Clark Drain 5 Tonne GPW Steel Lidded Manhole Cover and Frame 750 x 600 x 50mm

  • Made from mild steel
  • Solid top with Durbar tread
  • Galvanised for increased strength and durability
  • Load rating classification of 5 tonnes GPW
  • Can hold 12.5kN for 30 seconds (Load Test Data)
  • Weight of 50kgs
  • 810mm length x 660mm width x 50mm height (external dimensions)
  • 750mm length x 600mm width clear opening

Standards & Certification

  • Applicable Standard(s): FACTA (clauses no. 7.0, 7.2, 7.2.1, 7.2.3 & 7.3.3)
  • Mild Steel: to BS EN 1449: 1991/EN 10025: 2004
  • Galvanising: to BS EN 1461: 2009
  • Load Test Data: 12.5kN held for 30 seconds
  • Load Rating Classification: 5 tonne GPW

Dimensions

Length 750mm Depth 50mm Width 600mm

Details

Material Galvanised Steel Product Type Manhole Cover and Frame Maximum Weight Load 5 tonnes Profile Solid Top
Internal Dimensions 750mm x 600mm External Dimensions 810mm x 660mm Load-Bearing Strength 5 Tonnes

Questions & Answers

Question:

Is it double sealed or single sealed?

Answer:

This product is single sealed, however if the double sealed is required, this is code C9BG3

Question:

Is the Clark Drain 5 Tonne GPW steel lidded manhole cover and frame suitable for a septic tank cover?

Answer:

The Clark Drain 5 Tonne GPW steel lidded manhole cover and frame would not be suitable to sit over a septic tank. You would need a triple sealed cover to prevent any gases and odours from escaping.
