WPL Diamond DMS2 Sewage Treatment Plant - 1-6 Person Tank

Code:
WPL-DMS2
Free UK Delivery

WPL Diamond small package wastewater treatment plant is suitable for domestic and commercial properties in all ground conditions where mains drainage is unavailable. Designed not only to give you the highest quality product on the market, but also to provide you with a discree... Read More

£2,150.00 Incl. VAT Earn points

SUPER Rewards Earn points and build more across our SUPERSTORES!

Find out more
Oops! Please select from the options
Est. Delivery: 2-3 Working Days
Shipping costs displayed in basket.
We can let you know when this product is back in stock.

This product is proving to be very popular and has unfortunately sold out.

Enter your email below and we'll notify you as soon as this product is back in stock:

For delivery Tuesday, Jul 16th - order in:
days hrs mins secs
Subject to stock availability, if products on a 24 hours service are ordered alongside products NOT on a 24 hours service, this may delay your whole order.
View Transport Policy

All delivery charges are included in the final shopping basket and are dependent on the products Scottish Highlands & the Islands where additional shipping charges will apply.

Please note that not all products will incur an additional delivery charge to the Scottish Highlands & the Islands – this is based on the costs from the manufacturer, distributor or courier providing shipping on our behalf. If your delivery address is in the Scottish Highlands and Islands, a member of our helpline team will contact you prior to processing your order should an additional delivery charge apply.

While we make every effort to ensure orders are delivered by the date required, we cannot guarantee availability from the manufacturer or the manufacturer's delivery schedules.

Any variation to web delivery date given will be advised to you by email or telephone. If we are unable to make delivery because access is not possible, we reserve the right to make a failed delivery charge.

Create a wishlist

£100 off WPL Diamond DMS sewage treatment plants

USE CODE: DMS100
CODE COPIED
Ends: 31 Jul 2024 23:59

Description

WPL Diamond small package wastewater treatment plant is suitable for domestic and commercial properties in all ground conditions where mains drainage is unavailable. Designed not only to give you the highest quality product on the market, but also to provide you with a discreet, efficient and cost-effective solution for the longevity of the plant.

WPL Diamond is better designed for modern day living than a septic tank system; with a faster process and a more environmentally friendly end result, it is the ideal replacement solution. No need for chemicals, allowing final effluent to be safely discharged to a soakaway or watercourse.

This is a small and compact wastewater treatment plant designed for properties that house 1 person or up to 20 (people) occupancy equivalent; ideal for new builds and replacement of existing septic tank systems and package sewage treatment plants.

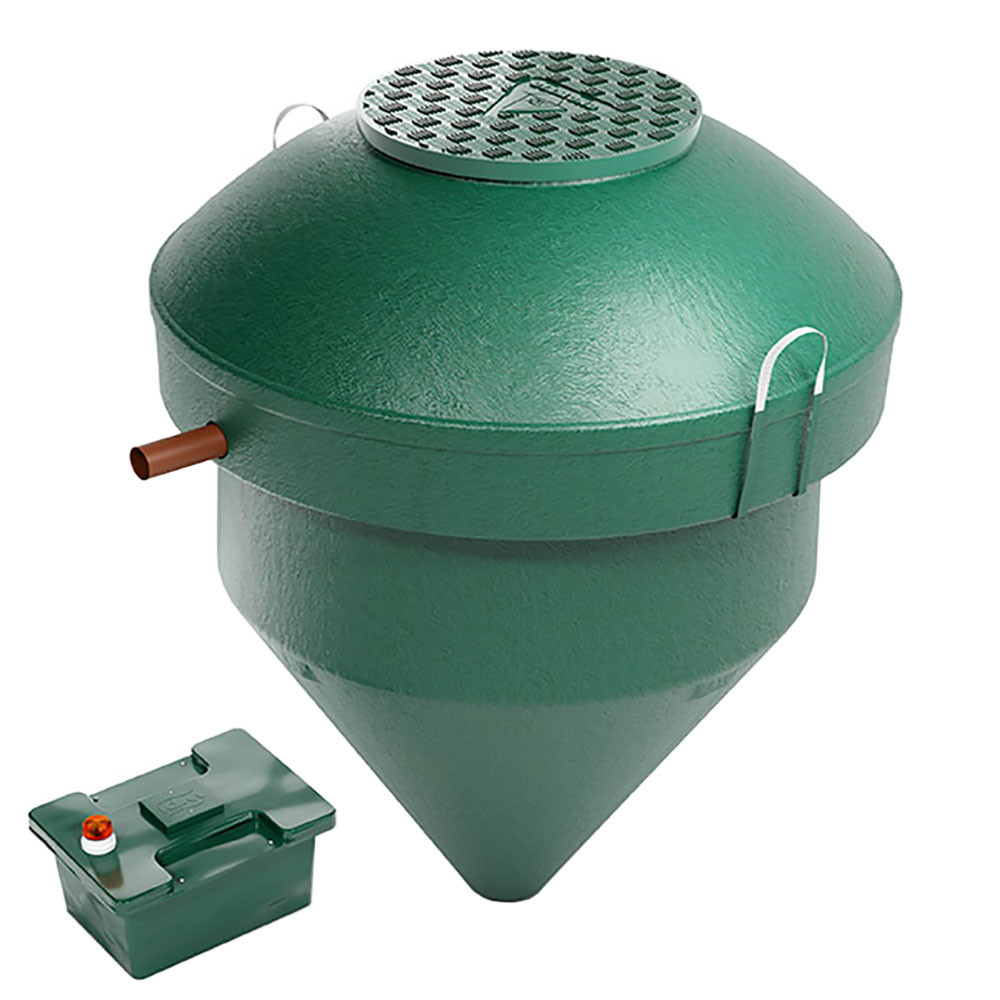

The kiosk with a small footprint and lid opening, comes complete with alarm mounted beacon and reliable blowers as standard. Additional blower options available on request.

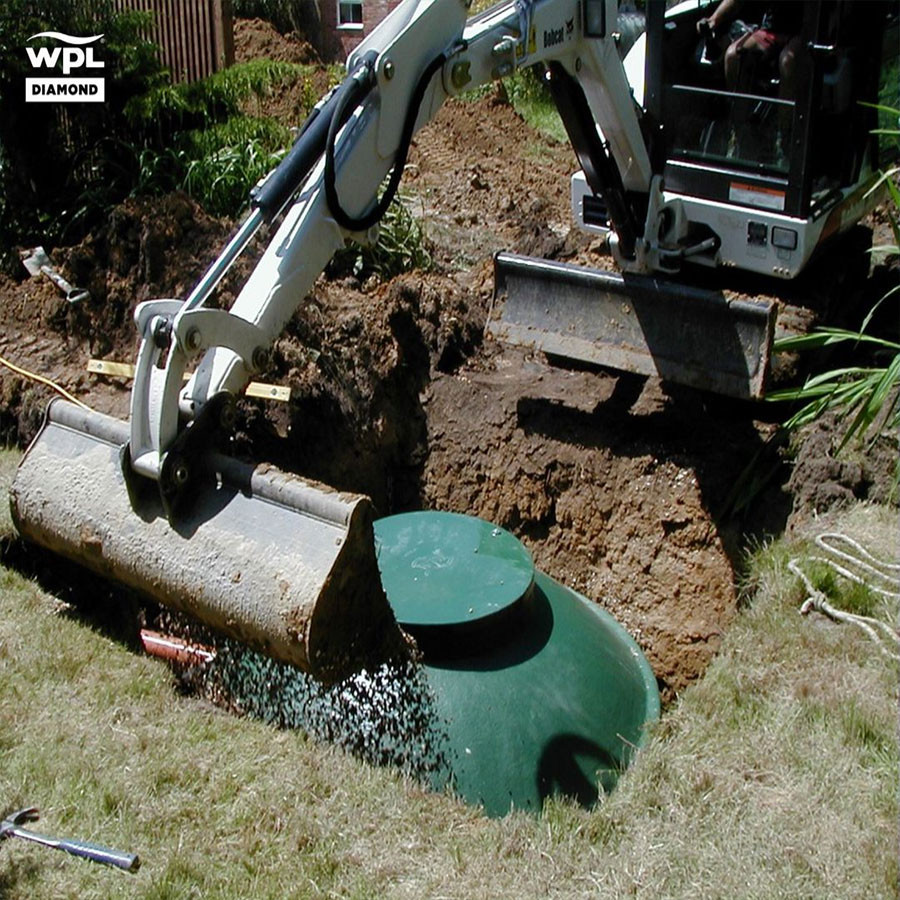

The WPL Kiosk can be installed above or below ground dependent on-site conditions.

WPL Diamond DMS Features

  • 25 years warranty
  • Up to 3 years de-sludge intervals
  • Compact design, minimal excavation
  • Installed in ‘wet’ or ‘dry’ ground conditions
  • Flushest lid to the ground

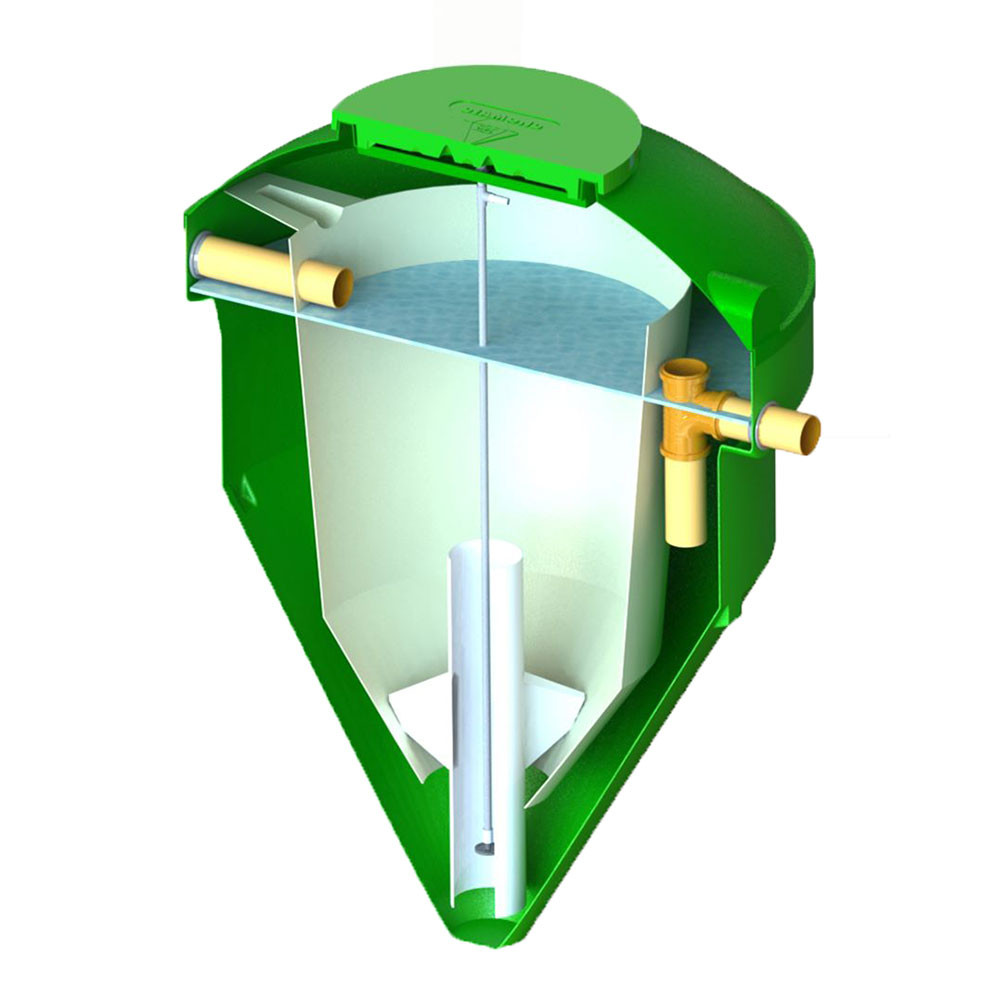

  • No moving parts within the tank
  • No odour
  • Alarm beacon included
  • Original WPL Diamond, patent granted
  • Robust design, UK manufactured
  • CE mark, EN12566-3 approval
  • Effluent standard; as a minimum: 20mg/l BOD; 30mg/l SS; 20mg/l NH3
  • Load tested and water tight
  • Tank sizes to meet individual requirements
  • Part H2 UK building regs compliant
  • LABC registered
  • Meets General Binding rules
  • Designed using British Water Code of practice flows & Loads
  • ISO 14001, ISO 9001, OHSAS 18001

Technical

Population range: 1-6
Blower motor size: 0.08kw
Total power consumption: 0.08
Max outside diameter: 1.74m
Inlet invert depth: 630mm
Max height/in ground depth: 1.61m
Total capacity: 2270ltr
Weight empty: 155kg

Dimensions

Length 630mm Depth 844mm Width 1740mm

Details

Product Type Sewage Treatment Plant Capacity 1-6 Person Code DMS2 Population 6 Person
Invert 630mm Domestic Or Commercial Commercial
Domestic
Gravity Or Pumped Gravity Install Type Standard

Questions & Answers

Question:

What is the outlet depth ? Do they do pumped outlet for them s model ?

Answer:

I can confirm that the outlet is positioned 100mm below the inlet pipe.

WPL offer a pump that can be purchased in addition to the sewage treatment plant which will be external - the product code for this is DD-652-851.

Question:

If the lid is taken off, will that be sufficient for a sample to be taken?

Answer:

The tank itself can not be used for samples, you will need the WPL sample chamber or if you have the WPL pump chamber this can be used.

Question:

I am considering installing a WPL Diamond DMS2 unit to replace a damaged septic tank in a holiday home. I have the necessary permissions etc. - but would like to check that the plant is appropriate for use in a situation where it will not be in use full-time. The blower can be left running ok, but is it a problem that there might be period of, say, 3-4 weeks when the house is unoccupied?

Answer:

WPL Diamond tanks are able to function at 1% capacity so this wont be an issue.
