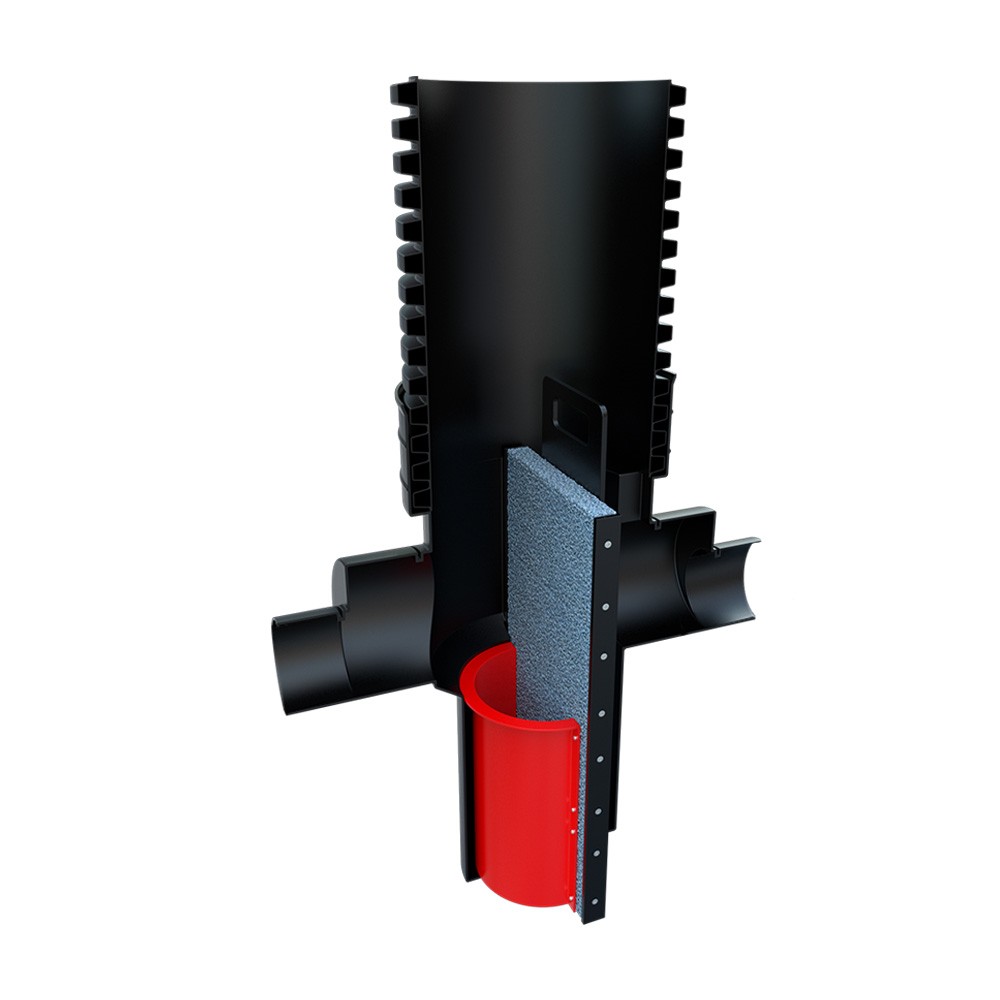

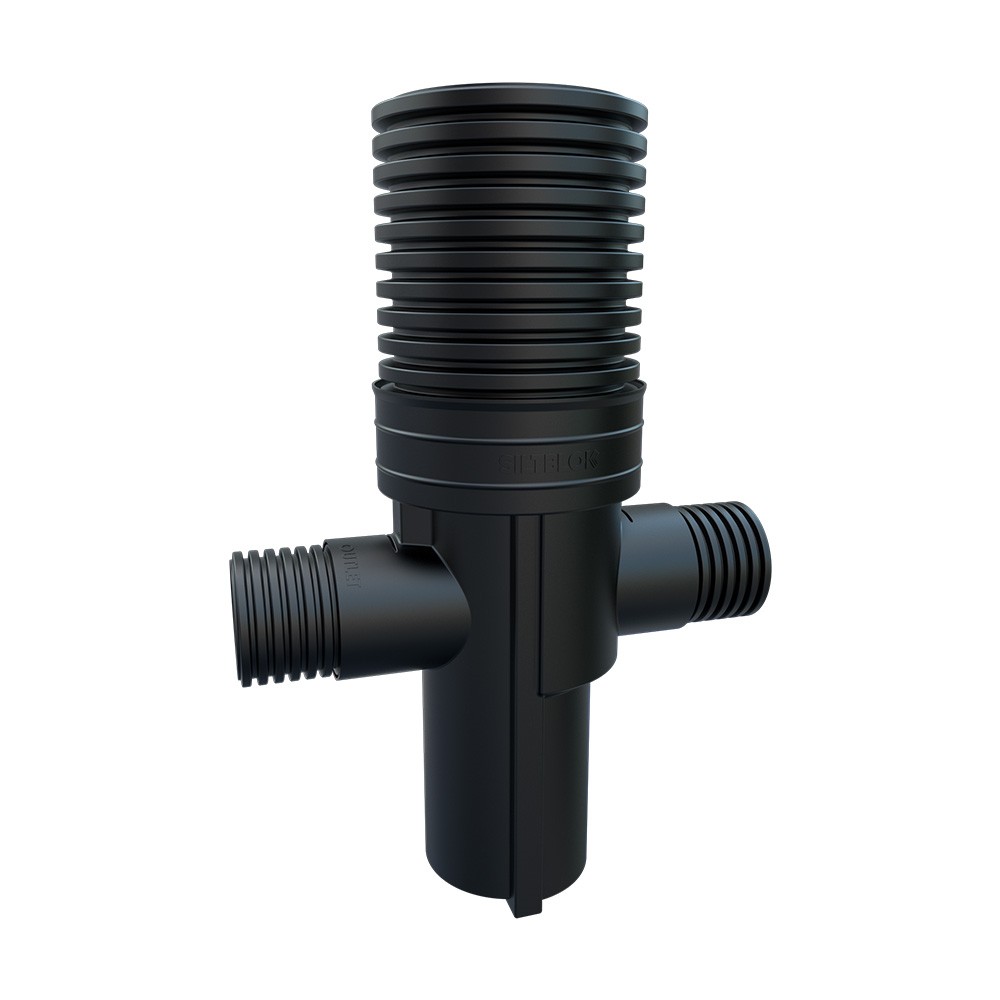

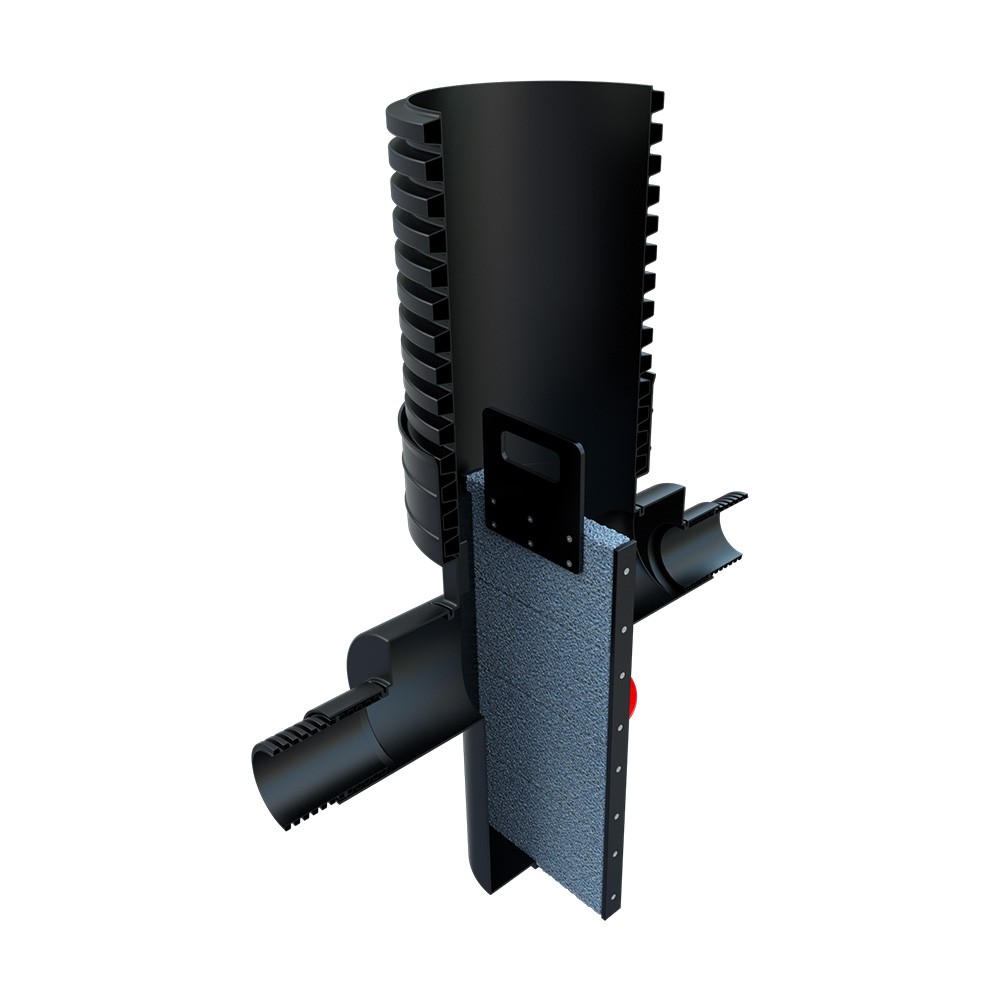

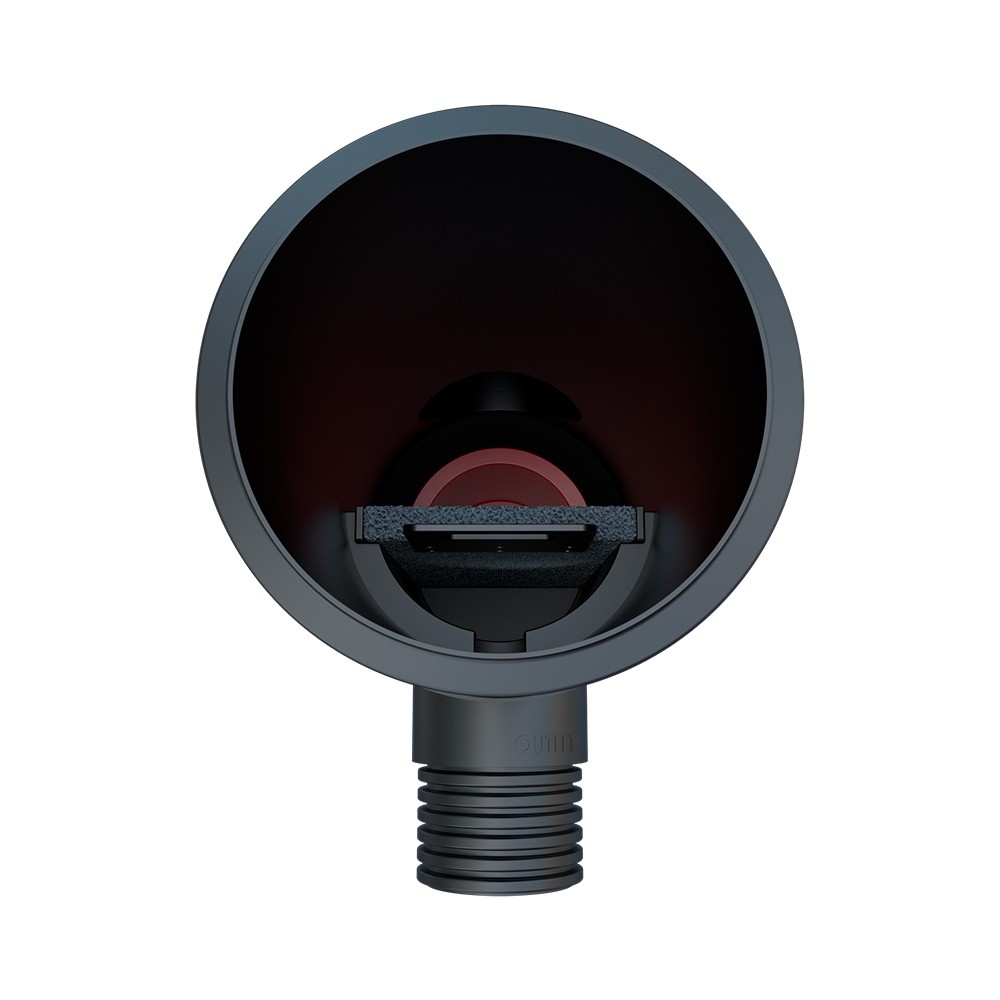

Turtle Siltblok 500 Series Silt Filtration System with 150mm/225mm Connections

Code:
PARENT-TURTLE-SB500
Brand:

This item is out of stock and not available to purchase.

The Siltblok SB500 is a pre-assembled silt filtration chamber designed for effective sediment control. Featuring a 450mm diameter and utilizing a 100% recycled thermoplastic block, it filters out suspended solids, including silt up to 0.03mm, ensuring clean water discharge. Equ... Read More

Create a wishlist

"There is not too much to say"

atkinson

Description

The Siltblok SB500 is a pre-assembled silt filtration chamber designed for effective sediment control. Featuring a 450mm diameter and utilizing a 100% recycled thermoplastic block, it filters out suspended solids, including silt up to 0.03mm, ensuring clean water discharge.

Equipped with 150mm or 225mm main channel socket connections, it also includes a basket with a 17.5kg capacity. Ideal for developments with surface water runoff up to 1200m2, the SB500 is available in depths of 1480mm, 1990mm, and 2400mm, offering flexibility and ease of installation.

Features & Benefits: Turtle Siltblok 500 Series Silt Filtration System with 150mm/225mm Connections

  • Main Channel Pipework - 150mm or 225mm Twinwall outlet at 0 degrees and inlet at 180 degrees

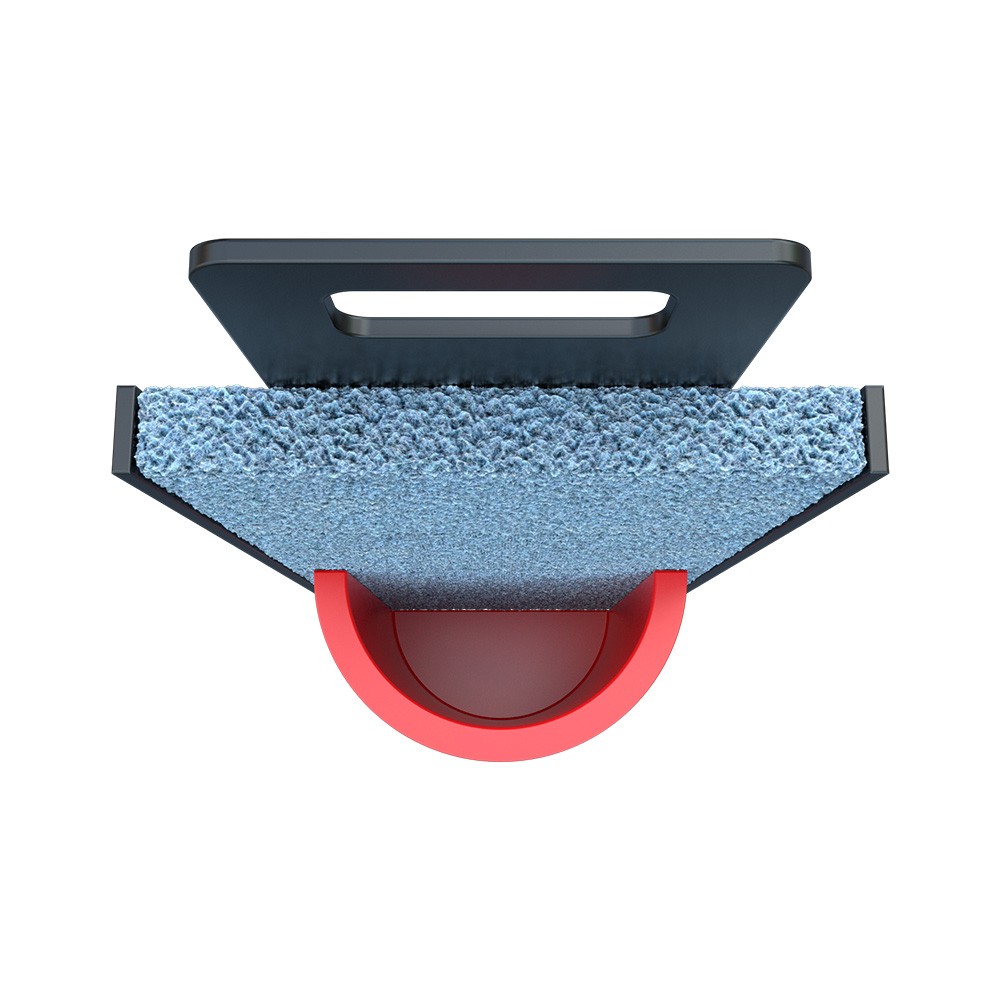

  • 100% recycled thermoplastic block
  • 480mm sump depth

Dimensions

Depth 1.48m
1.99m
2.4m

Details

Material Plastic Product Type Silt Trap Diameter 450mm
