Titan D400 Ducting Access Chamber - 150mm Depth

Code:
TITAN-D400-ACCESS-150

Made from reprocessed, co-polymer polypropylene, this Titan Ducting Access Chamber is a resilient inspection chamber that effortlessly surpasses the demands of BSEN124 D400 load rating, showcasing its remarkable durability and adaptability across a vast spectrum of application...Read More

from
£34.80 Incl. VAT
Oops! Please select from the options
Delivery from: 1-2 Working Days
Shipping costs displayed in basket.
We can let you know when this product is back in stock.

This product is proving to be very popular and has unfortunately sold out.

Enter your email below and we'll notify you as soon as this product is back in stock:

For delivery Wednesday, Mar 20th - order in:
days hrs mins secs
Subject to stock availability, if products on a 24 hours service are ordered alongside products NOT on a 24 hours service, this may delay your whole order.
View Transport Policy

All delivery charges are included in the final shopping basket and are dependent on the products Scottish Highlands & the Islands where additional shipping charges will apply.

Please note that not all products will incur an additional delivery charge to the Scottish Highlands & the Islands – this is based on the costs from the manufacturer, distributor or courier providing shipping on our behalf. If your delivery address is in the Scottish Highlands and Islands, a member of our helpline team will contact you prior to processing your order should an additional delivery charge apply.

While we make every effort to ensure orders are delivered by the date required, we cannot guarantee availability from the manufacturer or the manufacturer's delivery schedules.

Any variation to web delivery date given will be advised to you by email or telephone. If we are unable to make delivery because access is not possible, we reserve the right to make a failed delivery charge.

Create a wishlist

"Great service fast delivery"

David Hanson

Description

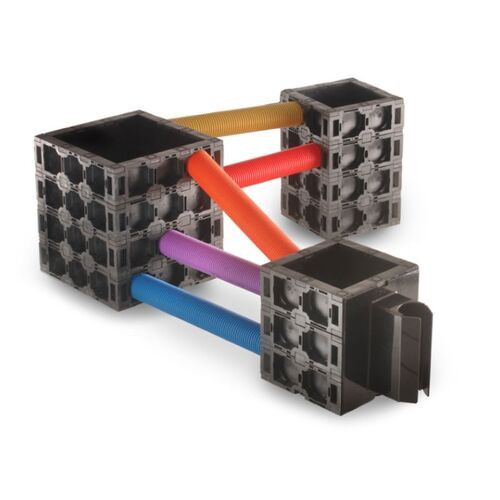

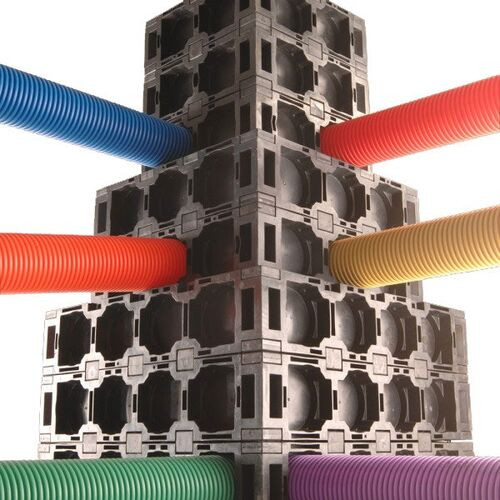

Made from reprocessed, co-polymer polypropylene, this Titan Ducting Access Chamber is a resilient inspection chamber that effortlessly surpasses the demands of BSEN124 D400 load rating, showcasing its remarkable durability and adaptability across a vast spectrum of applications and eliminating the necessity for a concrete surround.

When setting up this chamber, ensure the opening is approximately 100mm deeper than the chamber's required depth, incorporating the lid and frame. The width at the base of the opening should closely match the exterior dimensions of the Titan box section, allowing for an approximate 25mm allowance for adjustment. With the pavement level, maintain an excess of 100mm to 150mm over the Titan box section being utilised.

Features & Benefits: Titan D400 Ducting Access Chamber - 150mm Depth

  • Made from reprocessed, co-polymer polypropylene
  • Exceeds BSEN124 D400 load rating
  • Eliminates the need for concrete surround
  • 150mm depth
  • Suitable for a wide range of applications
  • Heavy-duty construction
  • Each wall contains entry ports at 110mm

The chamber's foundation can be created by employing a C30 dry mix at a 100mm depth, leaving a small aperture in the base to function as a natural soakaway. For optimal height and tilt customisation, consider utilising a galvanised steel frame with a composite lid. By situating the frame within the chamber and lifting it to the desired level, you can achieve a 100mm adjustment with each frame. Envelop the frame with C30 concrete for added stability.

Pole boxes come in two standard sizes: 300mm x 300mm x 450mm deep and 450mm x 450mm x 450mm deep. However, custom sizes are also available upon request. The pole boxes securely encircle the traffic signal through a specially fabricated wrap-around jaw, and concreting the traffic signal pole is strongly advised for optimal performance and support.

Please note:

  • The images are provided by Plastech Ltd.

Dimensions

Length 300mm
450mm
600mm
Depth 150mm Width 300mm
450mm
600mm

Details

Weight Class D400 Ducting Type Chamber Height 300mm
450mm
600mm
Type Flexible Ducting
Internal Dimensions 300mm x 300mm
450mm x 300mm
450mm x 450mm
600mm x 450mm
600mm x 600mm
Application Underground Access
