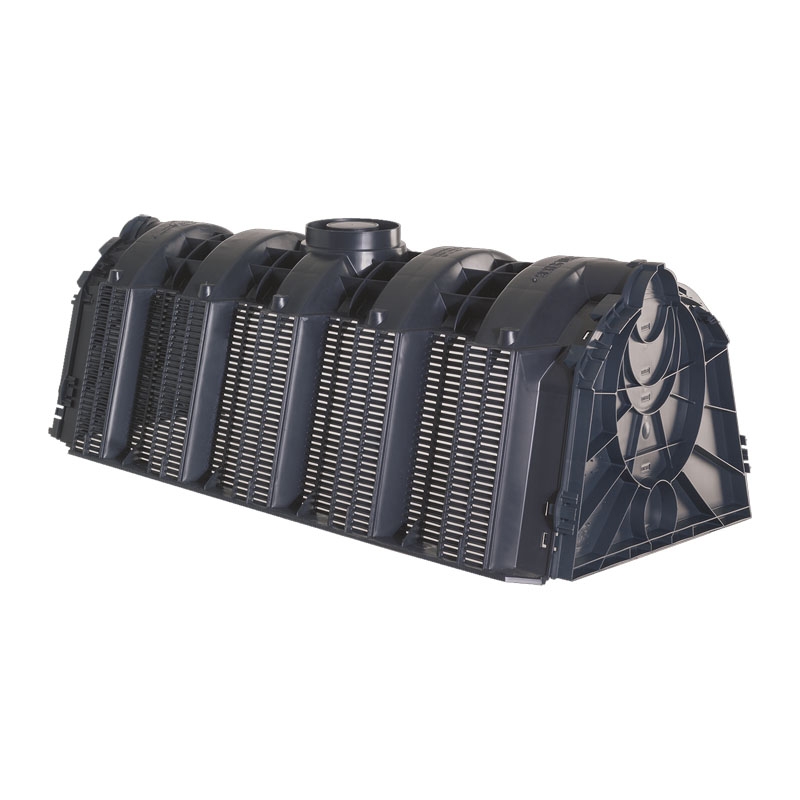

Graf Infiltration Tunnel for Soakaways and Attenuation

Code:
230010
Brand:
Graf

Make sure you have a high-performing drainage solution for your property with the Graf infiltration tunnel. Combine it with your soakaway and attenuation to create a tunnel with a permanent load level of up to 59kN/sqm. Ideal for lorry-bearing. Suited to private or rural area... Read More

View full product details
Ask a question about this product
£82.64 Incl. VAT
Earn points

SUPER Rewards Earn points and build more across our SUPERSTORES!

Find out more
Oops! Please select from the options
PayPal

Pay in 3 interest-free payments of £0.00

Learn more
Est. Delivery: 3-5 Working Days
Shipping costs displayed in basket.
We can let you know when this product is back in stock.

This product is proving to be very popular and has unfortunately sold out.

Enter your email below and we'll notify you as soon as this product is back in stock:

For delivery Wednesday, May 20th - order in:
days hrs mins secs
View Transport Policy

Next day delivery is subject to stock availability. If products on a 24 hours service are ordered alongside products NOT on a 24 hours service, this may delay your whole order.

All delivery charges are included in the final shopping basket and are dependent on the products Scottish Highlands & the Islands where additional shipping charges will apply.

Please note that not all products will incur an additional delivery charge to the Scottish Highlands & the Islands – this is based on the costs from the manufacturer, distributor or courier providing shipping on our behalf. If your delivery address is in the Scottish Highlands and Islands, a member of our helpline team will contact you prior to processing your order should an additional delivery charge apply.

While we make every effort to ensure orders are delivered by the date required, we cannot guarantee availability from the manufacturer or the manufacturer's delivery schedules.

Any variation to web delivery date given will be advised to you by email or telephone. If we are unable to make delivery because access is not possible, we reserve the right to make a failed delivery charge.

View full product details
Ask a question about this product
Create a wishlist

"Worth every penny "

Mike Graham
Description Specification Downloads Q&A

Description

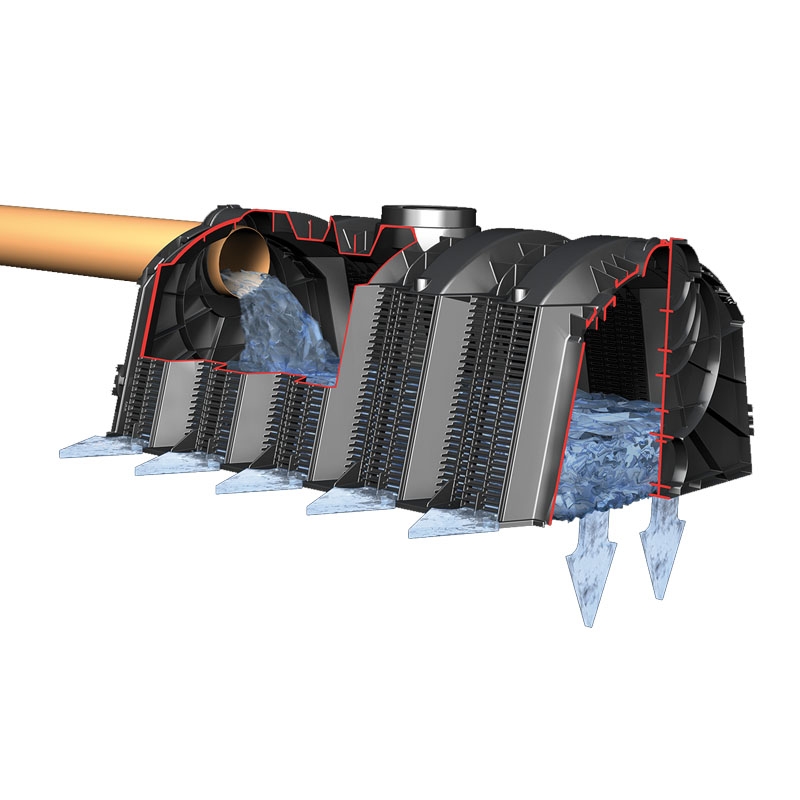

Make sure you have a high-performing drainage solution for your property with the Graf infiltration tunnel. Combine it with your soakaway and attenuation to create a tunnel with a permanent load level of up to 59kN/sqm. Ideal for lorry-bearing.

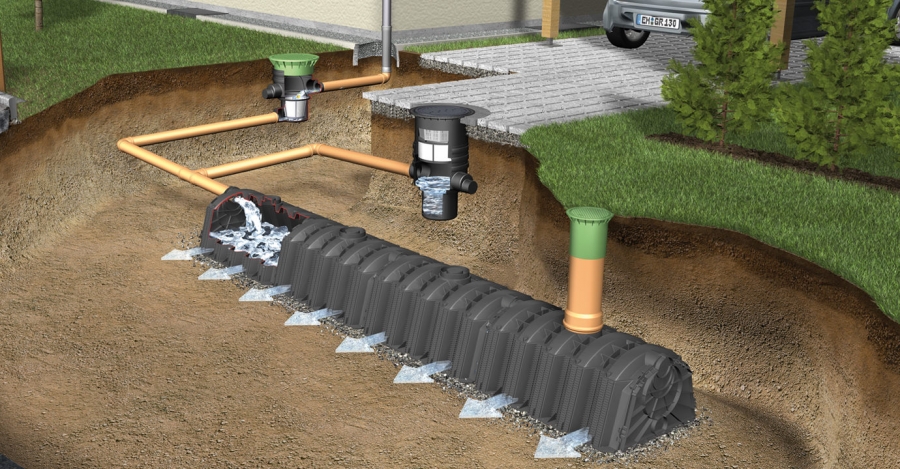

Suited to private or rural areas, the system consists of one or several tunnel modules with two end plates to extend as needed. The laying is realised in one or more lines at the same level.

Features & Benefits: Graf Infiltration Tunnel for Soakaways and Attenuation

  • Suited to private or rural areas
  • Consists of one or several tunnel modules
  • Comes with two end plates that can be extended
  • Permanent load level up to 59kN/sqm
  • Suited to lorry-bearing
  • Can be combined with soakaway and attenuation

The weight of a single module is 11 kilos to ensure handling is much more efficient.

Please note:

  • Product does not have end caps and must be bought separately.

Dimensions

Length
1160mm
Width
800mm

Details

Height
510mm
Load-Bearing Strength
6 Tonnes

Questions & Answers

Question:

would these be suitable 3mtrs below ground on chalk bed rock ?

Answer:

The Graf Infiltration Tunnel is designed for use in various ground conditions and can be placed at different depths. However, for specific cases such as placement 3 meters below ground on chalk bedrock, the suitability would depend on factors like soil stability, water flow, and load above the installation. Unfortunately, we don't have specific information on using the tunnel in these conditions. For more detailed technical information about the product, you may want to consult the Technical Information document which might provide some guidance. Here's the link: Graf Infiltration Tunnel Data Sheet. Another option is to consult with a local engineer or the Graf technical team to ensure the product meets your specific requirements.

Question:

Does this comply with the General Binding Rules for discharge to ground for a domestic sewage treatment plant?

Answer:

This would be determined by your local authority.

Question:

How many cubic metres does this hold?

Answer:

Graf are unable to advice on cubic metres, but have advised it is 300L capacity
