Took Kit Includes Harmer Duomat Fixing Tool - 9Nm torque setting : 3900 Rachet Handle 1/2 Drive : 110000 Torque Wrench 1/2" Driver - 4Nm - 40Nm torque range : 110001 10mm 1/2" Drive Socket : 110007 13mm 1/2" Drive Socket : 110002 18mm 1/2" ...Read More

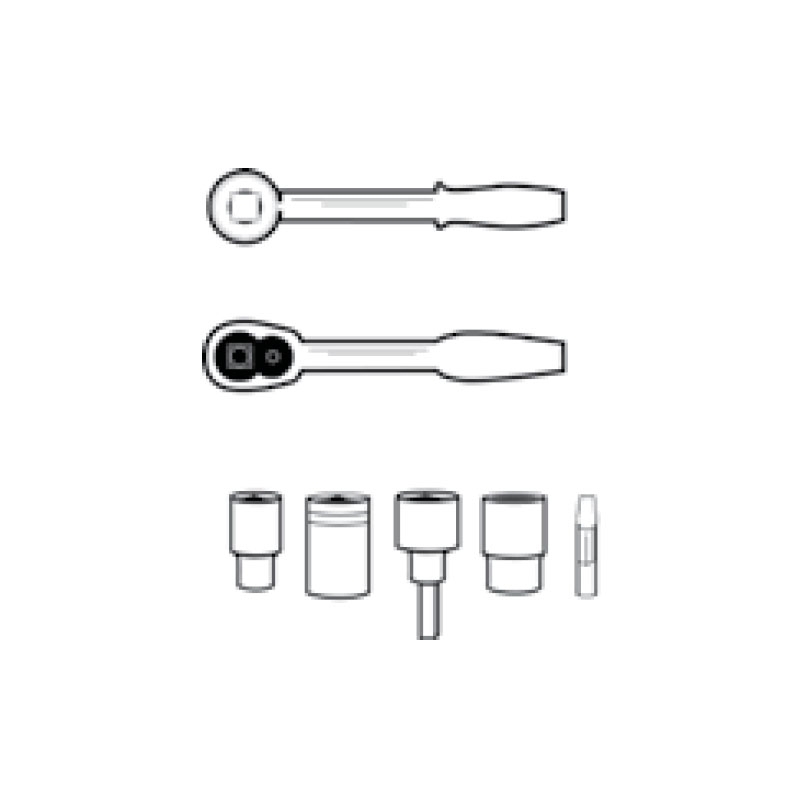

Took Kit Includes
Harmer Duomat Fixing Tool - 9Nm torque setting : 3900
Rachet Handle 1/2 Drive : 110000
Torque Wrench 1/2" Driver - 4Nm - 40Nm torque range : 110001
10mm 1/2" Drive Socket : 110007
13mm 1/2" Drive Socket : 110002
18mm 1/2" Drive Socket : 110003
19mm 1/2" Drive Socket : 110004
5mm Allen Key 1/2" Drive Socket : 110008
6mm Allen Key 1/2" Drive Socket : 110005
8mm Allen Key 1/2" Drive Socket : 110013
10mm Allen Key 1/2" Drive Socket : 110012
14mm Allen Key 1/2" Drive Socket : 110014
10mm Flat Bit with 5/16" Hexagonal Shank : 110006
Torque Wrench 3/8" Drive - 4Nm - 20Nm torque range : 110009
5mm Allen Key 3/8" Drive Socket : 110010
6mm Allen Key 3/8" Drive Socket : 110011
Description
Harmer SML is a lightweight, dry jointed pipework system at the leading edge of cast iron technology. BBA Agrément Certified and fully compliant with BS EN 877, Kitemark certification and with CE Mark conformity, this proven system has more than 30 years' use throughout Europe.
Applications
Installation & Fixing
Assembled by means of twin screw couplings
Secure socketless fixing between pipe and fitting
No special installation equipment required
Epoxy coatings ensure pipes and fittings need minimal maintenance over lifetime of installation
Performance
Agrément certified and meets European Standard BS EN 877
CE Mark: European product conformity to harmonised standard BS EN 877 in accordance with Construction Products Regulation 2013
Kitemark Certification in accordance with BS EN877
Lightweight, strong and durable
Excellent noise attenuation, tested to BS EN 14366: 2004
Non-combustible – fire protection collars not necessary
High tensile strength
Inherent resistance to external accidental damage and vandalism
Quick to assemble
100% recyclable
Materials & Finishes
Pipes and fittings manufactured in grey iron to DIN 1691 (exceeds BS 1452 Grade 150 ISO 185 Grade 15)
Couplings are manufactured in stainless steel and ductile cast iron
Pipes exterior have a primer coat, minimum thickness 40 µm
Pipes interior have an epoxy coating with a minimum thickness of 120 µm
Fittings are coated externally and internally with an epoxy coating, minimum thickness 60 µm
