Silt Guard 500mm Silt Trap for 160mm Pipework with Filter Basket and Access Cover

Code:
SS500160
Brand:

The Silt Guard Range from Turtle Enviro has been designed for the catchment and removal of silt and debris from the run off from impermeable and hard standing surface areas, such as: roofs, path and driveways, patios, car parks, roads and highways. Installation of a Silt Guard... Read More

£485.00 Incl. VAT Earn points

SUPER Rewards Earn points and build more across our SUPERSTORES!

Find out more
Oops! Please select from the options
Est. Delivery: 3-5 Working Days
Shipping costs displayed in basket.
We can let you know when this product is back in stock.

This product is proving to be very popular and has unfortunately sold out.

Enter your email below and we'll notify you as soon as this product is back in stock:

For delivery Wednesday, Jul 24th - order in:
days hrs mins secs
Subject to stock availability, if products on a 24 hours service are ordered alongside products NOT on a 24 hours service, this may delay your whole order.
View Transport Policy

All delivery charges are included in the final shopping basket and are dependent on the products Scottish Highlands & the Islands where additional shipping charges will apply.

Please note that not all products will incur an additional delivery charge to the Scottish Highlands & the Islands – this is based on the costs from the manufacturer, distributor or courier providing shipping on our behalf. If your delivery address is in the Scottish Highlands and Islands, a member of our helpline team will contact you prior to processing your order should an additional delivery charge apply.

While we make every effort to ensure orders are delivered by the date required, we cannot guarantee availability from the manufacturer or the manufacturer's delivery schedules.

Any variation to web delivery date given will be advised to you by email or telephone. If we are unable to make delivery because access is not possible, we reserve the right to make a failed delivery charge.

Create a wishlist

"good prompt delivery,,,,,no fuss"

Mark Lowe

Description

The Silt Guard Range from Turtle Enviro has been designed for the catchment and removal of silt and debris from the run off from impermeable and hard standing surface areas, such as: roofs, path and driveways, patios, car parks, roads and highways. Installation of a Silt Guard as part of a SuDS design, will provide effective primary treatment for the surface water run-off, improving water quality downstream and in turn, helping prevent flooding.

The Silt Guard 500 Series is designed for installation upstream of medium to large volume, cellular/crate - attenuation systems, ponds, swales and irrigation systems.

Features & Benefits: Silt Guard 500mm Silt Trap for 160mm Pipework with Filter Basket and Access Cover

  • A15 loading class
  • Single unit
  • Lightweight
  • Easy to install
  • Inlet Invert: 740mm
  • Dimensions: 1000mm x 530mm x 1080mm (Length x Width x Height)
  • Pipe Connections: Two 160mm spigots or two 225mm Twinwall rocker pipes
  • Sump Capacity: 48 Litres

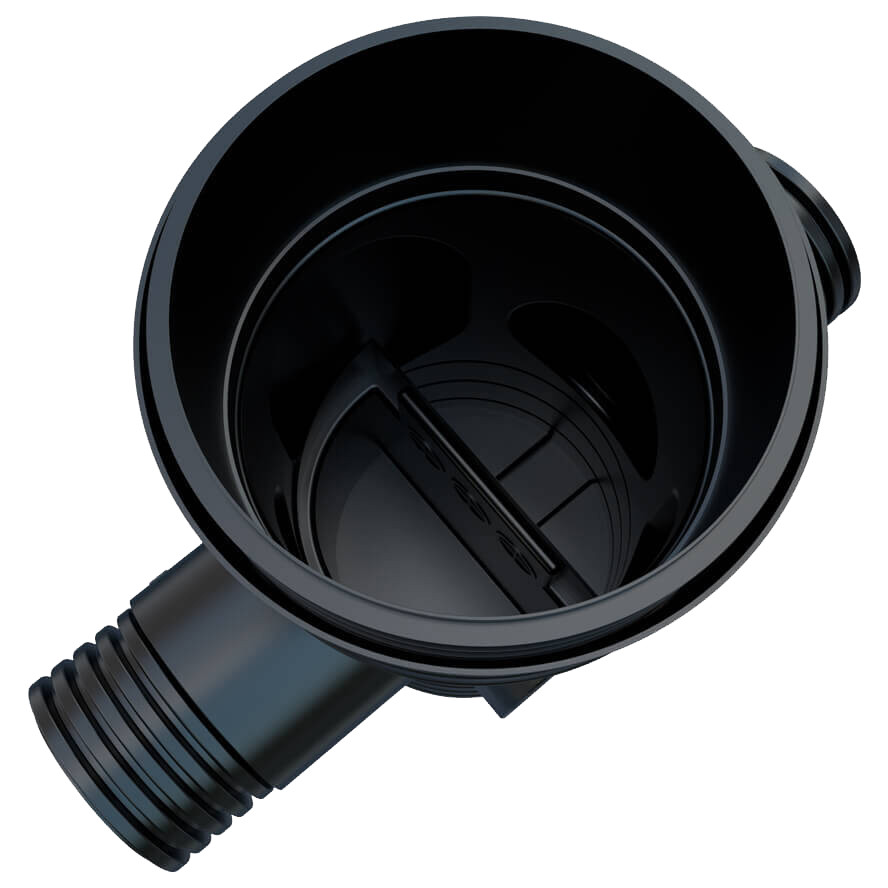

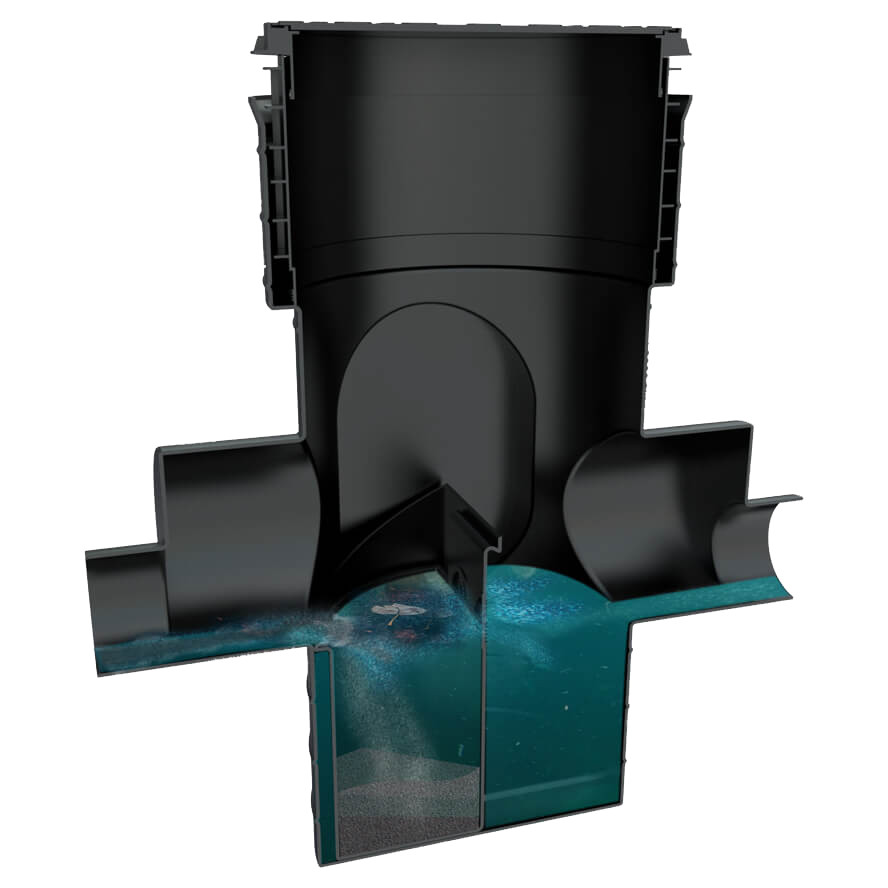

The chamber which is manufactured in the UK and delivered to site as a complete single piece unit is lightweight making it quick and easy to install. It has a robust rota-moulded chamber with two 160mm EN 1401 pipe spigot connections which can be removed to reveal sockets which accept 225mm Twinwall. The invert depth can be increased by adding risers.

Please note:

  • An A15 Circular Access Cover is supplied as standard. A Silt Guard 300 Series is also available which has a smaller chamber and 110mm pipe connections.

Dimensions

Length 1000mm Width 530mm

Details

Colour Black Weight 7.5kg Height 1080mm Load-Bearing Strength 1.5 Tonnes

Questions & Answers

Question:

Silt Sentinel 300 and 500 series. Can you advise the water flow capacity in litres per second

Answer:



In these products the flow capacity is not really relevant, as the product is designed to trap the normal flow from the respective incoming pipework. These units are designed and extensively used as silt traps and the calculation that you are asking for, is more in lending for Oil/Petrol or larger Hydrodynamic Silt Separators.
