Silt Sentinel 300 Series 1000mm Deep Catchpit Vertical Silt Trap with Filter Basket

Code:
SS3010WSB
Free UK Delivery

The silt sentinel 300 series is designed to support SuDS Management and the sewer infrastructure as part of a designed attenuation system, helping prevent flooding by limiting the amount that enters the attenuation system. The silt sentinel is manufactured from a high strengt...Read More

Create a wishlist

"Always a first class and very fast…"

Mr Paul Stalley

Description

The silt sentinel 300 series is designed to support SuDS Management and the sewer infrastructure as part of a designed attenuation system, helping prevent flooding by limiting the amount that enters the attenuation system.

The silt sentinel is manufactured from a high strength polyethylene twinwall, which makes it very strong and robust and able to be installed in granular surround or in some areas ‘as dug’ material. The chambers although very robust and relatively lightweight and as they are one piece units, they save significant amounts of onsite costs as they need no construction or wet trades.

Features

  • 1000mm deep catchpit

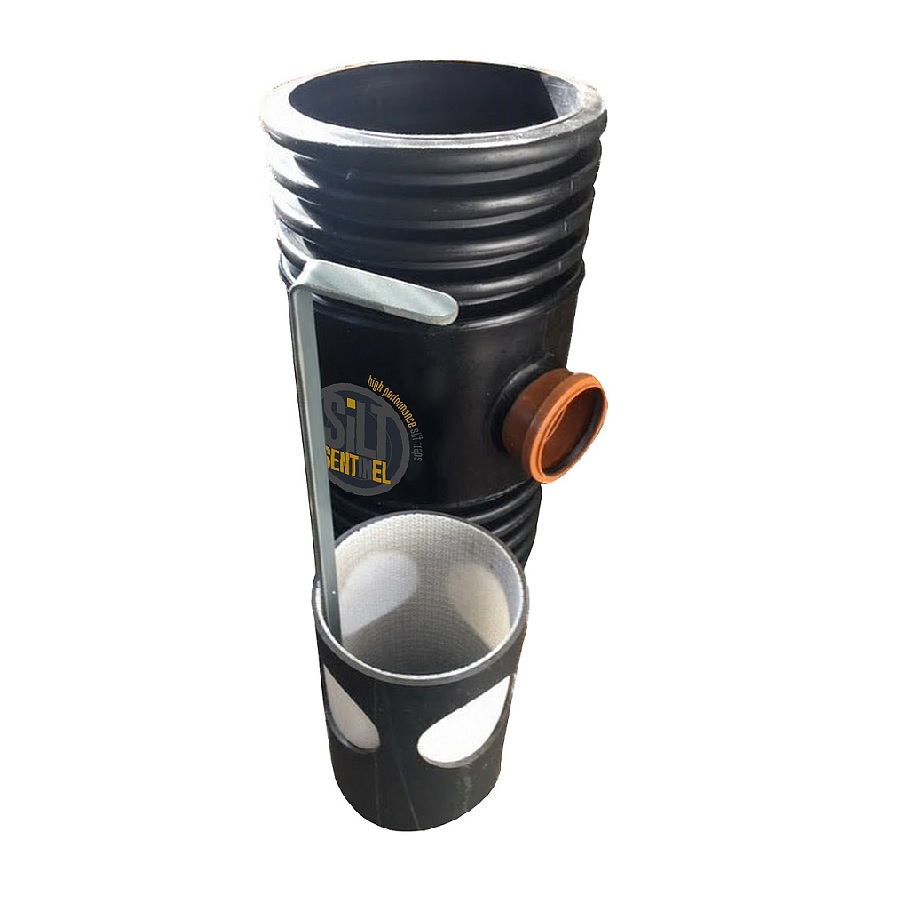

  • Comes with removable filter basket fitted with micron mesh for maximum silt retention

How it works

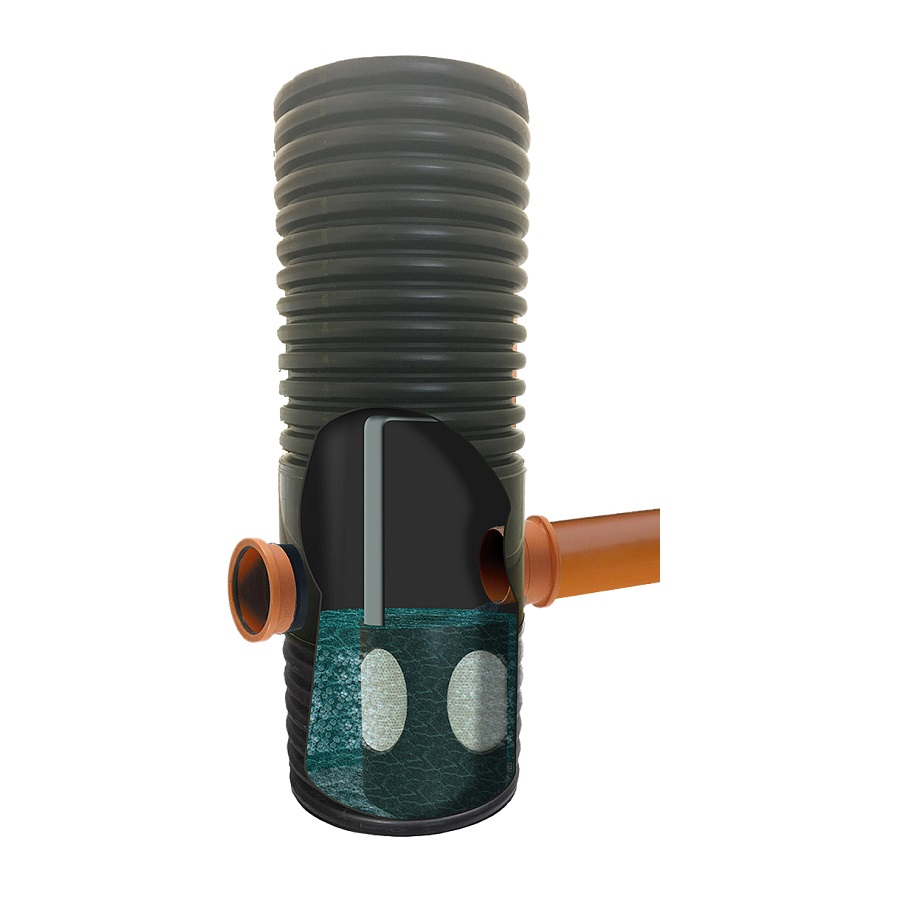

Designed specifically for siting upstream of smaller modular/crate type attenuation systems the silt sentinel 300 series has a removable integral debris bucket which sits just below the inlet pipe. Rainwater enters the unit and any silt and solids in the flow will drop into the bucket and initially settle within and once full the excess rainwater will overflow into the main chamber and any lighter silt and sand will settle at the base and then cleaner separated water discharges from the outlet pipe into the attenuation system, supporting a more sustainable installation.

When fitted the filter basket can be simply removed for cleaning.

There are no product specifications to show.

Questions & Answers

Question:

Is this available with a 160mm inlet and outlet?

Answer:

This would need to be upgraded to product codeSS500160
