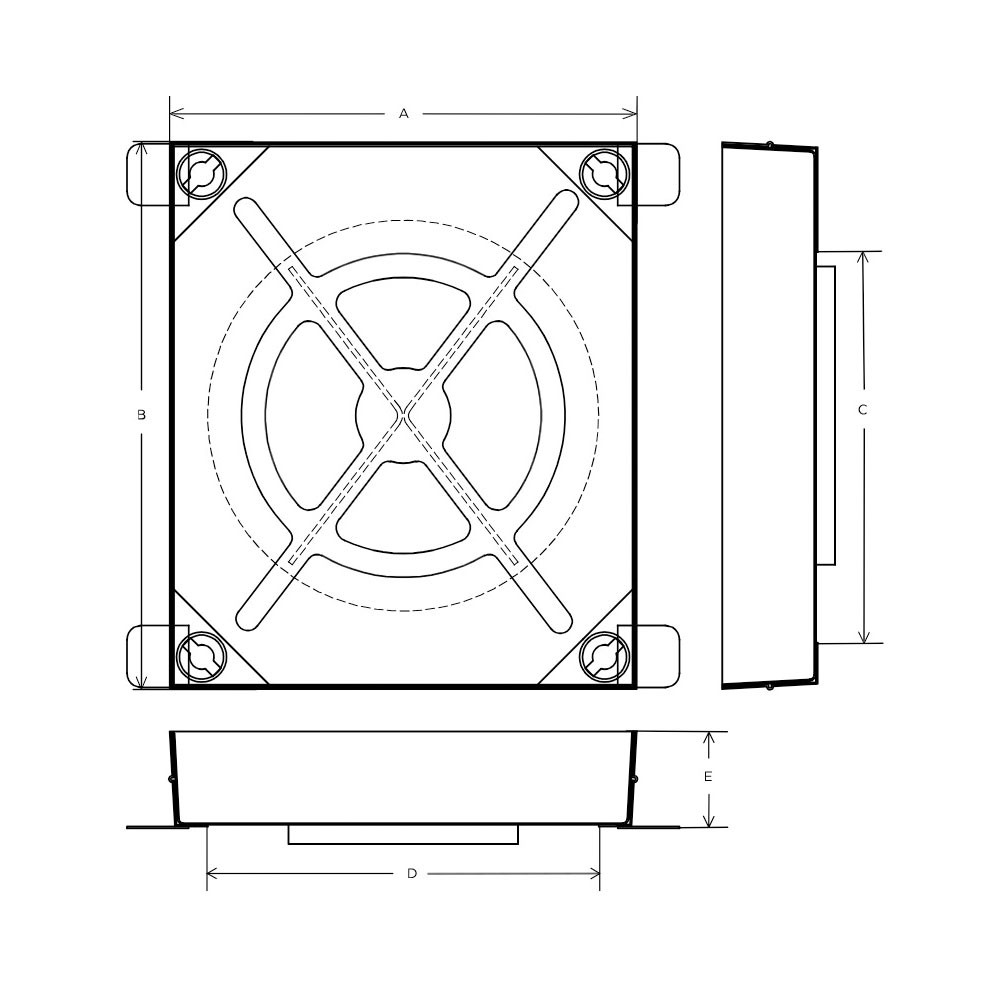

Wrekin’s recessed square-to-round manhole cover for block paving is 300mm in diameter and capable of withstanding a gross laden vehicle weight of up to 2.5 tonnes. The unobtrusive square-to-round recessed manhole cover eliminates the need to cut paving slabs around the circular opening.

Both the cover and the frame are manufactured from galvanised mild steel to BS EN ISO 1461 and feature a neoprene rubber seal and four screw locking. Used in light to medium duty applications, this recessed manhole cover is FACTA AAA and able to take pneumatic SMWL loads of 2.5 tonnes.

The recess of the tray has a 80mm nominal depth and the weight loading capabilities given are given under the assumption that the recess will be correctly filled with screed or concrete to the right level.

Wrekin Recessed Square-to-Round Manhole Cover for Block Paving Specifications

Material: Galvanised mild steel
Dimensions: 300mm diameter
GLVW: 2.5 tonnes
