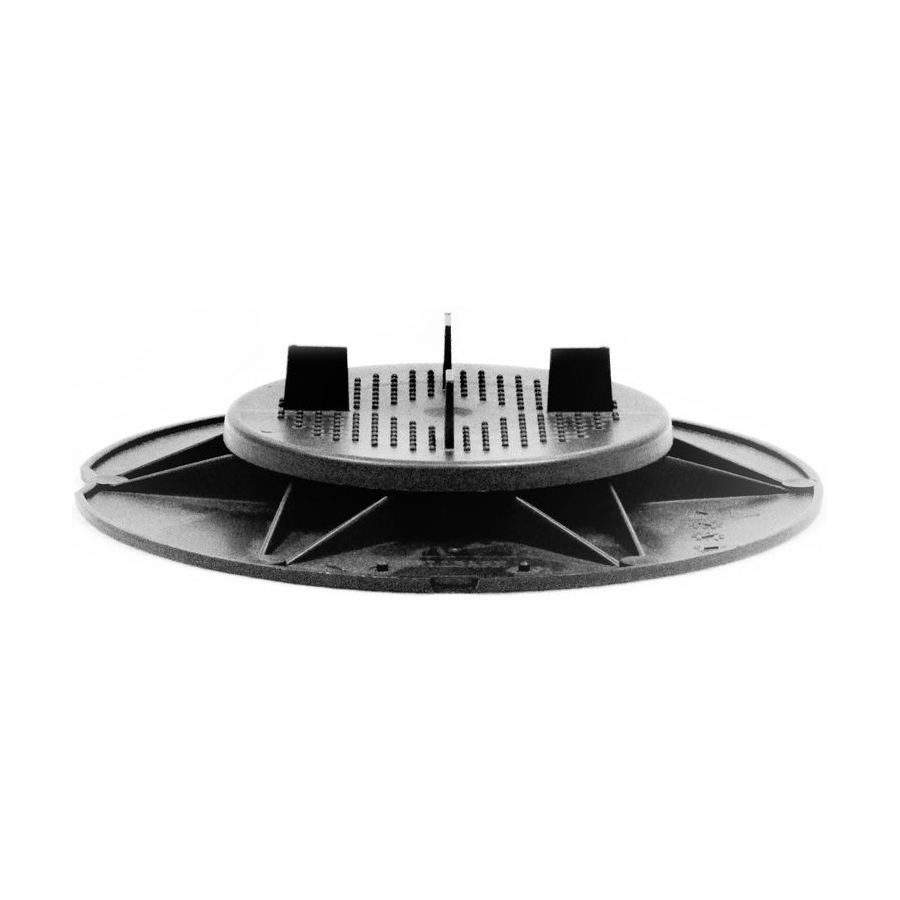

Create the most subtle falls the easy way with Wallbarn ASP adjustable paving pedestals. These innovative pedestals are intended to support paving slabs and promenade tiles on balconies, podium decks and terraces.
In order to guarantee sufficient drainage, even the flattest roofs require a minimal fall. These ASP pedestals have been designed with a telescopic stem which can be wound up or down to create the most precise millimetre changes in height, while achieving a flat upper surface. Complete with positioning lugs for a uniform line and drainage spacing, this practical product helps you ensure no standing water is left on a flat surface, while also creating a handy cavity underneath the paving slabs allowing for ventilation and pipe/cable work. What's more, adjustments can be made once the slab is in place for ease and efficiency, cutting down on project time and labour costs.
Manufactured in tough polypropylene to stand strong against low temperatures, each unit is built to withstand up to one tonne in weight and has been tested with the CATAS procedure for Compressive Strength at +20°C and - 40°C. Wallbarn's ASP adjustable paving pedestals are manufactured with a host of accessories, levelling shims, lug sizes and slope correctors so that you can create the optimum finish for your project.
Material: Virgin fibre injection moulded polypropylene
Weight Tolerance: Maximum Load 11,493N = 1,171 kg
End of Linear Behaviour at: 6,700N = 683kg
Max Temperature: Plus 75° C
Min Temperature: Minus 40°C
Base Plate Diameter: 200mm or 150mm
Headpiece Diameter: 120mm
Lug Dimensions: 2.2 x 18mm, 4 x 18mm, 6 x 18mm, 10 x 18mm, 2.2 x 10mm
