Oriflo Orifice 500mm Flow Control Chamber Protected Plate

Name: Oriflo Orifice 500mm Flow Control Chamber Protected Plate
Brand: Turtle
SKU: PARENT-OFCC500

Code:

PARENT-OFCC500

Brand:

Turtle

View full product details

Ask a question about this product

Depth

from

£875.00 Incl. VAT

Earn points

Delivery from: 3-5 Working Days

Shipping costs displayed in basket.

View Transport Policy

View full product details

Ask a question about this product

Create a wishlist

Mr Stephen Gilbert

Description

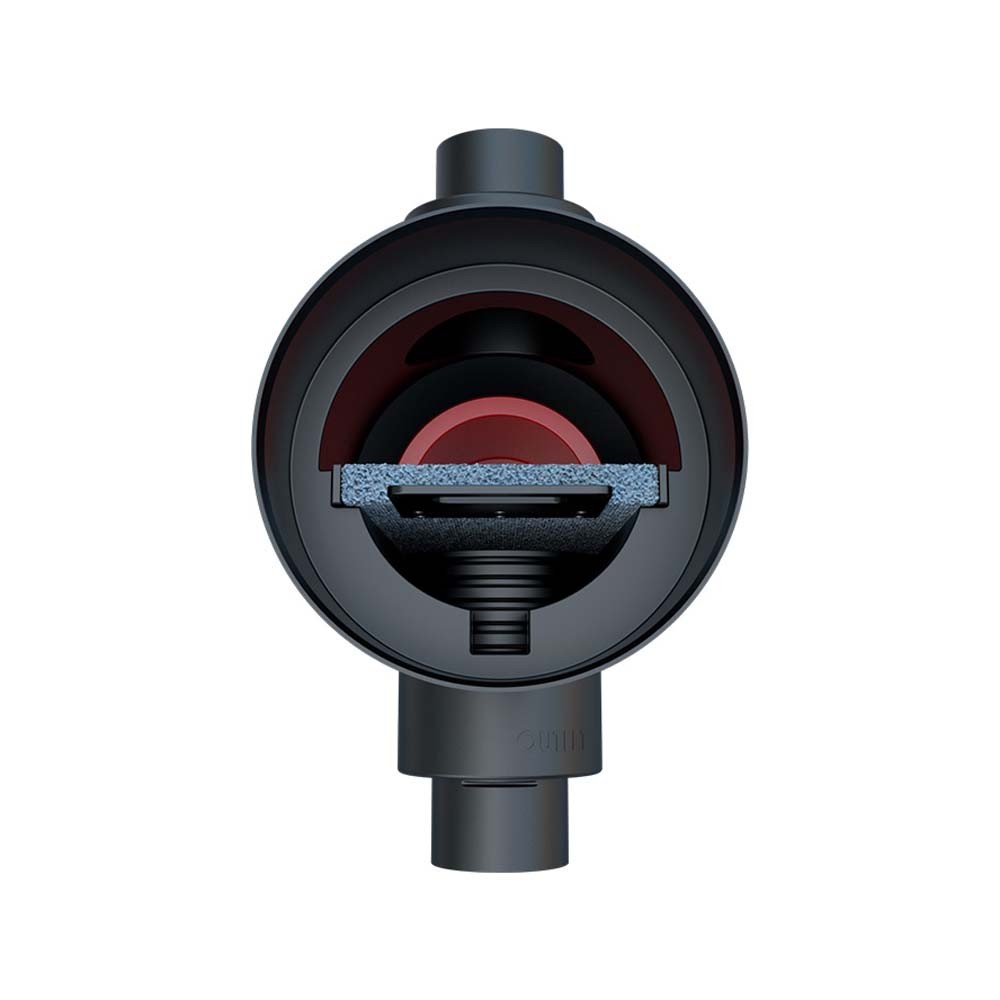

The Oriflo Orifice 500mm Flow Control Chamber Protected Plate is an advanced solution for managing water flow while filtering out suspended solids, ensuring improved drainage performance. As part of the Oriflo range, this pre-assembled 500mm diameter chamber features a 100% recycled thermoplastic blok, which forces all water flow through it before reaching the outlet. This innovative design effectively filters out Total Suspended Solids (TSS) as small as 30micrometres (0.03mm), reducing the risk of blockages and maintaining system efficiency. With a capacity to handle flow rates up to 70 L/sec, this chamber offers increased performance when integrated into systems with larger depth head drops.

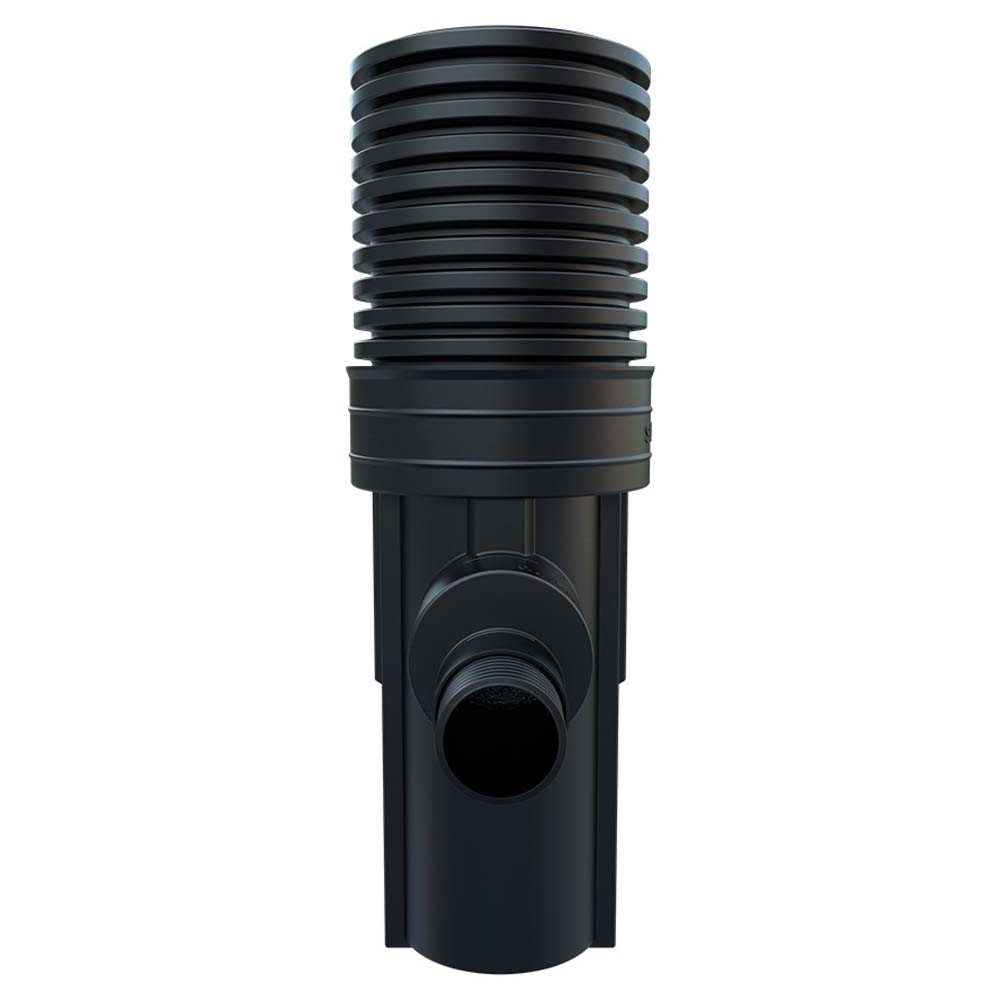

Designed for high-demand applications, this model features a rotational moulded chamber base with 150mm or 225mm Twinwall main channel socket connections for seamless integration into existing drainage networks. The attached basket has a capacity of 17.5kg, making it ideal for developments with surface water runoff of up to 1200m². To maintain peak performance, this unit requires a recommended inspection, emptying, and cleaning schedule based on site conditions. The Oriflo 500mm Flow Control Chamber is a durable and efficient choice for projects requiring reliable water regulation and sediment filtration.

Features & Benefits: Oriflo Orifice 500mm Flow Control Chamber Protected Plate

Integrated thermoplastic blok filters out silt and suspended solids up to 30micrometres
Handles up to 70 L/sec, with increased capacity in deeper systems
17.5kg sediment basket supports surface water runoff up to 1200m²
