Oriflo Orifice 450mm Flow Control Chamber Unprotected Plate

Code:
PARENT-OFCP450
Brand:
Turtle

The Oriflo Orifice 450mm Flow Control Chamber Unprotected Plate is a high-performance solution for managing controlled water flow in drainage systems. As part of the Oriflo range, this pre-assembled 450mm diameter chamber is designed for quick installation and efficient operat... Read More

View full product details
Ask a question about this product
from
£503.00 Incl. VAT
Earn points

SUPER Rewards Earn points and build more across our SUPERSTORES!

Find out more
Oops! Please select from the options
Configure & Buy
Delivery from: 3-5 Working Days
Shipping costs displayed in basket.
We can let you know when this product is back in stock.

This product is proving to be very popular and has unfortunately sold out.

Enter your email below and we'll notify you as soon as this product is back in stock:

For delivery Monday, Feb 16th - order in:
days hrs mins secs
View Transport Policy

Next day delivery is subject to stock availability. If products on a 24 hours service are ordered alongside products NOT on a 24 hours service, this may delay your whole order.

All delivery charges are included in the final shopping basket and are dependent on the products Scottish Highlands & the Islands where additional shipping charges will apply.

Please note that not all products will incur an additional delivery charge to the Scottish Highlands & the Islands – this is based on the costs from the manufacturer, distributor or courier providing shipping on our behalf. If your delivery address is in the Scottish Highlands and Islands, a member of our helpline team will contact you prior to processing your order should an additional delivery charge apply.

While we make every effort to ensure orders are delivered by the date required, we cannot guarantee availability from the manufacturer or the manufacturer's delivery schedules.

Any variation to web delivery date given will be advised to you by email or telephone. If we are unable to make delivery because access is not possible, we reserve the right to make a failed delivery charge.

View full product details
Ask a question about this product
Create a wishlist

"Very easy website to use"

Kevin Williams
Description Specification Downloads Q&A Product options

Description

The Oriflo Orifice 450mm Flow Control Chamber Unprotected Plate is a high-performance solution for managing controlled water flow in drainage systems. As part of the Oriflo range, this pre-assembled 450mm diameter chamber is designed for quick installation and efficient operation. Capable of handling flow rates up to 30 L/sec, this model offers increased capacity when integrated into systems with larger depth head drops, making it an ideal choice for a range of water management applications.

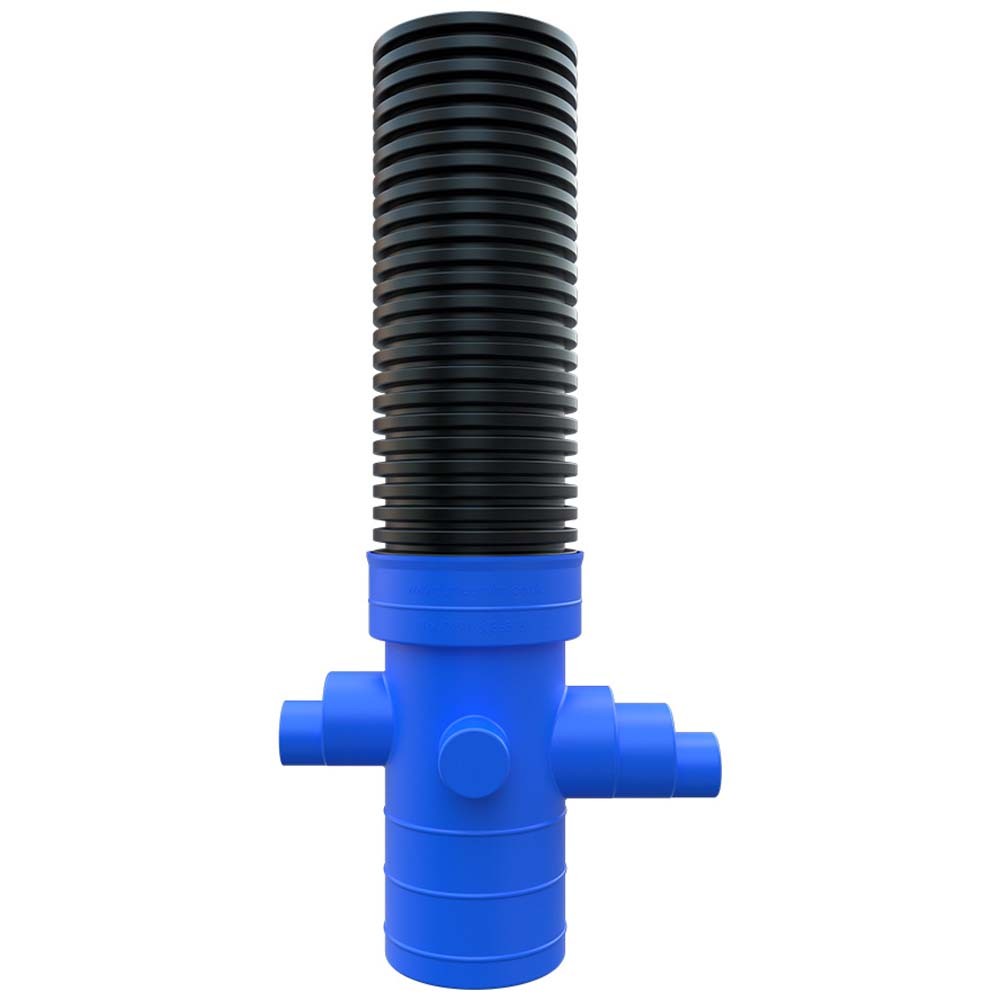

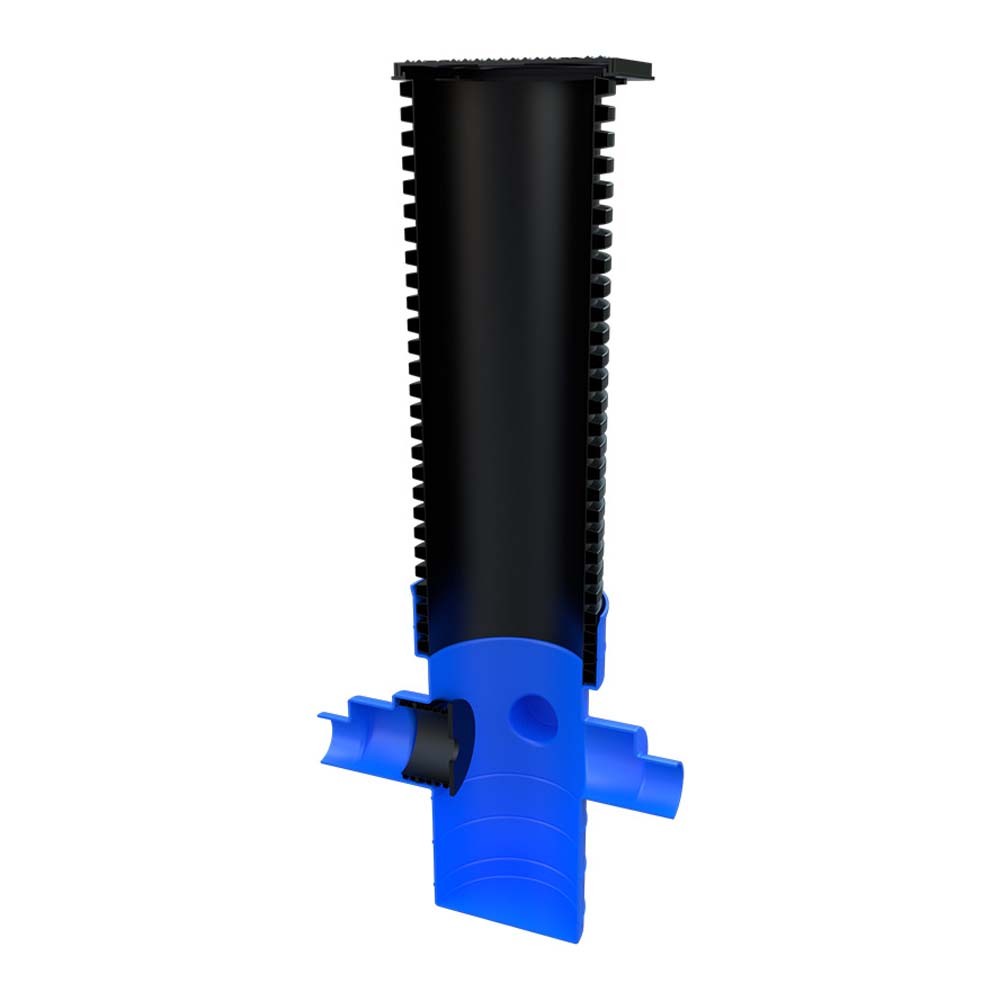

Built for durability and adaptability, the chamber features a rotational moulded base with 110mm or 160mm main channel socket connections, along with two additional 110mm or 160mm side inlets at 90° and 270° from the outlet at 0°. These side inlets are supplied as blanked ends, allowing for flexible system configurations as needed. Whether used in new developments or existing drainage upgrades, the Oriflo 450mm Flow Control Chamber is a robust and efficient solution for effective water flow regulation.

Features & Benefits: Oriflo Orifice 450mm Flow Control Chamber Unprotected Plate

  • Pre-assembled chamber for fast and hassle-free installation
  • Handles up to 30 L/sec with potential for increased flow rates
  • Flexible inlet/outlet options for easy system integration

Pipework

  • Main Channel Pipework: 110mm or 160mm Single Wall EN 1401 - Outlet at 0° and Inlet at 180°
  • Optional Side Inlets: 110mm Single Wall EN 1401 - Inlets at 90° and 270°

Please note:

  • Please see technical drawing download for precise dimensions.

Dimensions

Length
1950mm
1015mm
1495mm
2410mm
3025mm
Depth
1015mm
1495mm
1950mm
2410mm
3025mm

Details

Diameter
450mm
Type
Control Chamber
Range
Oriflo

Questions & Answers

Question:

What flow rate does it reduce to?

Answer:

The Oriflo 450mm Unprotected Plate Flow Control Chamber is designed to manage flows from 0.5 to 30 litres per second (L/s), depending on the specific head (water depth) and site conditions, with its orifice size tailored for specific flow requirements, often integrated with attenuation systems to meet permitted discharge rates.
