Locking A15 Channel Drainage Garage Pack 3m - Wallbarn Protecto Drain

Product Code:
Est. Delivery: 1-2 Working Days
Shipping costs displayed in basket.
We can let you know when this product is back in stock.

This product is proving to be very popular and has unfortunately sold out.

Enter your email below and we'll notify you as soon as this product is back in stock:

Subject to stock availability, if products on a 24 hours service are ordered alongside products NOT on a 24 hours service, this may delay your whole order.

View Transport Policy

All delivery charges are included in the final shopping basket and are dependent on the products Scottish Highlands & the Islands where additional shipping charges will apply.

Please note that not all products will incur an additional delivery charge to the Scottish Highlands & the Islands – this is based on the costs from the manufacturer, distributor or courier providing shipping on our behalf. If your delivery address is in the Scottish Highlands and Islands, a member of our helpline team will contact you prior to processing your order should an additional delivery charge apply.

While we make every effort to ensure orders are delivered by the date required, we cannot guarantee availability from the manufacturer or the manufacturer's delivery schedules.

Any variation to web delivery date given will be advised to you by email or telephone. If we are unable to make delivery because access is not possible, we reserve the right to make a failed delivery charge.

£42.95 Incl. VAT
Oops! Please select from the options

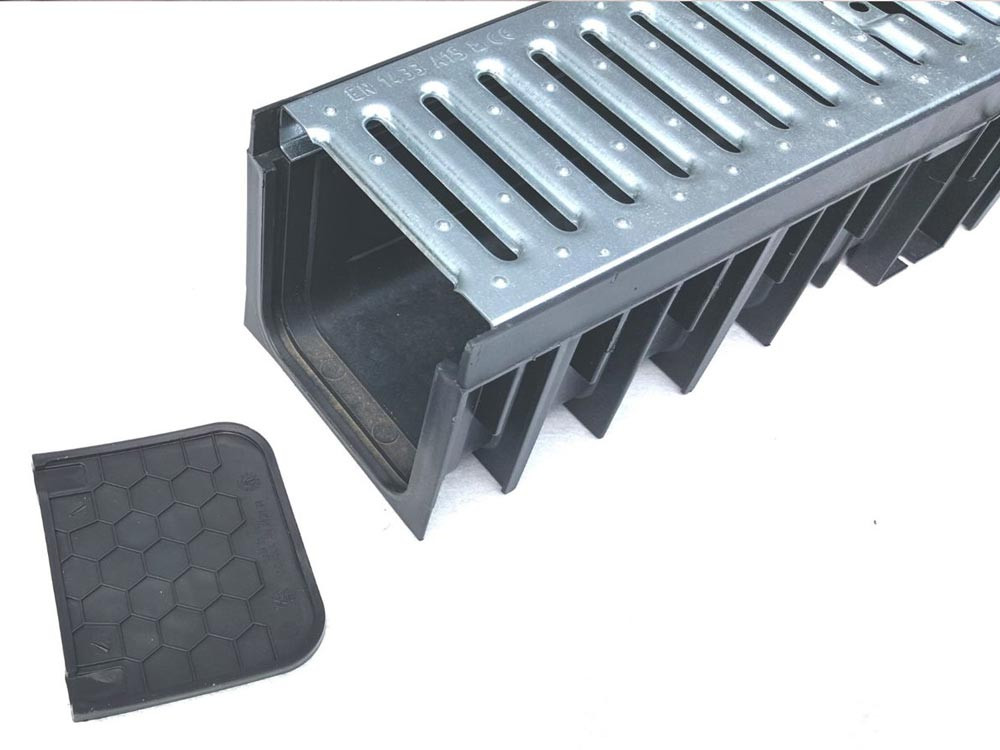

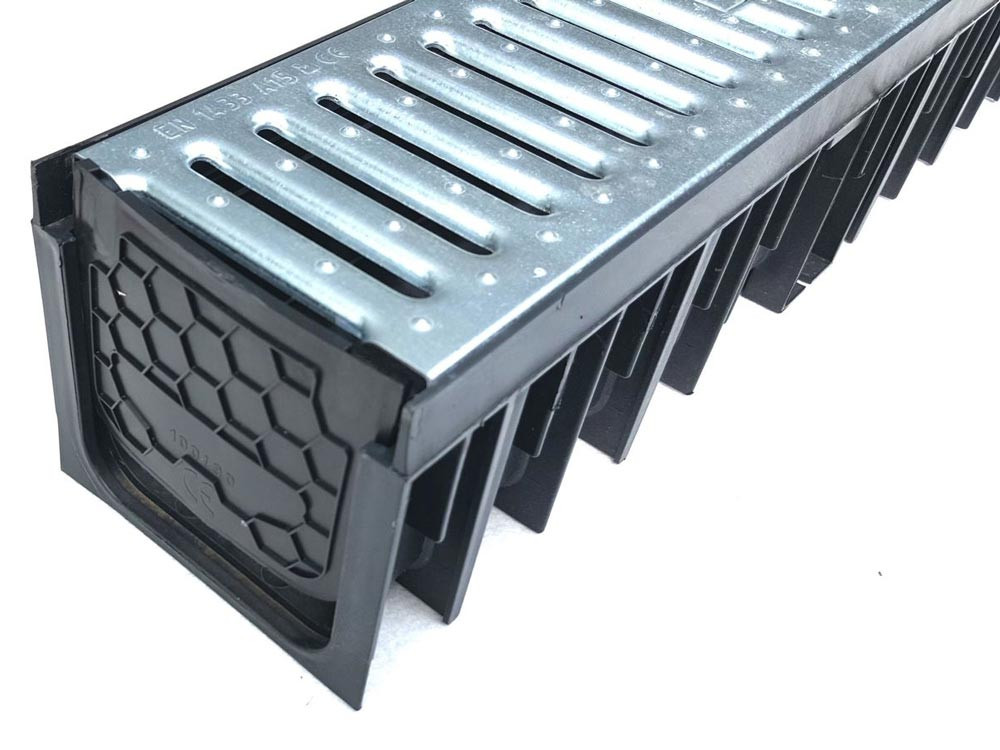

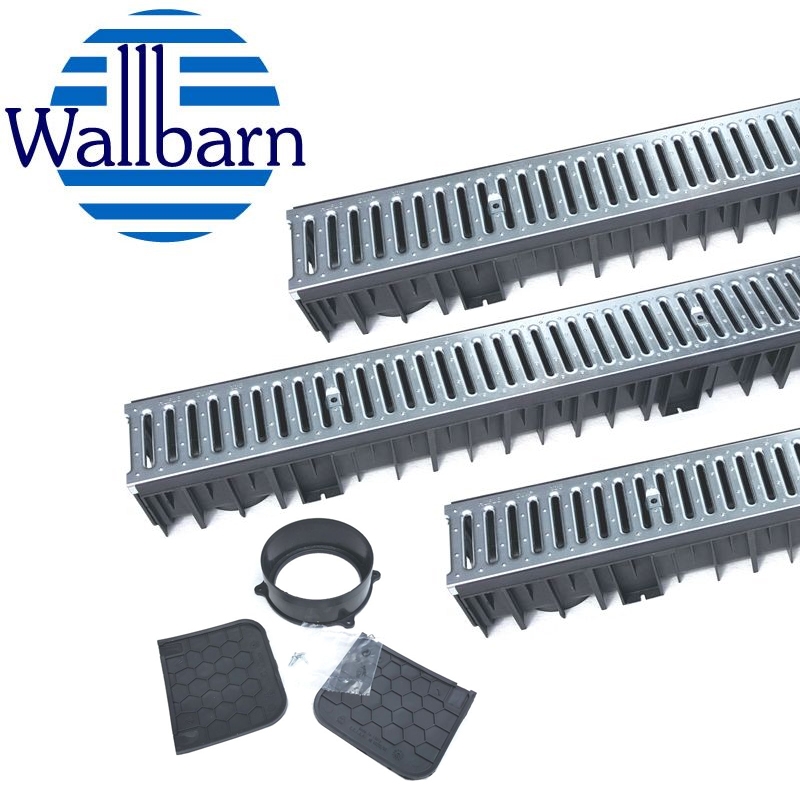

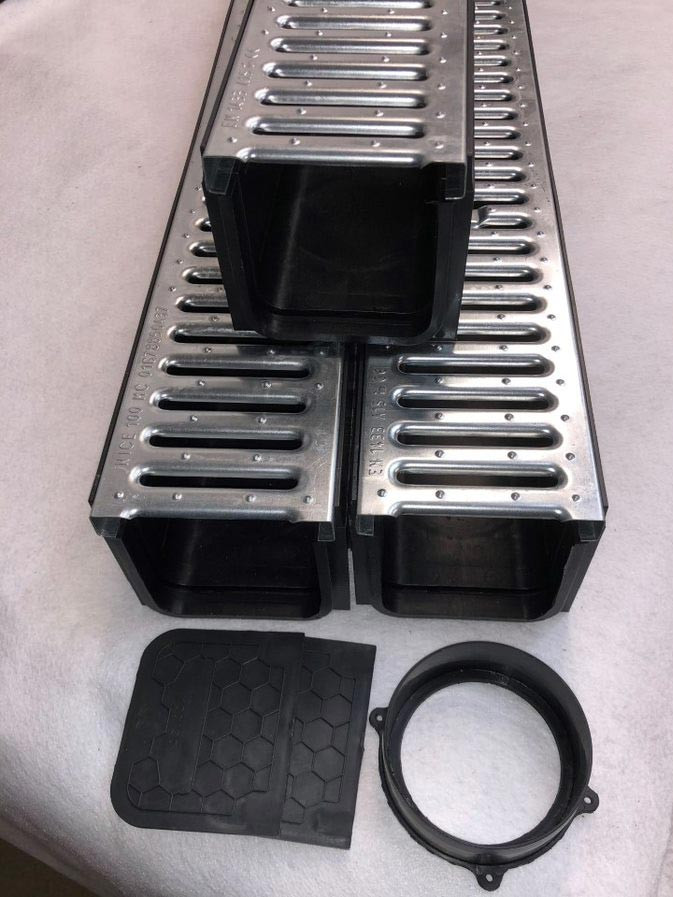

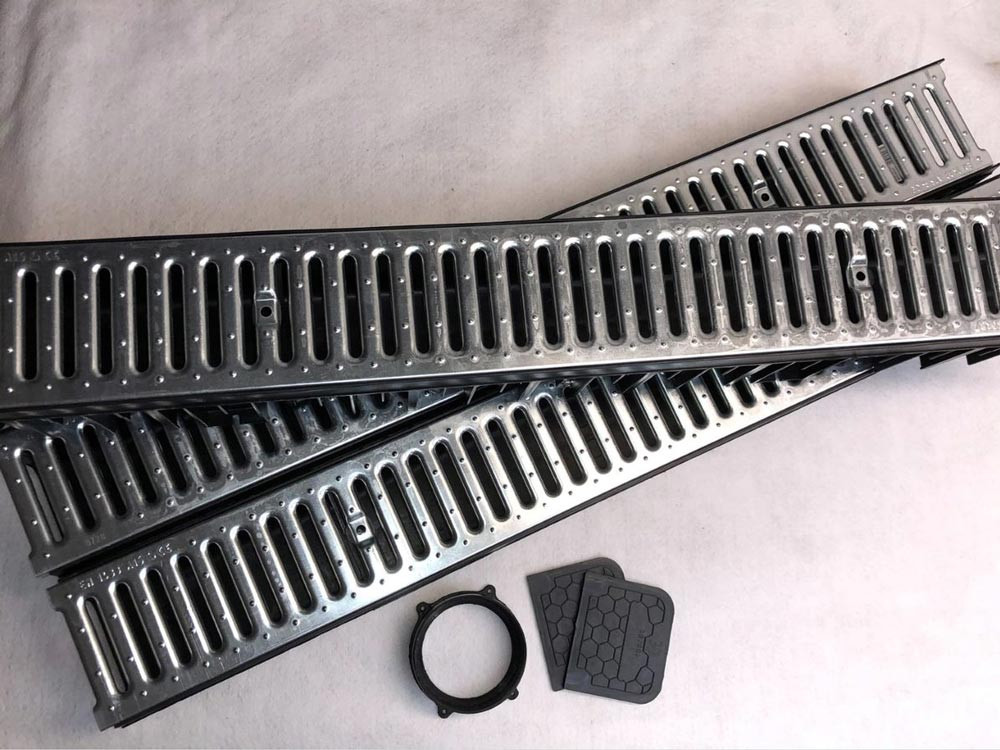

The Protecto-Drain by Wallbarn is 100% recyclable and designed to enable a quick and easy installation. This pack contains 3m of Locking Channel Drainage (1m length per channel) and an accessories pack. Channel drains work by collecting surface water from paved or asphalted areas and moving the water away towards an escape route or underground drain pipe. The A15 anti-slip, hardwearing galvanised steel grate maintains structural integrity across the area, so foot traffic and very light vehicles can pass over the drain without issue.

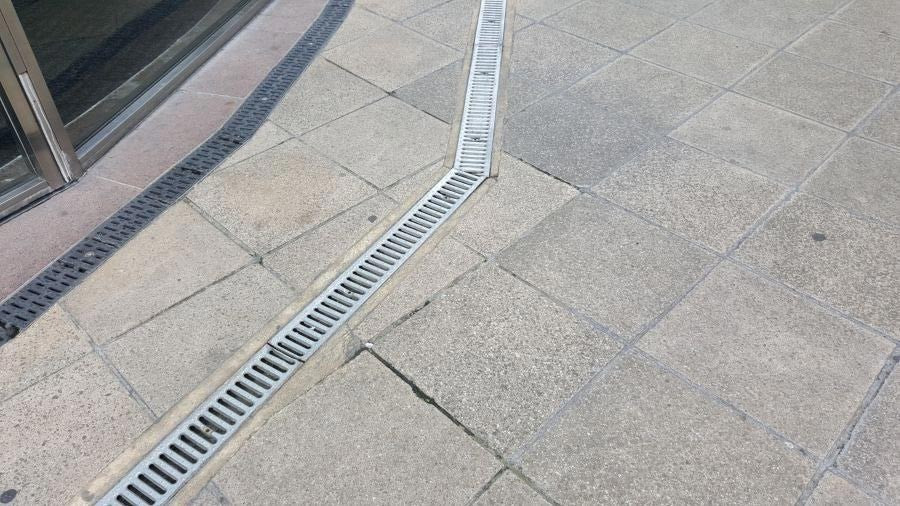

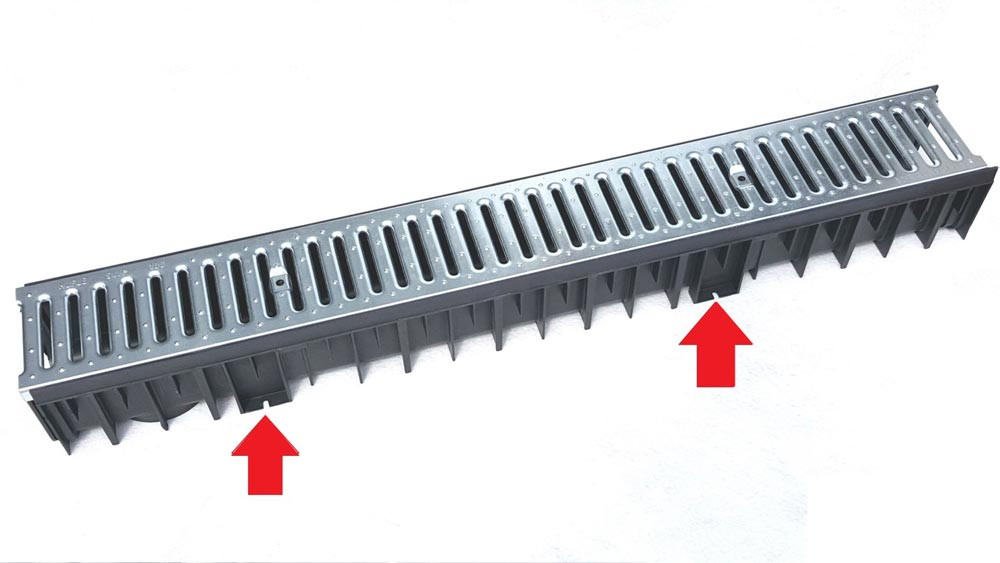

The Protecto-Drain slots in front of your building's entrance or within a paved/asphalted area and provides an unobstructed channel cross-section. Each channel clips together for fast and simple on-site fabrication, and they are easy to cut for areas where a part-metre length is required. All slots and measurement grooves run the whole way through the channel, so you can successfully install sidebars into cut channels.

Features & Benefits: Locking A15 Channel Drainage Garage Pack 3m - Wallbarn Protecto Drain

  • 100% recyclable
  • Designed to be installed quickly and easily
  • Collects surface water from paved or asphalted areas
  • A15 anti-slip, hardwearing galvanised steel grate
  • Foot traffic and very light vehicles can pass over the drain without issue
  • CE marked
  • Very easy to cut on areas where a part-metre length is required

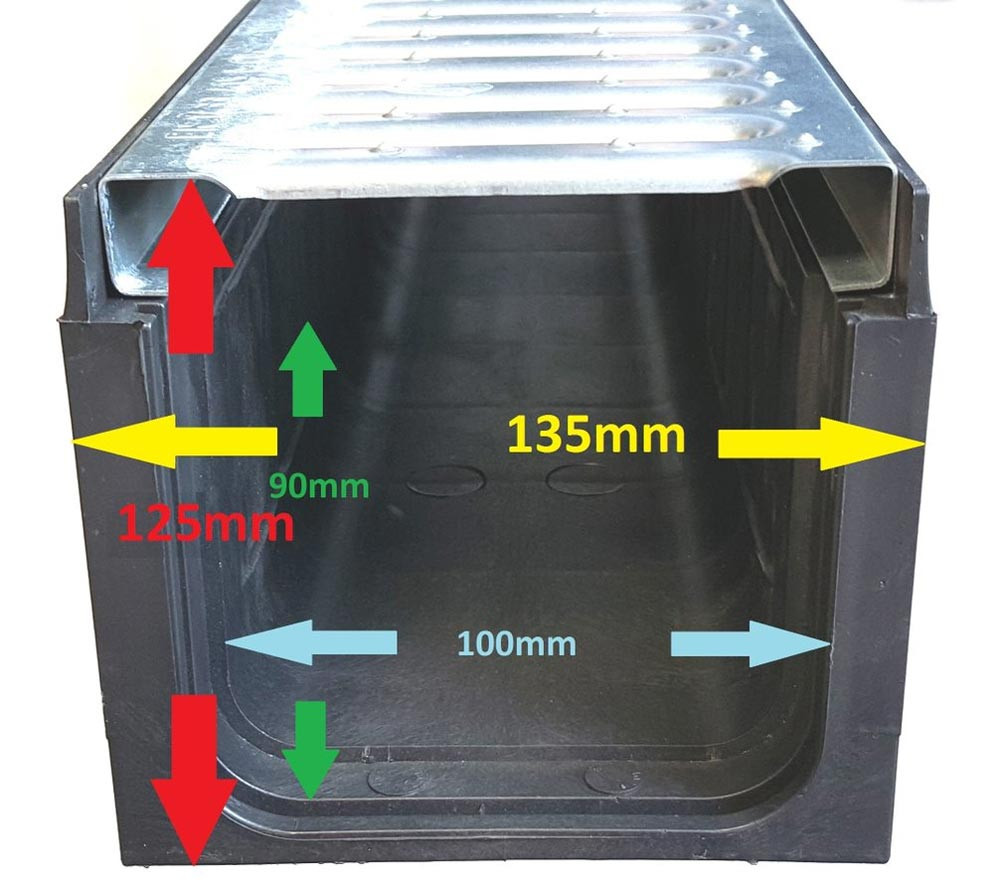

  • Invert depth: 90mm
  • Invert Width: 100mm

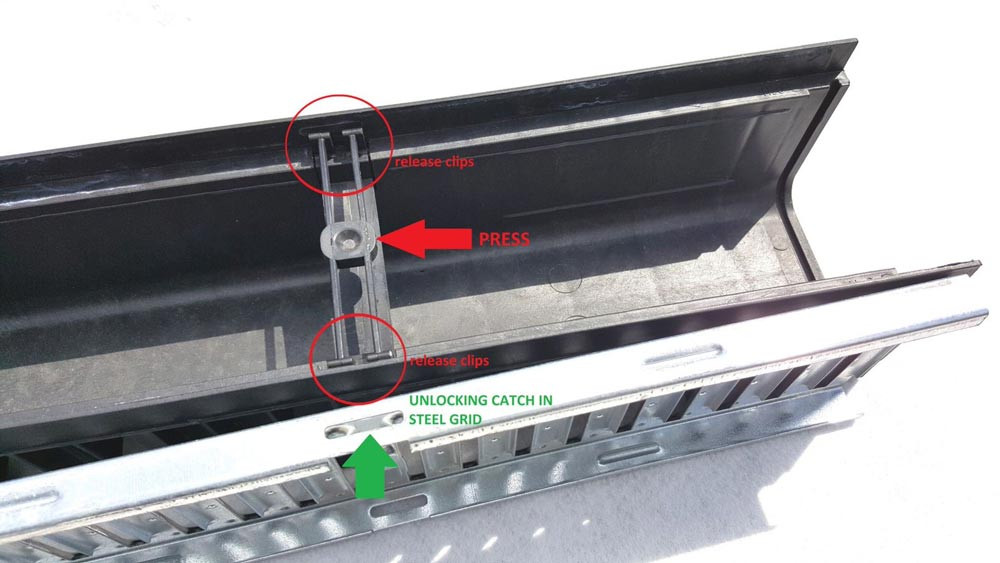

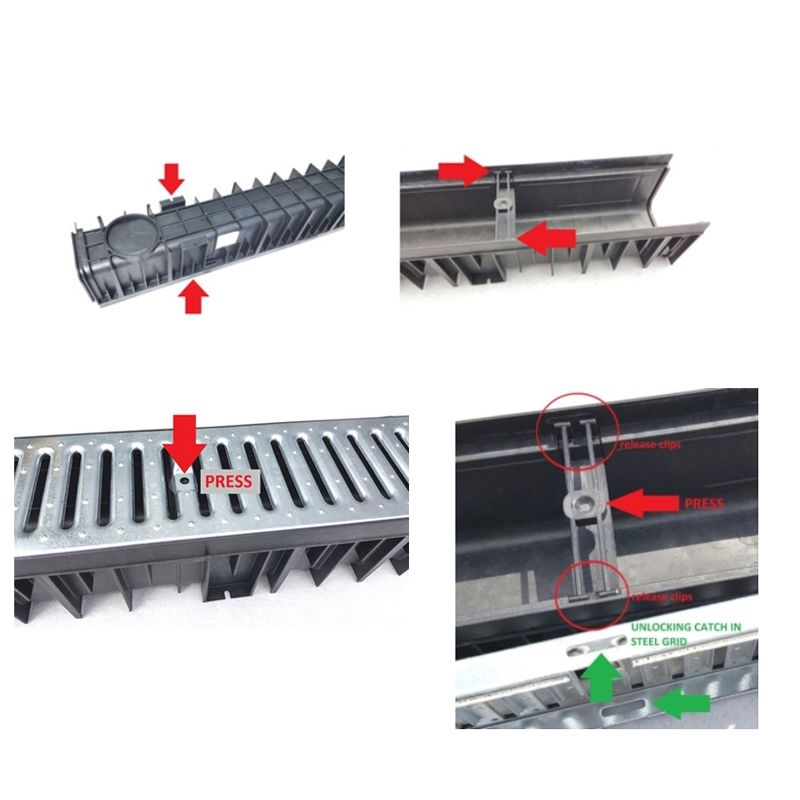

This fully assembled channel drain has an integrated steel grid and an ingenious locking clip system, meaning you can easily open them for inspection or cleaning.


  • Driveways
  • Gardens & patios
  • Pedestrian walkways
  • Door thresholds
  • Recreational areas
  • Schools, parks and playing fields

Please note:

  • Wallbarn drainage channel is CE marked and fully certified to Load Class A15 BS EN 1433.


Length 3000mm Width 135mm


Material Plastic Depth 120mm Weight Class A15


There are no product downloads to show.

Questions & Answers


Can you add a 22.5/45 degree curve to this product?


There aren't any corners at that angle available with this product. You could, however, cut the channels to achieve this angle and use silicone sealant to join them back together.


Hi there, just looking at the wallbarn locking a15 drainage set, is the outlet to the drain only from underneath? I dont have much gradient to play with so was seeing if you can have an end outlet instead? Or an adaptor to change it?


This only has the option to drain from the bottom, the ACO range has a horizontal outlet option.

Have a question about this product?


5 / 5 4 reviews
Andrea Romanini
28th February
Happy with the product.
27th May 2020
All good with item
21st May 2020
Good quality , quick delivery
19th October 2019
Good product dispatched in a decent time
