Hauraton Recyfix Pro 100 Channel & Ductile Iron Metropolis Grating - D400

Code:
47002
Brand:

This item is out of stock and not available to purchase.

With integrated angle housing and vertical connection possibility of DN/OD 110, this Hauraton Recyfix Pro 100 Channel consists of a modified polypropylene structure. Both durable and sturdy, the channel is complemented by a ductile iron Metropolis grating with horizontal thrus... Read More

Create a wishlist

"excellent service will buy again"

Gordon

Description

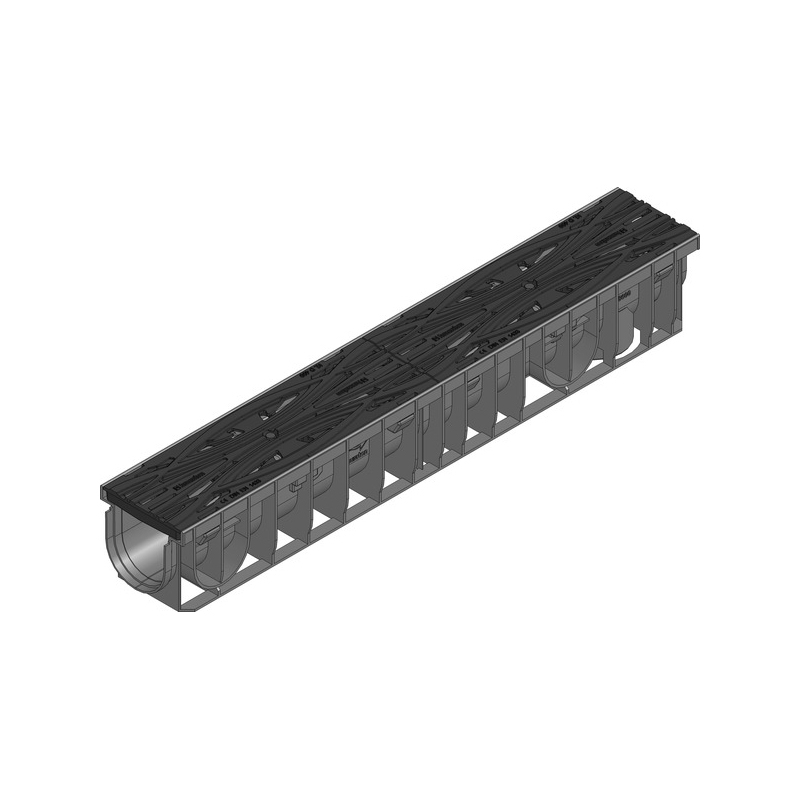

With integrated angle housing and vertical connection possibility of DN/OD 110, this Hauraton Recyfix Pro 100 Channel consists of a modified polypropylene structure. Both durable and sturdy, the channel is complemented by a ductile iron Metropolis grating with horizontal thrust resistance and a locking device for extra security.

This channel and grating have a D400 loading capacity according to EN 1433, suitable for various applications, such as gardening and landscaping, pedestrian zones, public areas and squares, and cityscapes with architectural value. It can also be installed in multi-storey and underground car parks, railway platforms, facade drainage, flat roofs, terraces and balconies, as well as markets and market squares, cycle paths and footpaths, school yards and private access drives.

Features & Benefits: Hauraton Recyfix Pro 100 Channel & Ductile Iron Metropolis Grating - D400

  • Channel body made from modified polypropylene
  • Includes integrated angle housing and vertical connection possibility DN/OD 110
  • Ductile iron Metropolis grating
  • D400 loading capacity
  • Suitable for various applications
  • 1000mm length x 160mm width x 150mm height

Please note:

  • This product is not for use across the carriageway of highways or motorways in moving traffic.

Dimensions

Length 1m Depth 150mm Width 160mm

Details

Material Plastic Product Type Channel Base and Grate Range Recyfix Load Rating D400
