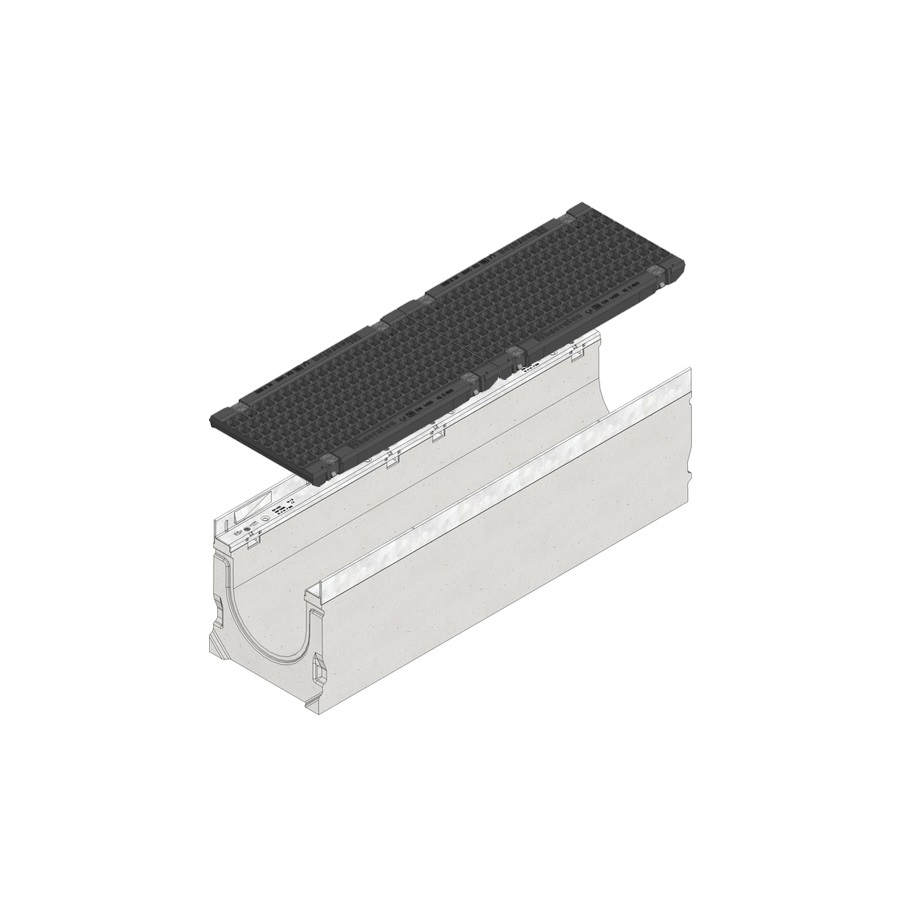

Hauraton Faserfix SUPER 200 Channel & E600 Bolted Ductile Iron Gugi Mesh Grating - 1000mm

Code:
3000.3068
Brand:

This item is out of stock and not available to purchase.

From Hauraton comes this FASERFIX SUPER 200 fibre-reinforced concrete base. With an E600 ductile iron Gugi mesh grating to withstand 60 tonnes, this section offers a strong and stable part of your channel drainage system for years to come. The FASERFIX SUPER 200 channel drain o... Read More

Create a wishlist

"Very happy"

ED

Description

From Hauraton comes this FASERFIX SUPER 200 fibre-reinforced concrete base. With an E600 ductile iron Gugi mesh grating to withstand 60 tonnes, this section offers a strong and stable part of your channel drainage system for years to come.

The FASERFIX SUPER 200 channel drain offers maximum lateral stability suited to docks, airports and large industrial facilities. With thick channel base walls, you can expect high-quality structural support for extreme loads and dynamic forces. It also comes with SIDE-LOCK technology to simplify the installation of grates - all you need is a screwdriver, providing additional protection against horizontal movement.

Features & Benefits: Hauraton Faserfix SUPER 200 Channel & E600 Bolted Ductile Iron Gugi Mesh Grating - 1000mm

  • Fibre-reinforced concrete base and ductile iron grate ensure durability
  • Suitable for docks, airports and large industrial facilities
  • Thick channel base walls
  • Includes 40mm high angle housing and inlay grating
  • SIDE-LOCK simplifies installation process
  • E600 Class load rating for 60 tonnes
  • A1 fire resistance rating (non-flammable)

An A1 fire resistance rating that designates the product as non-flammable, 40mm high angle housing and inlay grating all contribute to the quality of the channel. As a result, the SUPER 200 is perfect for highly industrial and high-risk areas.

Dimensions

Length 1m Depth 305mm Width 290mm

Details

Material Concrete
Ductile Iron
Product Type Channel Base and Grate Range Faserfix Load Rating F900
