Harmer SML Cast Iron Underground Drain Pipe

Code:
HARMER-SML-PIPE
Brand:

This Harmer SML Cast Iron Underground Drain Pipe is part of a sturdy and flexible dry-jointed pipework system that is easy to install and suited to various applications. It is lightweight yet durable, making it resistant to accidental external damage and vandalism, and eco-fri... Read More

from
£140.00 Incl. VAT
Earn points

SUPER Rewards Earn points and build more across our SUPERSTORES!

Find out more
Oops! Please select from the options
Delivery from: 3-5 Working Days
Shipping costs displayed in basket.
We can let you know when this product is back in stock.

This product is proving to be very popular and has unfortunately sold out.

Enter your email below and we'll notify you as soon as this product is back in stock:

For delivery Tuesday, Oct 8th - order in:
days hrs mins secs
Subject to stock availability, if products on a 24 hours service are ordered alongside products NOT on a 24 hours service, this may delay your whole order.
View Transport Policy

All delivery charges are included in the final shopping basket and are dependent on the products Scottish Highlands & the Islands where additional shipping charges will apply.

Please note that not all products will incur an additional delivery charge to the Scottish Highlands & the Islands – this is based on the costs from the manufacturer, distributor or courier providing shipping on our behalf. If your delivery address is in the Scottish Highlands and Islands, a member of our helpline team will contact you prior to processing your order should an additional delivery charge apply.

While we make every effort to ensure orders are delivered by the date required, we cannot guarantee availability from the manufacturer or the manufacturer's delivery schedules.

Any variation to web delivery date given will be advised to you by email or telephone. If we are unable to make delivery because access is not possible, we reserve the right to make a failed delivery charge.

Create a wishlist

"Great service"

gavin cox

Description

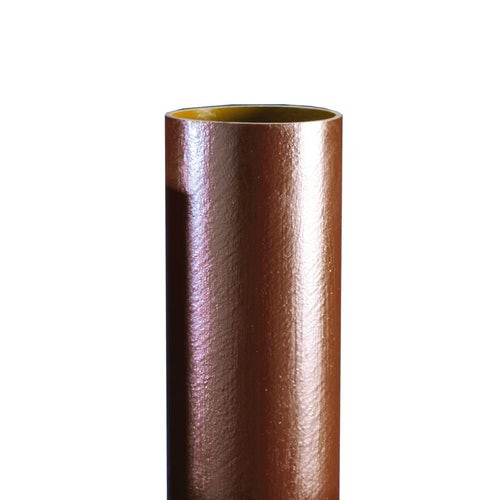

This Harmer SML Cast Iron Underground Drain Pipe is part of a sturdy and flexible dry-jointed pipework system that is easy to install and suited to various applications. It is lightweight yet durable, making it resistant to accidental external damage and vandalism, and eco-friendly with a recyclable cast iron structure.

With a choice of ductile or stainless steel couplings, the complete soil and waste pipework system covers installation from pipework connection to stack to underground sewer connection. It is compatible with rainwater installations alongside Harmer Roof Outlets with pipes in lengths of 3m and diameters ranging from 50mm to 400mm. You can construct your system using the twin screw couplings. Socketless fixing between pipe and fittings is easy but secure without special installation equipment.

Features & Benefits: Harmer SML Cast Iron Underground Drain Pipe

  • Lightweight but strong cast iron
  • High tensile strength
  • Easily assembled with socketless fixing
  • Resilient primer and epoxy coatings for low maintenance
  • Recyclable after use
  • System suited to various applications

The pipes and fittings from this system are crafted from grey iron to DIN 1691 (exceeds BS 1452 Grade 150 ISO 185 Grade 15), while the couplings feature stainless steel and ductile cast iron constructions. The pipes are coated with a primer (minimum thickness of 40 µm) on their exteriors and an epoxy coating (minimum thickness of 120 µm) on their interiors. Fittings, however, are coated both externally and internally with an epoxy coating (minimum thickness 60 µm). These epoxy coatings mean that pipes and fittings will only require minimal maintenance during their service life.

High in tensile strength and non-combustible to prevent the need for fire protection collars, Harmer SML stands as a cutting-edge cast iron technology, with BBA certification, full compliance with BS EN 877, Kitemark certification, and CE Mark conformity.

Standards & Certification

  • Meets British and European Standards: BS EN 877 and BS EN 14366; 2004 for excellent noise attenuation
  • Certification: BBA Agrément certified
  • CE Mark: European product conformity to harmonised standard BS EN 877 in accordance with Construction Products Regulation 2013
  • Kitemark Certification: in accordance with BS EN877

Dimensions

Length 3000mm

Details

Material Cast Iron Diameter 100mm
150mm
200mm
250mm
300mm
400mm
Pipe Diameter 100mm
150mm
200mm
250mm
300mm
400mm

Downloads

There are no product downloads to show.

Questions & Answers

Question:

What's the overall diameter of the pipe

Answer:

It has a 110mm O/D.

Question:

What is the outside diameter?

Answer:

For this product the 150mm is the internal size, and 160mm external.
