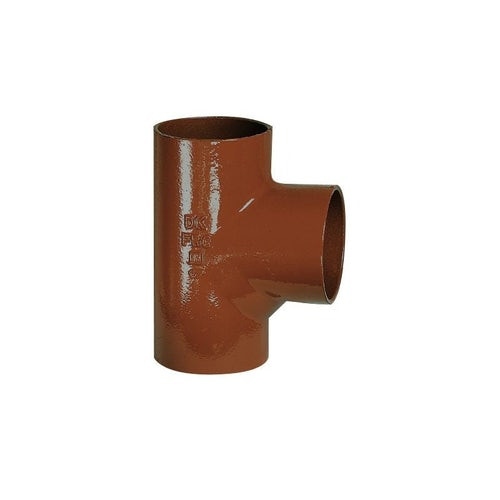

Harmer SML Cast Iron Underground Drain Pipe Branch

Code:
HARMER-SML-BRANCH
Brand:

The perfect addition to the Harmer SML dry-jointed pipework system, this Cast Iron Underground Drain Pipe Branch comes in numerous angle options to suit your installation needs. Easy to install and made from durable cast iron for recyclability after use, this branch provides r... Read More

from
£50.00 Incl. VAT
Earn points

SUPER Rewards Earn points and build more across our SUPERSTORES!

Find out more
Oops! Please select from the options
Delivery from: 3-5 Working Days
Shipping costs displayed in basket.
We can let you know when this product is back in stock.

This product is proving to be very popular and has unfortunately sold out.

Enter your email below and we'll notify you as soon as this product is back in stock:

For delivery Tuesday, Oct 8th - order in:
days hrs mins secs
Subject to stock availability, if products on a 24 hours service are ordered alongside products NOT on a 24 hours service, this may delay your whole order.
View Transport Policy

All delivery charges are included in the final shopping basket and are dependent on the products Scottish Highlands & the Islands where additional shipping charges will apply.

Please note that not all products will incur an additional delivery charge to the Scottish Highlands & the Islands – this is based on the costs from the manufacturer, distributor or courier providing shipping on our behalf. If your delivery address is in the Scottish Highlands and Islands, a member of our helpline team will contact you prior to processing your order should an additional delivery charge apply.

While we make every effort to ensure orders are delivered by the date required, we cannot guarantee availability from the manufacturer or the manufacturer's delivery schedules.

Any variation to web delivery date given will be advised to you by email or telephone. If we are unable to make delivery because access is not possible, we reserve the right to make a failed delivery charge.

Create a wishlist

"Very professional and a first clas…"

Chris Rundle

Description

The perfect addition to the Harmer SML dry-jointed pipework system, this Cast Iron Underground Drain Pipe Branch comes in numerous angle options to suit your installation needs. Easy to install and made from durable cast iron for recyclability after use, this branch provides resistance to accidental external damage and vandalism for a long-lasting solution.

The complete soil and waste pipework system boasts secure connections through twin screw couplings crafted from ductile and stainless steel, alongside socketless fixing between pipes and fittings, for effortless assembly free of specialised installation equipment. With pipe lengths of 3m and 50mm to 400mm diameters, the system facilitates installations from pipework connections to stack to underground sewer connections, as well as rainwater installations in conjunction with Harmer Roof Outlets.

Features & Benefits: Harmer SML Cast Iron Underground Drain Pipe Branch

  • Different angel options and pipe diameters available
  • Made from quality cast iron for a durable yet lightweight construction
  • Installation is easy and free of special equipment with socketless fixing
  • Includes primer and epoxy coatings for low maintenance
  • System is suited to a range of installations
  • High tensile strength

While couplings are constructed from stainless steel and ductile cast iron, the pipes and fittings are fashioned from grey iron to DIN 1691 (exceeding BS 1452 Grade 150 ISO 185 Grade 15). The fittings are further enhanced with epoxy coatings (minimum thickness of 60 µm) on the inside and the outside, minimising maintenance once installed. As for the pipes, interiors are also lined with epoxy coatings (minimum 120 µm thickness), while exteriors receive a coat of primer (minimum thickness of 40 µm).

Incorporating leading-edge cast iron technology, Harmer SML boasts a range of certifications, including BBA and Kitemark certification, adherence to CE Mark standards, and compliance with BS EN 877 standards. With high tensile strength, the system is not only exceptionally durable but also non-combustible, negating the requirement for fire protection collars.

Standards & Certification

  • Meets British and European Standards: BS EN 877 and BS EN 14366; 2004 for excellent noise attenuation
  • Certification: BBA Agrément certified
  • CE Mark: European product conformity to harmonised standard BS EN 877 in accordance with Construction Products Regulation 2013
  • Kitemark Certification: in accordance with BS EN877

Details

Material Cast Iron Diameter 100mm - 200mm
100mm - 150mm
150mm - 200mm
100mm
150mm
200mm
250mm
300mm
Angle 45 Degrees
88 Degrees
Pipe Diameter 100mm
100mm - 150mm
100mm - 200mm
150mm
150mm - 200mm
200mm
250mm
300mm
