Harmer Modular Stainless Steel Channel Drain Quattro Grating A15 - 1000mm

Product Code:
Est. Delivery: 2-3 Working Days
Shipping costs displayed in basket.
We can let you know when this product is back in stock.

This product is proving to be very popular and has unfortunately sold out.

Enter your email below and we'll notify you as soon as this product is back in stock:

Subject to stock availability, if products on a 24 hours service are ordered alongside products NOT on a 24 hours service, this may delay your whole order.

View Transport Policy

All delivery charges are included in the final shopping basket and are dependent on the products Scottish Highlands & the Islands where additional shipping charges will apply.

Please note that not all products will incur an additional delivery charge to the Scottish Highlands & the Islands – this is based on the costs from the manufacturer, distributor or courier providing shipping on our behalf. If your delivery address is in the Scottish Highlands and Islands, a member of our helpline team will contact you prior to processing your order should an additional delivery charge apply.

While we make every effort to ensure orders are delivered by the date required, we cannot guarantee availability from the manufacturer or the manufacturer's delivery schedules.

Any variation to web delivery date given will be advised to you by email or telephone. If we are unable to make delivery because access is not possible, we reserve the right to make a failed delivery charge.

Or call our friendly team on 01752 692 221

Product Description

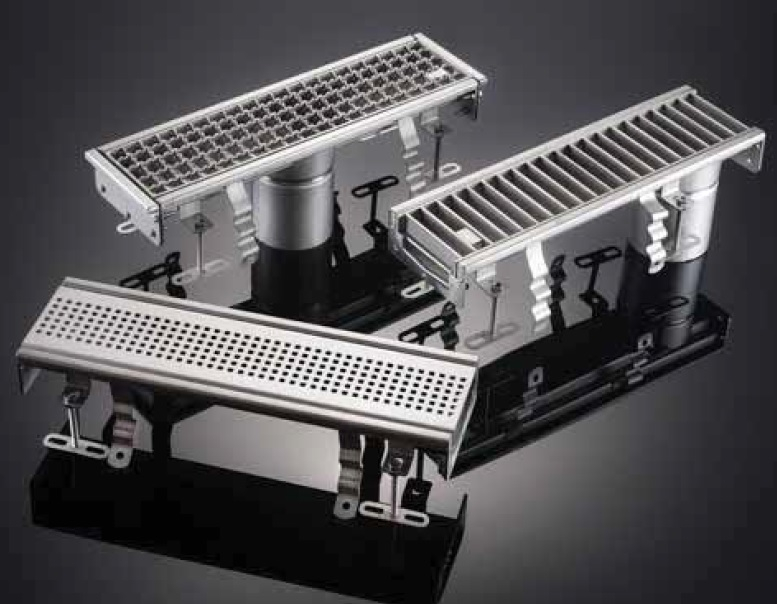

Harmer Modular 120 Stainless Steel linear floor drainage range, features a high performance modular channel options in a range of depths with a choice of grate finishes to suit all applications.

  • Available as standard in 304 grade but also available in 316 grade stainless steel.
  • All stainless steel is fully pickle passivated to ensure high quality corrosion free joints.
  • Available in a choice of 3 grate finishes (Anti-slip, Quattro & Ladder) depending on design and load class requirements to BS EN 1433 – A15 (15 kN) & C250 (250 kN).
  • Synthetic edge filling to meet C250kn load class requirement.
  • Channels are available in 1000mm or 500mm lengths with or with our outlets (centre & end).
  • Constant depth and sloping depth available.
  • Available in a range of depths from 50mm depth to 100mm depth.


Length: 1000mm

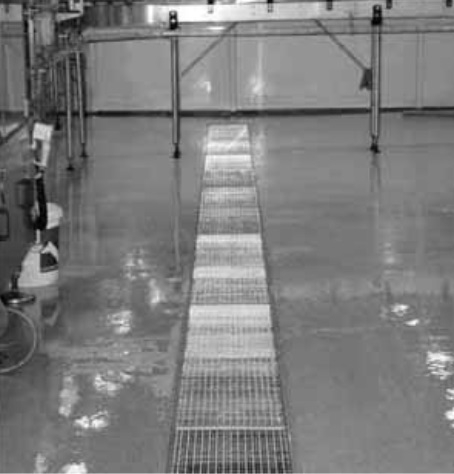

  • Modular 120 is suitable for a wide range of applications, including Food Production & Processing, Professional Kitchens, Breweries, Retail, Chemical & Pharmaceutical and School & Leisure.
  • Off the shelf stocked product range.
  • Designed to drain high volumes of water and waste.


  • Suitable for Tiled, Resin or concrete floor applications
  • The channels are equipped with concrete anchor tabs and levelling feet
  • Each channel section is jointed using bolted flange plates, with a neoprene gasket to ensure a water-tight seal
  • Channels are available with closing end plates

Fully tested and classified to BS EN 1433.

Product Documents

There are no product downloads to show.


LENGTH 1000mm


Material Stainless Steel Weight Class A15
