Harmer Aluminium Horizontal Drain with Stainless Steel Clamp & Ring Grate - Sheet Floor

Code:
AHS/RS
Brand:

Suitable for timber and concrete floor applications, this aluminium horizontal shower drain features a stainless steel clamp with a ring drain grate cap. It's lightweight, durable strong thanks to the use of LM6 aluminium alloy in its manufacturing, as well as a polyester powd... Read More

£230.00 Incl. VAT
Earn points

SUPER Rewards Earn points and build more across our SUPERSTORES!

Find out more
Oops! Please select from the options
Est. Delivery: 3-5 Working Days
Shipping costs displayed in basket.
We can let you know when this product is back in stock.

This product is proving to be very popular and has unfortunately sold out.

Enter your email below and we'll notify you as soon as this product is back in stock:

For delivery Tuesday, Oct 8th - order in:
days hrs mins secs
Subject to stock availability, if products on a 24 hours service are ordered alongside products NOT on a 24 hours service, this may delay your whole order.
View Transport Policy

All delivery charges are included in the final shopping basket and are dependent on the products Scottish Highlands & the Islands where additional shipping charges will apply.

Please note that not all products will incur an additional delivery charge to the Scottish Highlands & the Islands – this is based on the costs from the manufacturer, distributor or courier providing shipping on our behalf. If your delivery address is in the Scottish Highlands and Islands, a member of our helpline team will contact you prior to processing your order should an additional delivery charge apply.

While we make every effort to ensure orders are delivered by the date required, we cannot guarantee availability from the manufacturer or the manufacturer's delivery schedules.

Any variation to web delivery date given will be advised to you by email or telephone. If we are unable to make delivery because access is not possible, we reserve the right to make a failed delivery charge.

Create a wishlist

"Fast and straightforward"

Rod Gazzard

Description

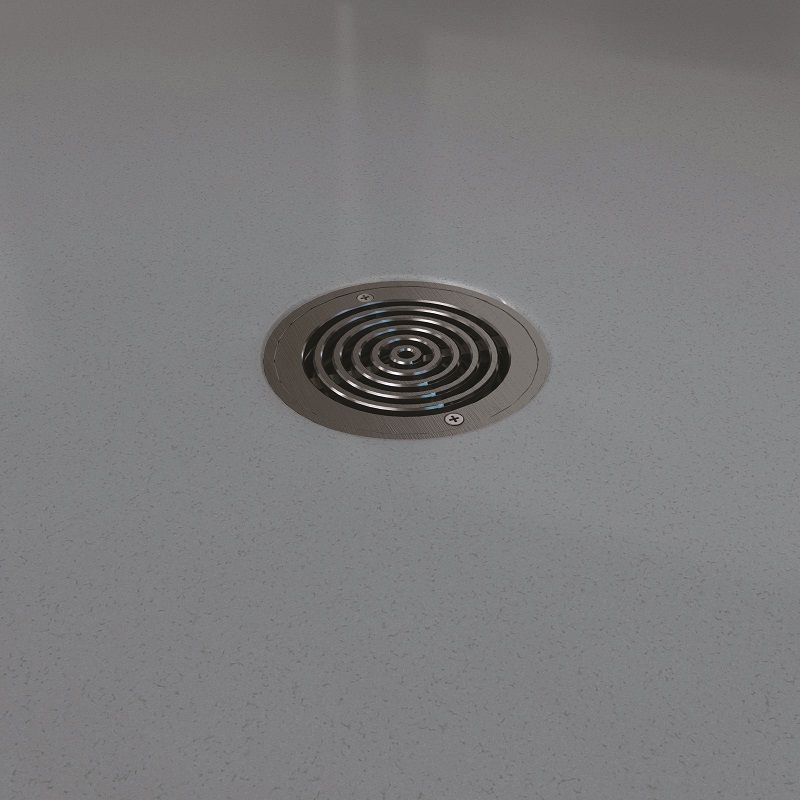

Suitable for timber and concrete floor applications, this aluminium horizontal shower drain features a stainless steel clamp with a ring drain grate cap. It's lightweight, durable strong thanks to the use of LM6 aluminium alloy in its manufacturing, as well as a polyester powder coating for increased protection.

This aluminium shower drain offers a flow rate of up to 0.8 litres a second. The horizontal Harmer shower is also compatible with 56mm cast iron, HDPE and PVC pipes, with an integral fall in the sump to prevent silt collection. For cleaning, replacements or access to the removable 50mm trap below, the drain cap can be easily removed to ensure straightforward maintenance.

Features & Benefits: Harmer Aluminium Horizontal Drain with Stainless Steel Clamp & Ring Grate - Sheet Floor

  • Stainless steel clamp with a ring drain grate cap
  • Suitable for timber and concrete floors with flexible sheet flooring
  • Ring grate cap style
  • 0.8 litres per second flow rate
  • K3 to BS EN 1253 load class
  • High corrosion resistance
  • Manufactured from 100% recyclable aluminium
  • Manufactured to BS EN 1253 requirements of design, flow and load testing
  • Greater impact resistance

For unique designs, these drains are completed by a range of attractive caps and grates in stainless steel, nickel bronze and aluminium for tiled and sheet flooring.

Quality is reassured by the drain's manufacturing to specifically meet the requirements of British and European standard BS EN 1253 for design, flow performance and loading. The design does not compromise the room's aesthetics, providing an attractive and efficient shower drain. The bodies of the drains are manufactured from 100% recycled aluminium. Thanks to this, they can be recycled once again at the end of their life cycle. The drains can also withstand up to 300kg of vertical loading.

Harmer Aluminium Horizontal Drain Contents

  • 1 x ring grate drain cap
  • Stainless steel screws
  • 1 x stainless steel clamp
  • Clamp screws
  • 1 x 50mm foul air trap (FAT)
  • 1 x two-inch outlet horizontal drain body

Standards & Certification

  • Loading, flow performance and design: Meets the requirements of British and European standard BS EN 1253

Please note:

  • Option available to order security fixings for drain caps in areas where the cap may otherwise be tampered with.

Details

Material Aluminium
Stainless Steel
Product Type Shower Drain Weight Class K3 Type Domestic
Application Concrete
Timber
