Harmer Aluminium Vertical Drain White Clamp & Pebble Cap 200mm x 200mm - Tile Floor

Code:
AVS/WH/T20
Brand:

This Harmer vertical shower drain is fabricated from LM6 aluminium alloy and coated with a polyester powder layer for enhanced protection. Completed with a white PPC aluminium clamp, pebble drain cap and 200mm x 200mm tile frame, it can endure up to 300kg of vertical loading. W...Read More

£170.00 Incl. VAT
Oops! Please select from the options
Est. Delivery: 3-5 Working Days
Shipping costs displayed in basket.
We can let you know when this product is back in stock.

This product is proving to be very popular and has unfortunately sold out.

Enter your email below and we'll notify you as soon as this product is back in stock:

For delivery Wednesday, Apr 3rd - order in:
days hrs mins secs
Subject to stock availability, if products on a 24 hours service are ordered alongside products NOT on a 24 hours service, this may delay your whole order.
View Transport Policy

All delivery charges are included in the final shopping basket and are dependent on the products Scottish Highlands & the Islands where additional shipping charges will apply.

Please note that not all products will incur an additional delivery charge to the Scottish Highlands & the Islands – this is based on the costs from the manufacturer, distributor or courier providing shipping on our behalf. If your delivery address is in the Scottish Highlands and Islands, a member of our helpline team will contact you prior to processing your order should an additional delivery charge apply.

While we make every effort to ensure orders are delivered by the date required, we cannot guarantee availability from the manufacturer or the manufacturer's delivery schedules.

Any variation to web delivery date given will be advised to you by email or telephone. If we are unable to make delivery because access is not possible, we reserve the right to make a failed delivery charge.

Create a wishlist

"Delivered on time"

Stuart

Description

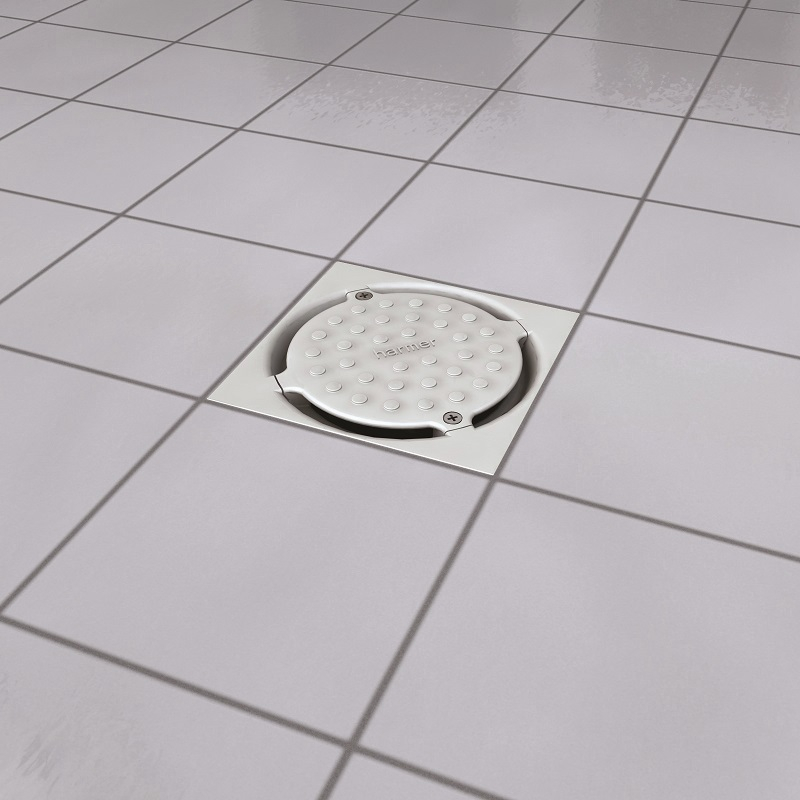

This Harmer vertical shower drain is fabricated from LM6 aluminium alloy and coated with a polyester powder layer for enhanced protection. Completed with a white PPC aluminium clamp, pebble drain cap and 200mm x 200mm tile frame, it can endure up to 300kg of vertical loading.

With an impressive flow rate of up to 1.3 litres per second, this vertical shower drain from Harmer is lightweight yet robust and sturdy. Perfectly suited for timber and concrete floor applications, including suspended floors where shallow invert pipes are specified, it is ideal for use on tiled flooring. The drain cap is simple to remove so it can be cleaned, replaced or to give access to the removable 50mm foul air trap beneath. Compatible with 56mm cast iron, PVC and HDPE pipes, this shower drain body also easily push fits into 110mm ring seal pipe sockets.

Features & Benefits: Harmer Aluminium Vertical Drain White Clamp & Pebble Cap 200mm x 200mm - Tile Floor

  • 1.3 litres per second flow rate
  • High resistance to corrosion
  • Suitable for concrete and timber floor applications
  • K3 Load Class to BS EN 1253
  • Lightweight yet strong and durable
  • Ideal for tiled flooring
  • Fabricated from LM6 aluminium alloy with a protective polyester powder layer
  • White PPC pebble drain cap

Meeting the requirements of British and European standard BS EN 1253 for design, loading and flow performance, this Harmer aluminium shower drain delivers an efficient yet aesthetically pleasing solution for your shower drainage needs. Produced from 100% recycled aluminium, it is completely recyclable once again after it has finished its lifecycle. The LM6 aluminium alloy used to construct the drain body can withstand general atmospheric settings and marine environments due to its excellent resistance to corrosion.

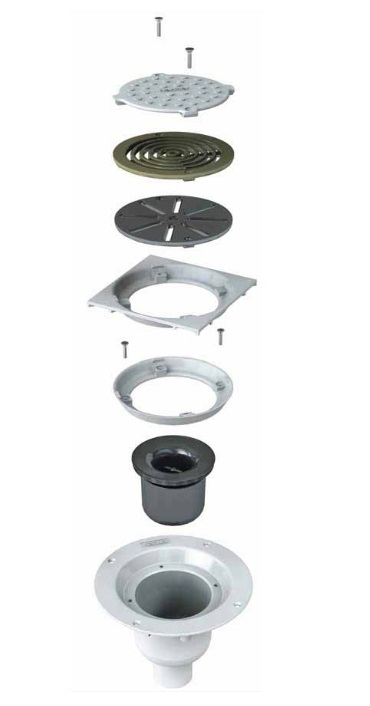

Harmer Aluminium Vertical Drain Contents

  • 1 x pebble drain cap
  • 1 x 200mm x 200mm tile frame
  • 1 x white PPC aluminium clamp
  • Clamp screws
  • 1 x 50mm foul air trap (FAT)
  • 1 x vertical drain body
  • Stainless steel screws

Please note:

  • There is an option available to order security fixings for drain caps in areas where the cap may otherwise be tampered with. Contact us for more information.

Details

Material Aluminium Product Type Shower Drain Floor Type Tiled Flooring Application Concrete
Floors
Timber
