Harmer Aluminium Vertical Drain Stainless Steel Clamp & Star Grate 200mm x 200mm - Tile Floor

Code:
AVS/SS/T20
Brand:

This item is out of stock and not available to purchase.

From Harmer's range of LM6 aluminium alloy shower drains, this vertical shower drain comes with a stainless steel clamp, a star drain grate and a 200mm x 200mm tile frame. The easy-to-clean and replace removable cap lets you access the 50mm trap below. With a protective polyes... Read More

£275.00 Incl. VAT
Earn points

SUPER Rewards Earn points and build more across our SUPERSTORES!

Find out more
Oops! Please select from the options
Est. Delivery: TBC
Shipping costs displayed in basket.
We can let you know when this product is back in stock.

This product is proving to be very popular and has unfortunately sold out.

Enter your email below and we'll notify you as soon as this product is back in stock:

Subject to stock availability, if products on a 24 hours service are ordered alongside products NOT on a 24 hours service, this may delay your whole order.
Create a wishlist

"Very quick delivery"

Oliver wakefield

Description

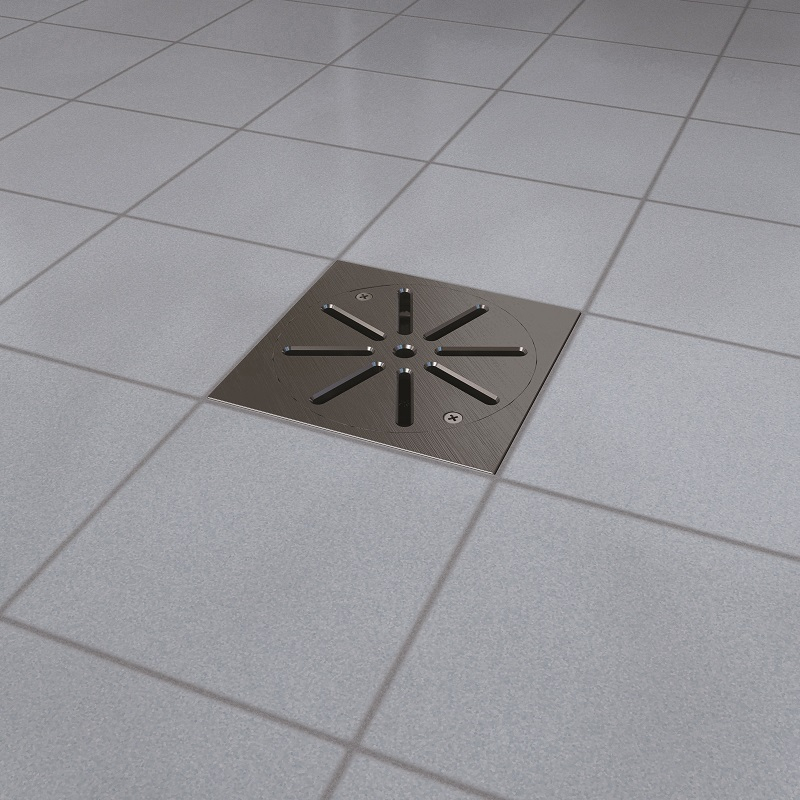

From Harmer's range of LM6 aluminium alloy shower drains, this vertical shower drain comes with a stainless steel clamp, a star drain grate and a 200mm x 200mm tile frame. The easy-to-clean and replace removable cap lets you access the 50mm trap below.

With a protective polyester powder coating, your drain will be highly resilient and corrosion-resistant. Harmer's variety of vertical shower drain bodies works well with 110mm ring seal pipe sockets via push-fit connections. They also pair well with HDPE, cast iron and PVC 56mm pipes. For tiled and sheet flooring, the range comes accompanied by nickel bronze, stainless steel, or aluminium caps and grates.

Features & Benefits: Harmer Aluminium Vertical Drain Stainless Steel Clamp & Star Grate 200mm x 200mm - Tile Floor

  • Endures 300kg of vertical loading
  • Includes a star drain grate
  • Made from LM6 aluminium alloy
  • Resists corrosion in marine and general atmospheric conditions
  • Protective polyester powder coatings
  • K3 Load Class (BS EN 1253)
  • Attractive and durable
  • Can be recycled once life cycle is complete
  • 0.8 litres per second flow rate

Compatible with numerous timber and concrete floor applications, and with suspended floors that need shallow invert pipes, Harmer aluminium shower drains provide flow rates of up to 1.3 litres a second.

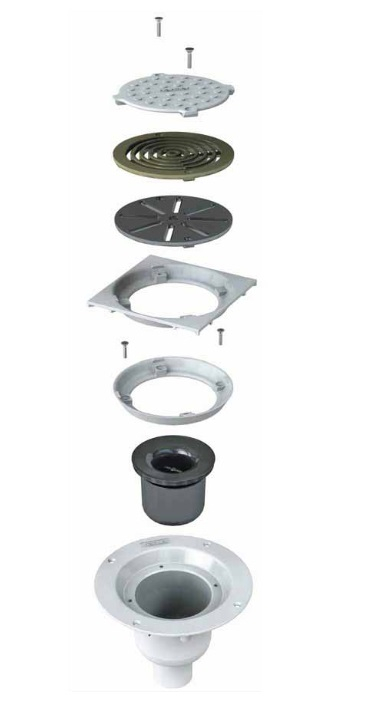

Harmer Aluminium Vertical Drain Contents

  • 1 x star pattern grate drain cap
  • 1 x 200mm x 200mm tile frame
  • 1 x stainless steel clamp
  • Clamp screws
  • 1 x 50mm foul air trap (FAT)
  • 1 x vertical drain body
  • Stainless steel screws

Standards & Certification

  • Meet the British and European standard BS EN 1253 in design, flow and loading

Please note:

  • Security fixings option available for drain caps in areas where the cap may otherwise be tampered with. Contact our sales team for information.

Details

Material Aluminium
Stainless Steel
Product Type Shower Drain Weight Class K3 Floor Type Tiled Flooring
Type Domestic Application Concrete
Floors
Timber
